Dahua KTP03-S2 IP Video Intercom Kit — VTO2111D-P-S3 Door Station & 7″ Monitor
Complete Dahua IP Video Intercom Kit · Card Unlock · Black or White Monitor
A complete smart-entry kit for Australian homes, villas, offices and small business. It pairs the VTO2111D-P-S3 IP villa door station — with built-in card reader, IR night vision and a wide 107° view — with a 7-inch touchscreen monitor in your choice of black or white and a 4-port PoE switch. See and speak to visitors, unlock by card, monitor or DMSS app, and run the whole system over one network cable. Genuine Dahua, Australian stock and local support.
Why Choose This Dahua KTP03-S2 Intercom Kit
One Complete Kit
Door station, monitor and PoE switch are matched and bundled — no compatibility guesswork, just connect and configure.
Black or White Monitor
Pick the black VTH2621G-P for modern or commercial interiors, or white VTH2621GW-P to blend into bright walls.
Card Reader Built In
The VTO2111D-P-S3 stores up to 10,000 cards for fast, keyless entry — ideal for family, staff and regular visitors.
Three Ways To Unlock
Open the door by IC card at the panel, from the indoor monitor, or remotely through the DMSS app — and it controls two locks.
Clear Day & Night
A 2MP HD camera with WDR and auto IR delivers a wide 107° view and dependable low-light visitor identification.
Clean PoE Install
The included 4-port PoE switch powers and connects the system over network cable — cleaner wiring, fewer plugs.

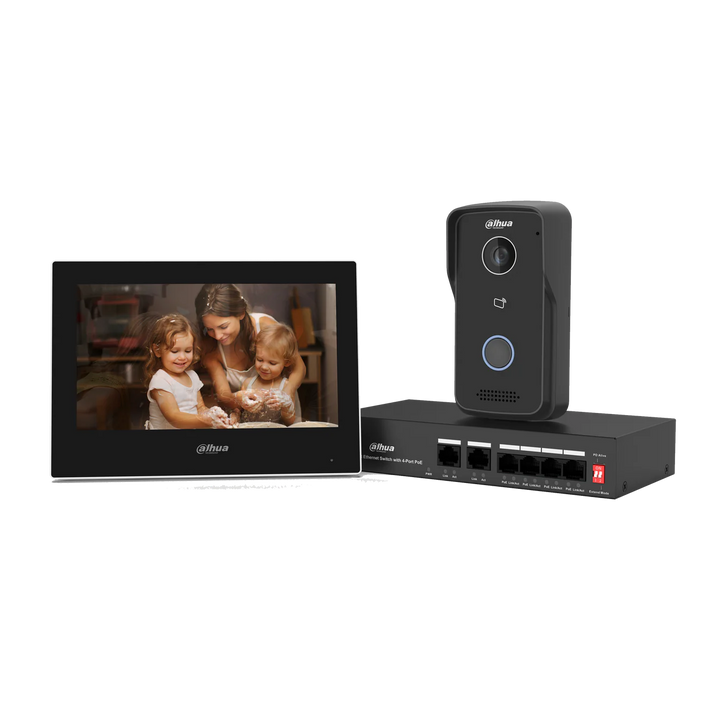

What's In The Box

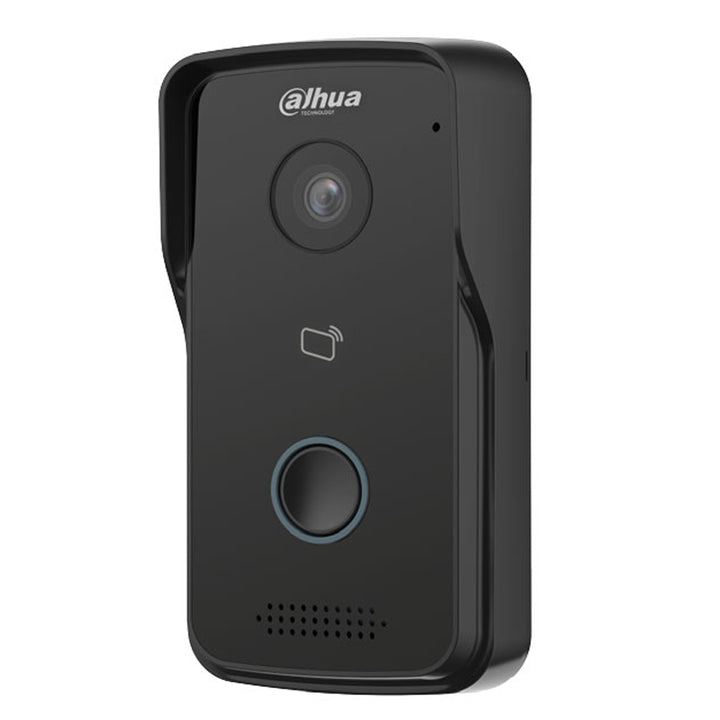

1 × IP Villa Door Station — VTO2111D-P-S3
2MP HD camera with WDR and auto IR, 107° wide view, two-way audio, card / app / monitor unlock (10,000 cards), controls two locks, tamper alarm, PoE, surface mount, IP65 (sealed) / IK04.

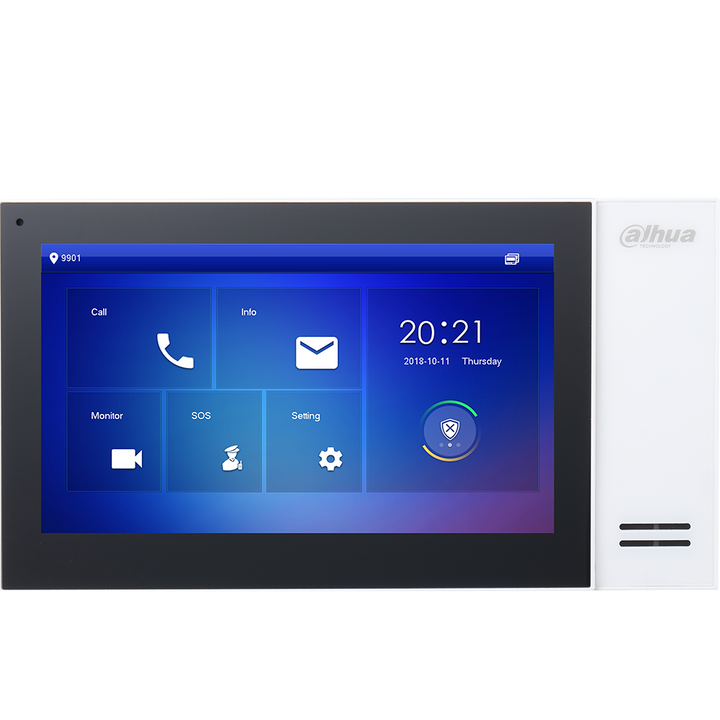

1 × 7″ Indoor Monitor — Black or White
VTH2621G-P (black) or VTH2621GW-P (white). 7-inch capacitive touchscreen (1024×600), two-way voice, door-station and IP camera monitoring, 6 alarm inputs / 1 output, H.265, standard PoE.

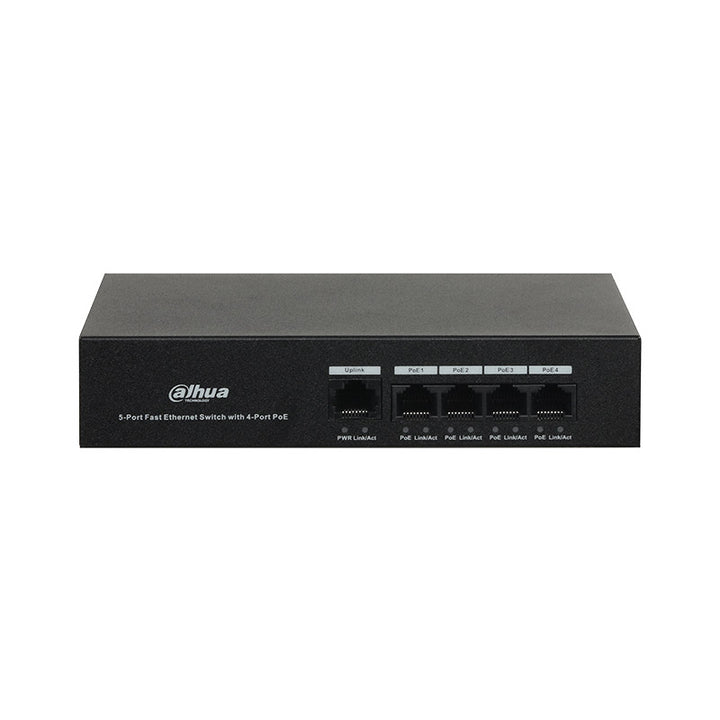

1 × 4-Port PoE Switch — DH-PFS3006-4ET-36
Compact Dahua PoE switch with 4 PoE ports and 2 uplink ports to power and connect the intercom cleanly over network cabling.
Ready To Install
A clean, professional intercom backbone in one purchase. Door lock, exit button and cabling are selected separately to suit your door.
Technical Specifications
| Camera | 1/2.8″ 2MP CMOS, low illumination, DWDR |
| Field of View | H 107° · V 60° · D 122° |
| Night Vision | Auto IR, day/night |
| Audio | Two-way with echo & noise reduction |
| Unlock | Card, app and indoor monitor |
| Card Capacity | 10,000 cards |
| Lock Control | Controls two locks · 1 port (NC default) |
| Video Coding | H.264 / H.265 |
| Power | 12 VDC 1A or standard PoE |
| Protection | IP65 (sealed) & IK04 · tamper alarm |
| Mounting | Surface mount |
| Screen | 7-inch TFT capacitive touchscreen |
| Resolution | 1024 × 600 |
| Audio | Two-way voice with built-in speaker |
| Monitoring | Door station & Dahua IP cameras |
| Alarm I/O | 6 inputs / 1 output |
| Video Decoding | H.265 & H.264 |
| Storage | microSD up to 64GB (reserved for software) |
| Power | 12 VDC 1A or standard PoE |
| Colour | Black (VTH2621G-P) or White (VTH2621GW-P) |
| PoE Ports | 4 × 10/100 Mbps PoE |
| Uplink Ports | 2 × 10/100 Mbps |
| Certifications | CE, FCC |
| Housing | Compact desktop, black |
