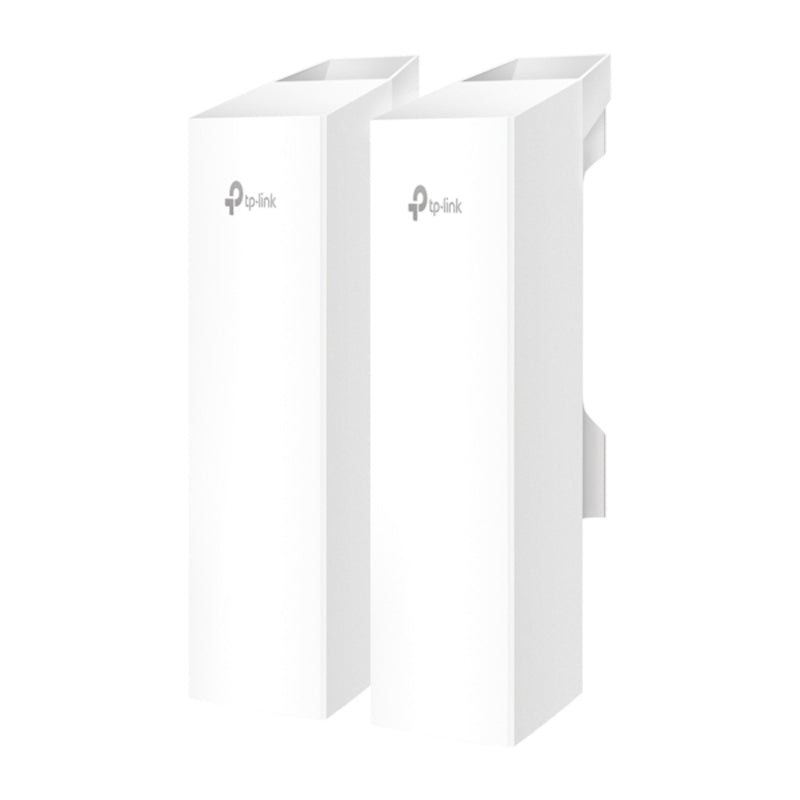

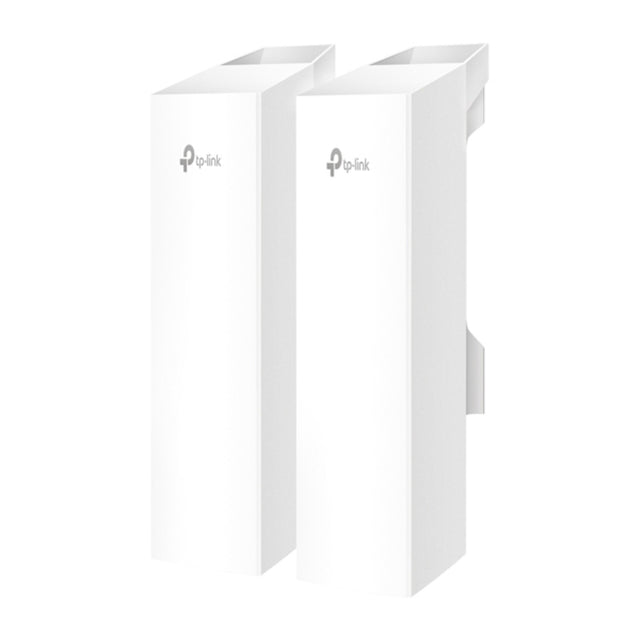

TP-Link Omada EAP211-Bridge KIT 5GHz 867Mbps Wireless Bridge – Indoor/Outdoor

TP-Link Omada EAP211-Bridge KIT 5GHz Wireless Bridge

The TP-Link Omada EAP211-Bridge KIT is a versatile 5GHz wireless networking solution designed to connect locations where running Ethernet or fibre cabling is difficult, costly, or impractical. With wireless speeds of up to 867 Mbps and a stated transmission distance of up to 1 km, it is well suited to building-to-building links, CCTV installations, farms, warehouses, car parks and other remote networking applications.

Built for both indoor and outdoor deployment, the EAP211-Bridge KIT combines a directional 5GHz antenna system with 3 Gigabit Ethernet ports, allowing multiple wired network devices to be connected at the remote location.

The kit also features automatic pairing and LED signal indicators, helping installers establish and align the wireless link more efficiently. With IP65 weather protection, 6kV lightning protection and Passive PoE support, it is designed for demanding network installations where reliability and flexible deployment are important.

Key Features

• 5GHz Wi-Fi 5 Connectivity – Supports IEEE 802.11ac wireless technology with link rates of up to 867 Mbps.

• Up to 1km Wireless Transmission – Designed for long-distance point-to-point connectivity under suitable line-of-sight conditions.

• 3 × Gigabit Ethernet Ports – Connect IP cameras, NVRs, switches and other Ethernet-enabled equipment.

• Auto-Pairing – Helps simplify initial bridge setup and deployment.

• LED Signal Indicators – Makes antenna alignment and wireless link setup easier for installers.

• 2×2 Directional MIMO Antennas – Internal dual-polarised antennas provide focused wireless connectivity.

• IP65 Weatherproof Housing – Suitable for appropriate outdoor installations.

• 6kV Lightning Protection – Provides additional protection for outdoor network deployments.

• Passive PoE Support – Flexible installation with the included Passive PoE adapter.

• Omada Management Support – Compatible with Omada management solutions for centralised monitoring and administration.

• Indoor & Outdoor Use – Suitable for a wide range of commercial, residential and industrial network applications.

Extend Your Network Without Long Cable Runs

The EAP211-Bridge KIT provides a convenient way to establish a wireless connection between two locations without installing a dedicated Ethernet or fibre cable between them.

It can be used to connect a remote network to a main building, allowing devices at the secondary location to access the wider network through the wireless bridge.

Typical applications include:

• Building-to-building network connections

• Remote CCTV and IP camera installations

• Farm and rural property networking

• Warehouse and industrial sites

• Car park surveillance

• Construction site monitoring

• School and campus network extensions

• Remote offices and outbuildings

• Temporary network deployments

High-Speed 5GHz Wireless Performance

Using IEEE 802.11ac technology on the 5GHz band, the EAP211-Bridge supports a maximum wireless link rate of 867 Mbps.

The 5GHz operating band combined with directional antenna technology makes the system suitable for point-to-point connections where focused wireless communication is required.

Actual wireless throughput will depend on distance, line of sight, interference, environmental conditions, network traffic and connected equipment.

3 Gigabit Ethernet Ports

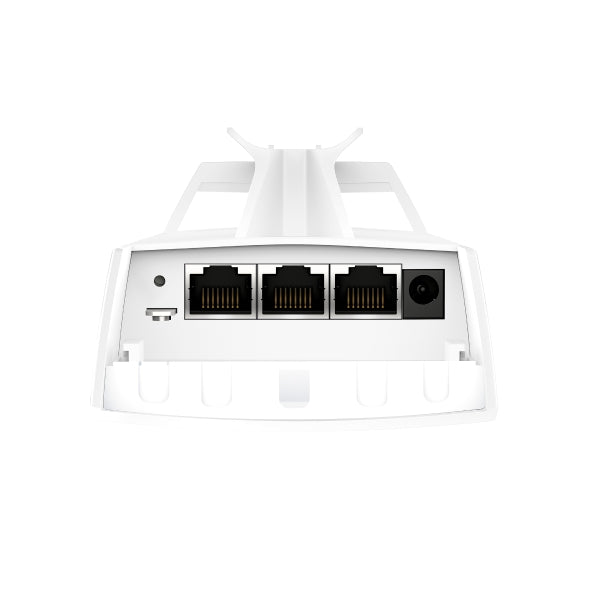

Each bridge unit provides three 10/100/1000 Mbps Gigabit Ethernet ports, giving you additional flexibility when connecting equipment at the remote end of the wireless link.

This can be particularly useful for CCTV installations where several IP cameras or other Ethernet devices need to be connected.

Compatible equipment may include:

• IP cameras

• NVRs

• Network switches

• Computers

• Access points

• Other Ethernet-enabled devices

Easy Deployment and Wireless Alignment

The auto-pairing function helps reduce the time required to establish the wireless bridge connection.

During installation, the built-in LED signal indicators can assist with positioning and alignment of the bridge units, helping installers achieve a suitable wireless connection.

The included pole-mounting accessories provide a practical installation option for appropriate outdoor deployments.

Built for Outdoor Installations

The EAP211-Bridge KIT features an IP65-rated enclosure, providing protection against dust and water ingress for suitable outdoor installations.

It also incorporates 6kV lightning protection, providing an additional layer of protection for outdoor network equipment.

For best performance and protection, the units should be installed according to TP-Link's installation requirements and positioned where they have an appropriate line of sight.

Flexible Power Options

The EAP211-Bridge supports 12V DC and 24V Passive PoE, providing flexibility when planning the installation.

A Passive PoE adapter is included, helping simplify deployment where compatible PoE power delivery is preferred.

Omada Management

For installations using the Omada ecosystem, the EAP211-Bridge supports centralised management through compatible Omada controllers and software.

Supported management options include:

• Omada Hardware Controllers

• Omada Software Controller

• Omada Cloud-Based Controller

• Omada App

• Web-based management

• SNMP management

• SSH management

• Firmware updates via web interface

• Email alerts

• Zero-Touch Provisioning

Cloud access requires a compatible Omada controller or supported Omada cloud management solution.

Technical Specifications

What's Included

• TP-Link Omada EAP211-Bridge KIT

• Wireless bridge units

• Passive PoE adapter

• Pole-mounting accessories

• Installation accessories

Important Information

*The stated 1 km transmission distance represents a maximum reference distance under suitable conditions. Actual performance depends on line of sight, antenna alignment, installation height, interference, environmental conditions and network configuration.

The 867 Mbps figure represents the maximum theoretical wireless link rate and should not be interpreted as guaranteed real-world data throughput.

For long-distance point-to-point installations, both bridge units should be positioned with a clear and suitable line of sight and correctly aligned for optimal performance.
