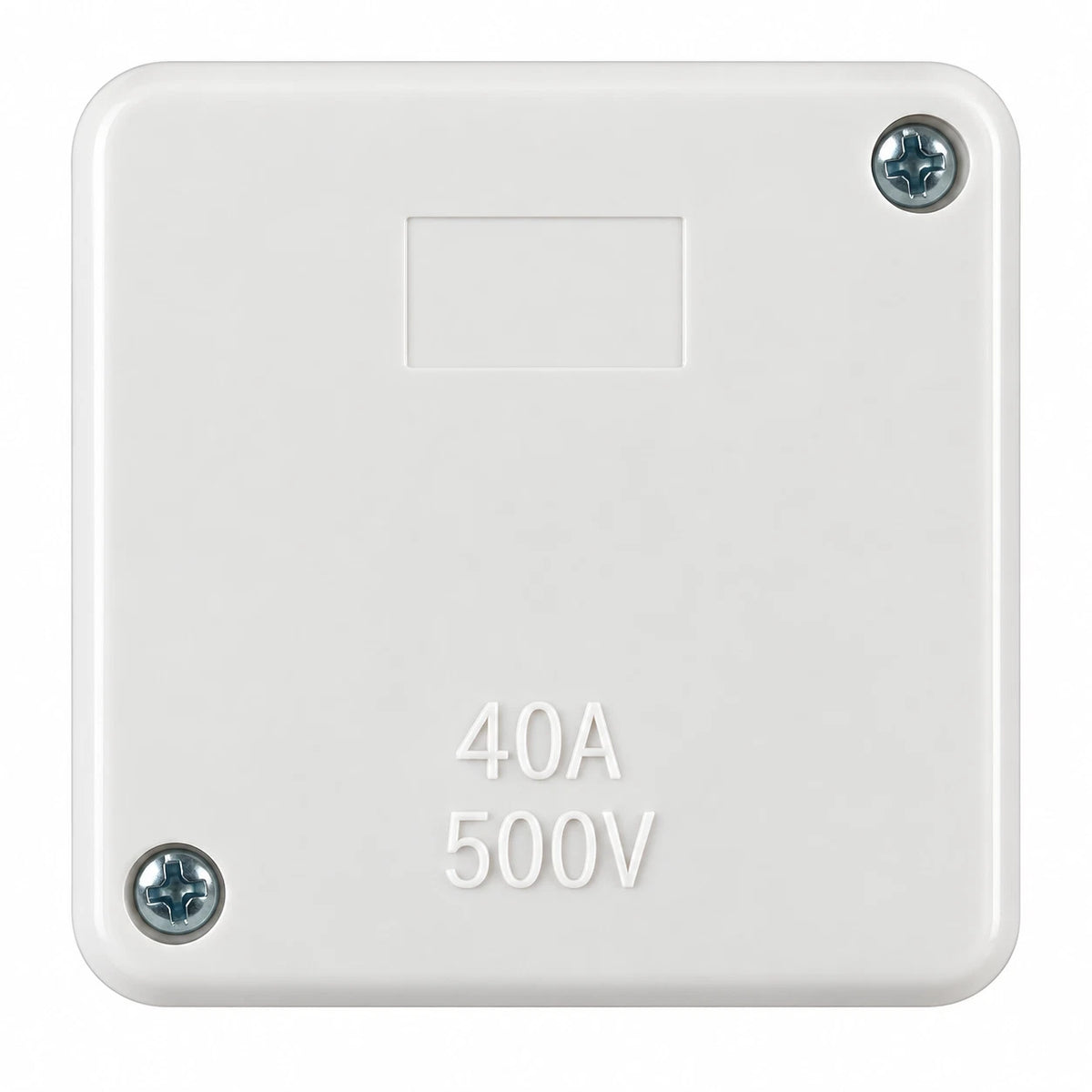

Small Junction Box with Screw Connector – 40A 500V
Small Junction Box with Screw Connector – 40A 500V - 5 is backordered and will ship as soon as it is back in stock.
Highlight title
Text to highlight a key feature of your product
Description
Description

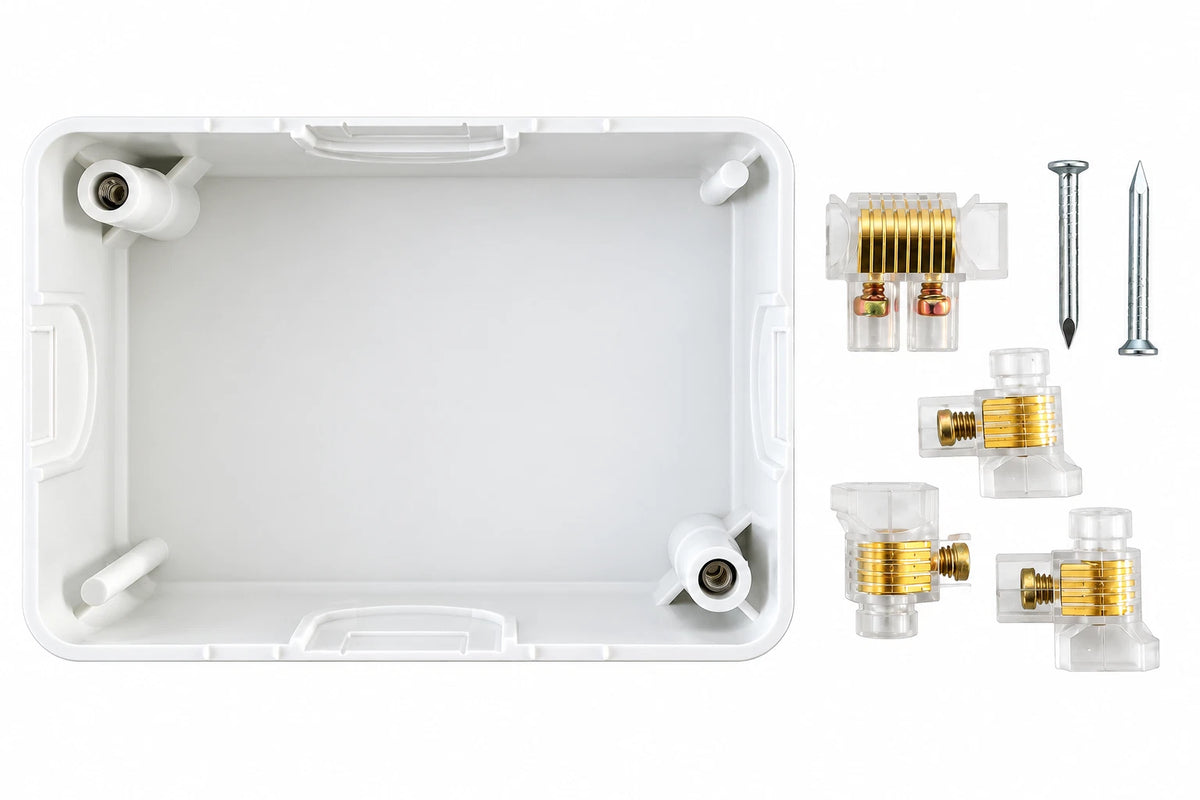

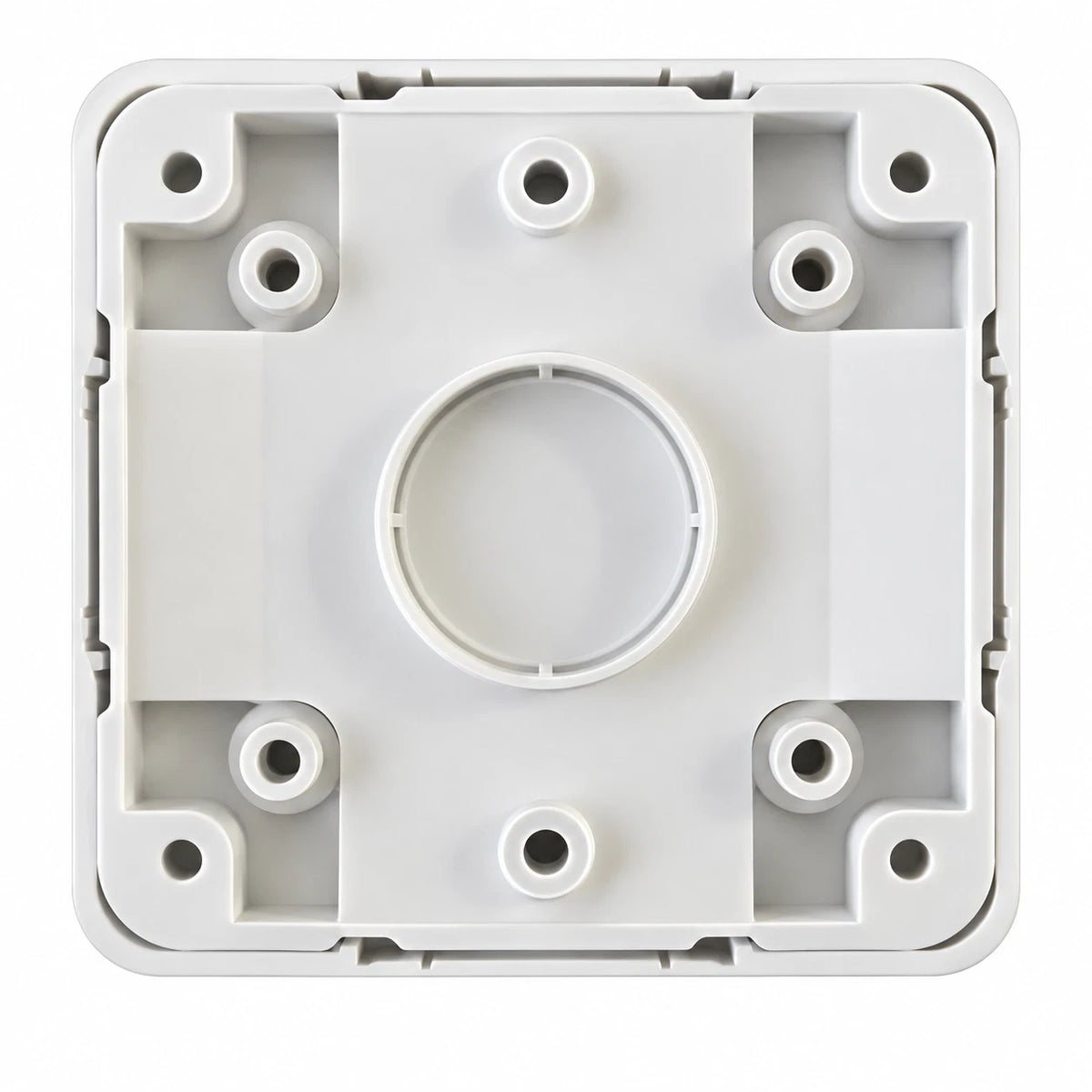

The Small Junction Box with Screw Connector provides a compact solution for joining, extending, branching or terminating electrical cable connections. With a 40A current rating and 500V voltage rating, it is designed for use in a range of standard AC power circuit and wiring applications.
The integrated screw terminal connector allows wires to be securely terminated without soldering, while the compact enclosure is suited to installations where space is limited, including wall cavities and ceiling voids.
Key Features
- 40A rated current
- 500V rated voltage
- Integrated screw terminal connector
- Secure wire termination without soldering
- Compact design for space-conscious installations
- Suitable for wall cavities and ceiling voids
- Enclosure helps protect wire connections from damage and accidental contact
- Suitable for joining, extending and branching cable runs
Product Specifications
| Specification | Details |
|---|---|
| Product Type | Small Junction Box with Screw Connector |
| Rated Current | 40A |
| Rated Voltage | 500V |
| Connector Type | Screw Terminal Connector |
| Design | Compact |
| Application | Electrical cable joining, extending, branching and termination |
Suitable Applications
This compact junction box is suitable for electricians and installers working on:
- Electrical cable connections
- Joining and extending wiring runs
- Branching cable runs
- Terminating electrical wiring
- Switchboards
- Ceiling spaces
- Wall cavities
- General electrical wiring applications
- Residential installations
- Commercial installations
- Light industrial installations
What's Included
- 1 × Small Junction Box with Screw Connector – 40A 500V
