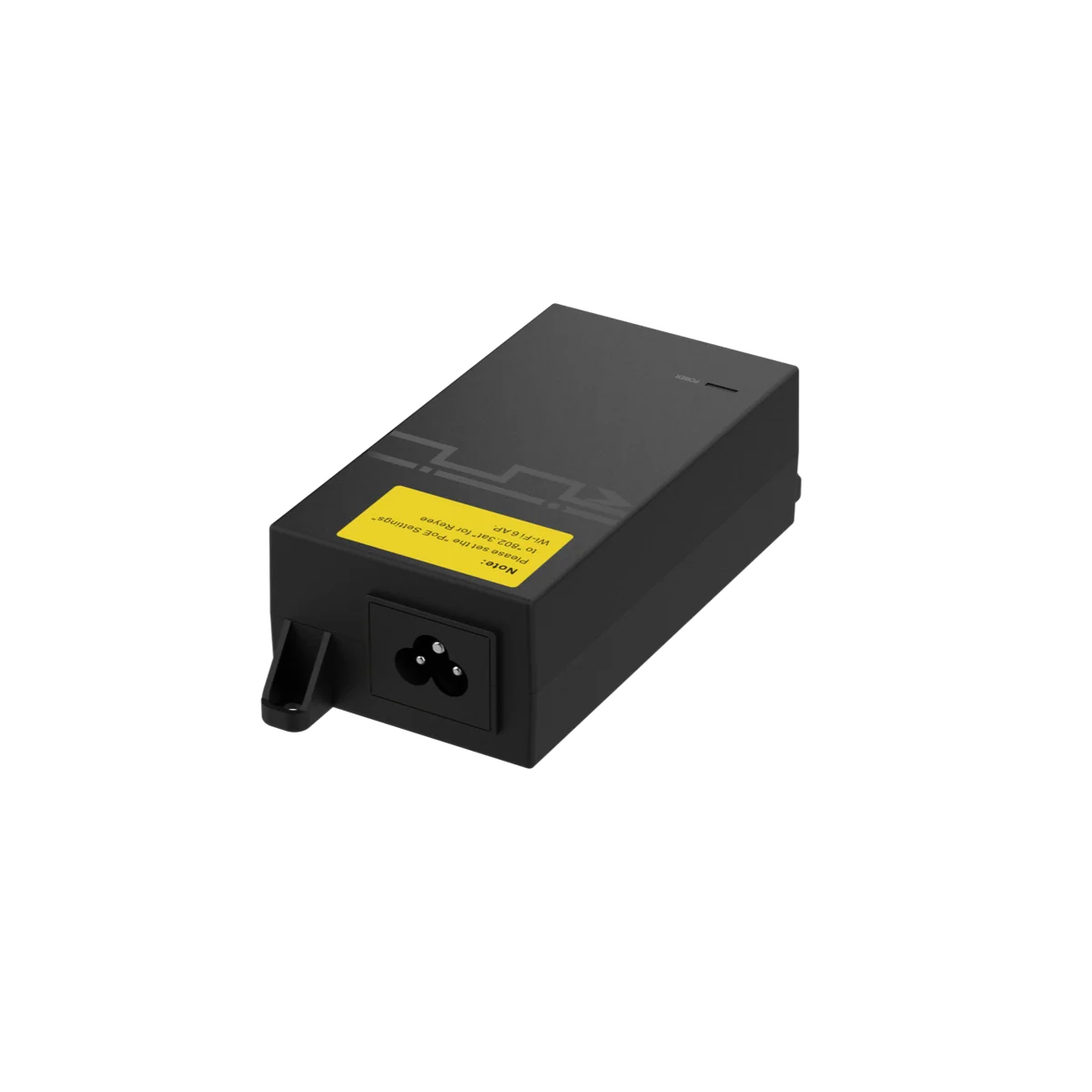

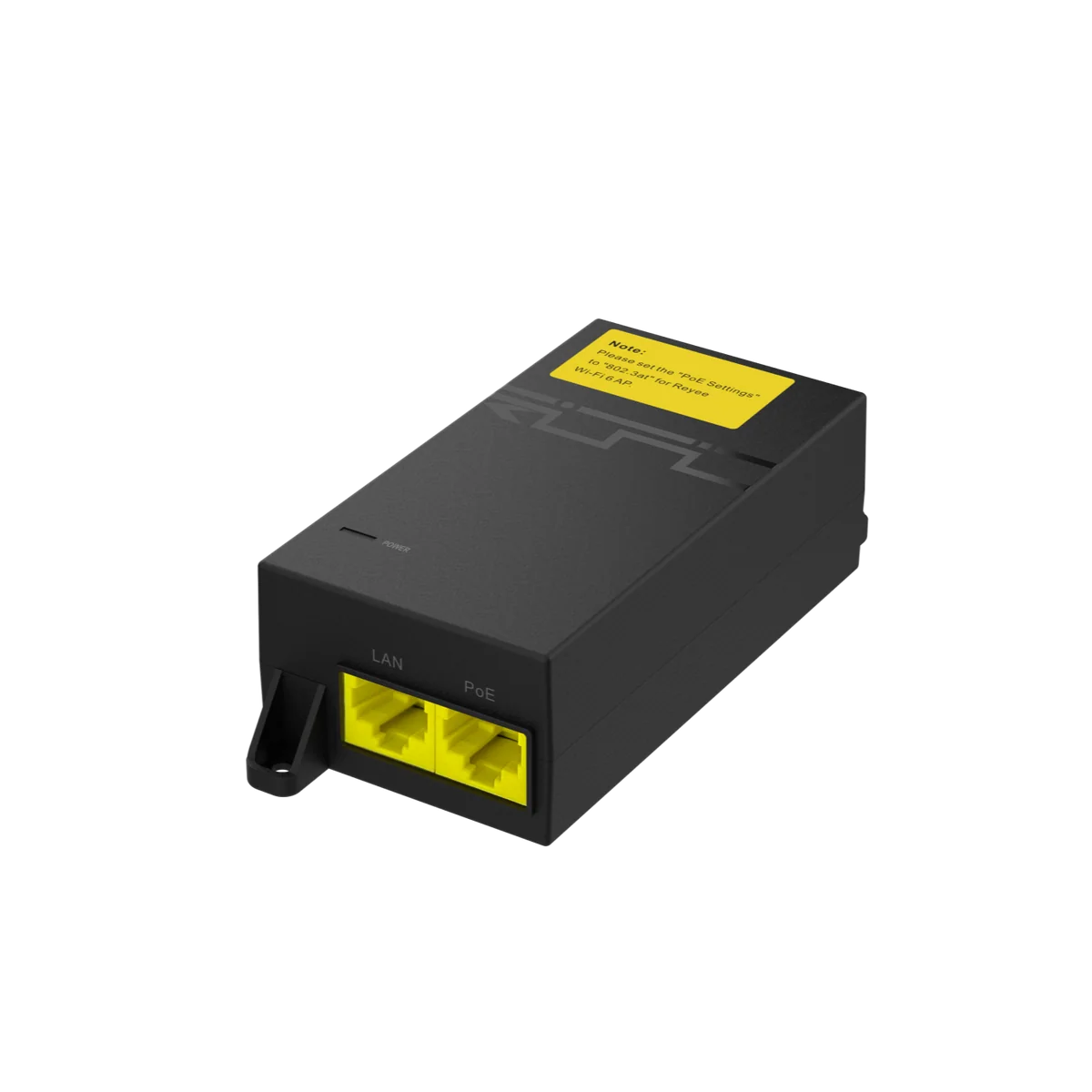

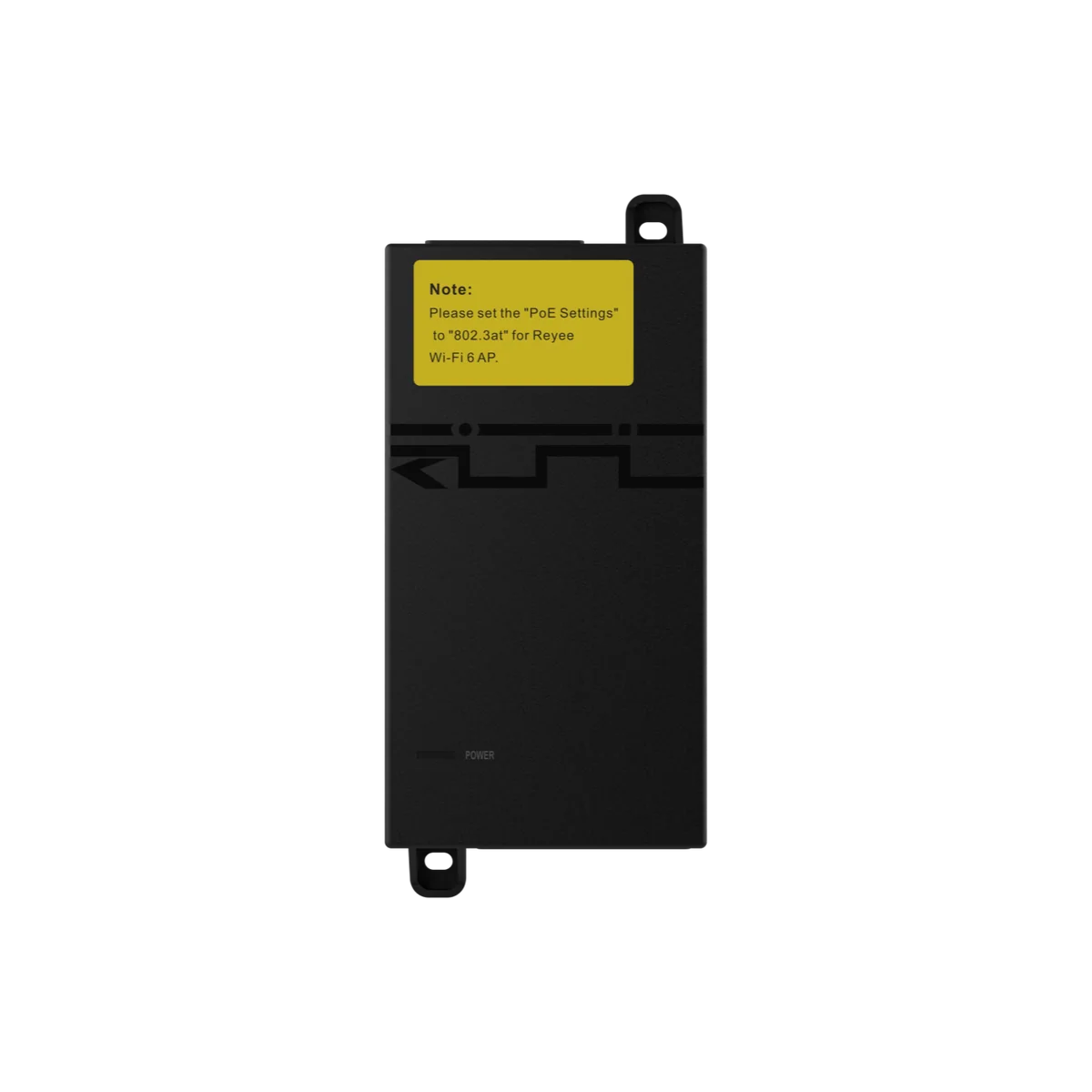

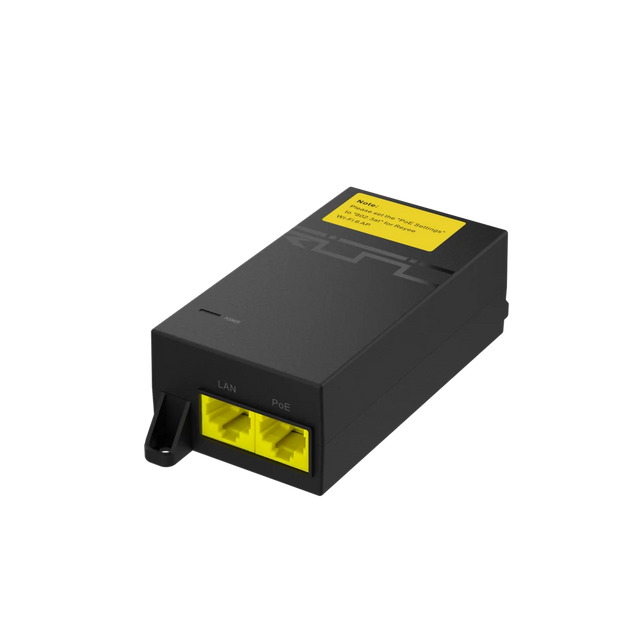

The Ruijie Reyee RG-POE-AT30 Gigabit PoE Injector is designed to deliver reliable power and Gigabit Ethernet data over a single network cable to compatible Ruijie Reyee wireless access points and other supported PoE-powered network devices. It provides a 52V DC ±5% output at 0.6A with a maximum power output of 31.2W, making it a practical solution where a dedicated PoE switch is not available.
Equipped with a 1000Base-T Gigabit Ethernet port, the RG-POE-AT30 supports simultaneous high-speed data transmission and power delivery, helping simplify wireless access point installations and reduce additional power cabling requirements.
The injector uses Passive PoE with 2-pair powering, delivering power through pins 4,5 (+) and pins 7,8 (-). Its compact desktop design makes it suitable for network deployments in offices, hotels, retail environments, educational facilities, homes and small business networks.
Key Features
Model: RG-POE-AT30
Product Type: PoE Injector
Deployment Type: Desktop Installation
Output Voltage: 52V DC ±5%
Output Current: 0.6A
Maximum Output Power: 31.2W
PoE Standard: Passive PoE
Power Delivery: 2-Pair Powering
Power Pins: 4,5 (+) / 7,8 (-)
Network Interface: 1 × 1000Base-T Gigabit Ethernet Port
Input Voltage: 100–240V AC, 50/60Hz
Maximum Input Current: 0.7A
Operating & Physical Specifications
Operating Temperature: -10°C to 45°C / 14°F to 113°F
Storage Temperature: -40°C to 70°C / -40°F to 158°F
Dimensions: 95.2 × 52.2 × 33.2mm
Weight: 145g ± 5g
Maximum Discharge Current: 2000A (8/20µs)
Warranty: 3-Year Manufacturer Warranty
What’s Included
1 × Ruijie Reyee RG-POE-AT30 PoE Injector
Power Cable
Quick Installation Guide
Warranty Information
Compatible Ruijie Reyee Access Points
The RG-POE-AT30 supports a range of compatible wall-mounted, ceiling-mounted and outdoor Reyee access points, including models such as RG-RAP1261, RG-RAP2260, RG-RAP2266, RG-RAP6202(G), RG-RAP6262 and RG-RAP6260(G).
The Ruijie Reyee RG-POE-AT30 is a convenient Gigabit power-injection solution for installers and network professionals who need to power compatible access points without installing a dedicated PoE switch. Its 52V DC output, 31.2W maximum power and Gigabit Ethernet support make it well suited to professional residential and commercial networking deployments.
