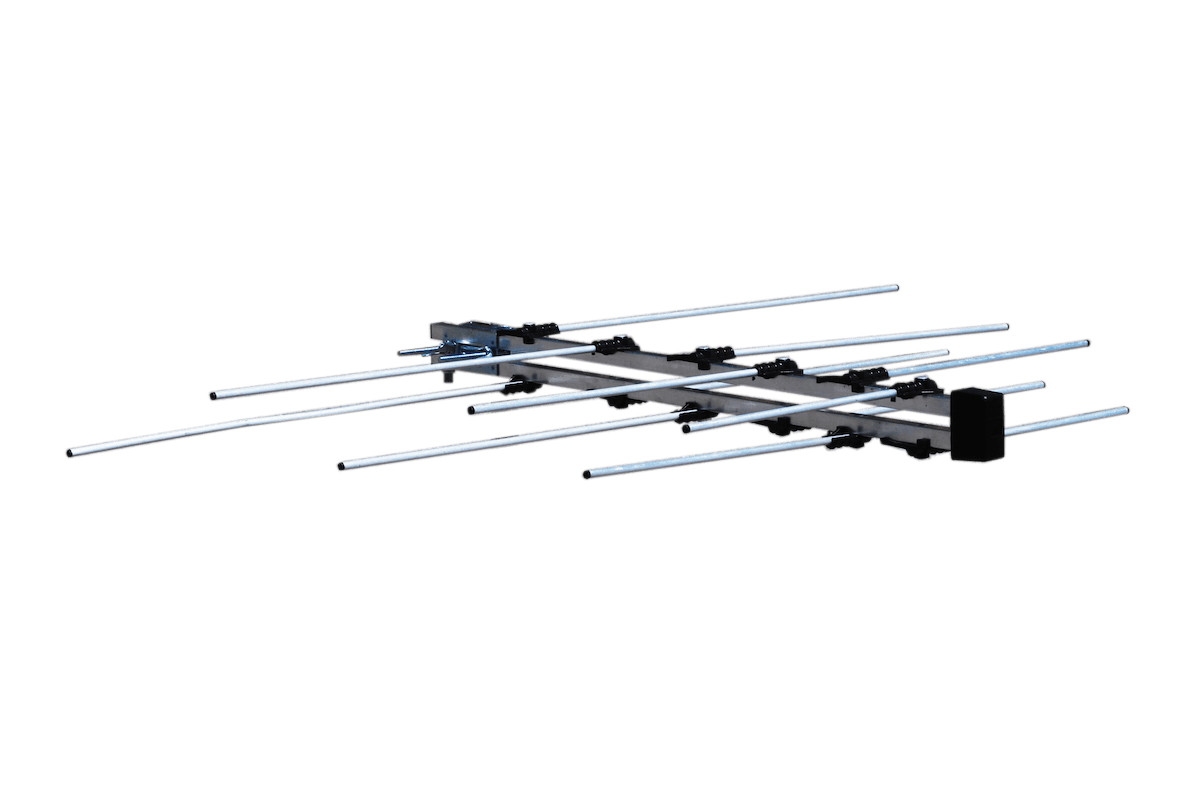

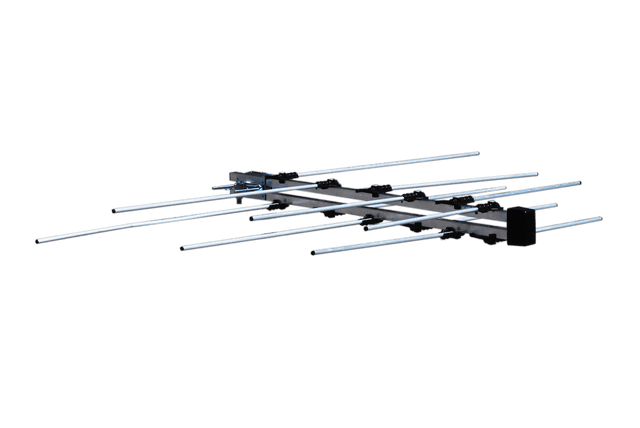

The LP-345F4 VHF/UHF Digital TV Antenna is designed for reliable free-to-air digital television reception across both VHF and UHF frequency bands. With a broad 174–900MHz frequency range, this antenna is suitable for receiving compatible TV channels across D–H2 and channels 21–69.
Featuring a 16-element design and antenna gain of up to 13dB, the LP-345F4 provides strong directional reception for residential and commercial TV antenna installations. Its 75Ω impedance makes it suitable for standard television antenna and coaxial cable systems.
With a total antenna length of 1130mm, the LP-345F4 provides a practical combination of VHF and UHF reception in a single outdoor antenna, making it suitable for rooftop and mast-mounted installations.
Key Specifications
Model: LP-345F4
Product Type: VHF / UHF Digital TV Antenna
Frequency Range: 174–900MHz
Channel Range: D–H2 / Channels 21–69
Impedance: 75Ω
Number of Elements: 16
Antenna Gain: 6.0–13dB / 11–13dB
Front-to-Back Ratio: 12–27dB / 19–46dB
Beam Width: H70° / V120° and H39° / V54°
Antenna Length: 1130mm
Suitable For: VHF and UHF free-to-air digital TV reception
Installation: Outdoor rooftop or antenna mast mounting
The LP-345F4 16 Element VHF/UHF TV Antenna is a versatile solution for installations requiring coverage across a wide 174–900MHz frequency range, combining VHF and UHF reception with directional gain and a standard 75Ω antenna connection.
