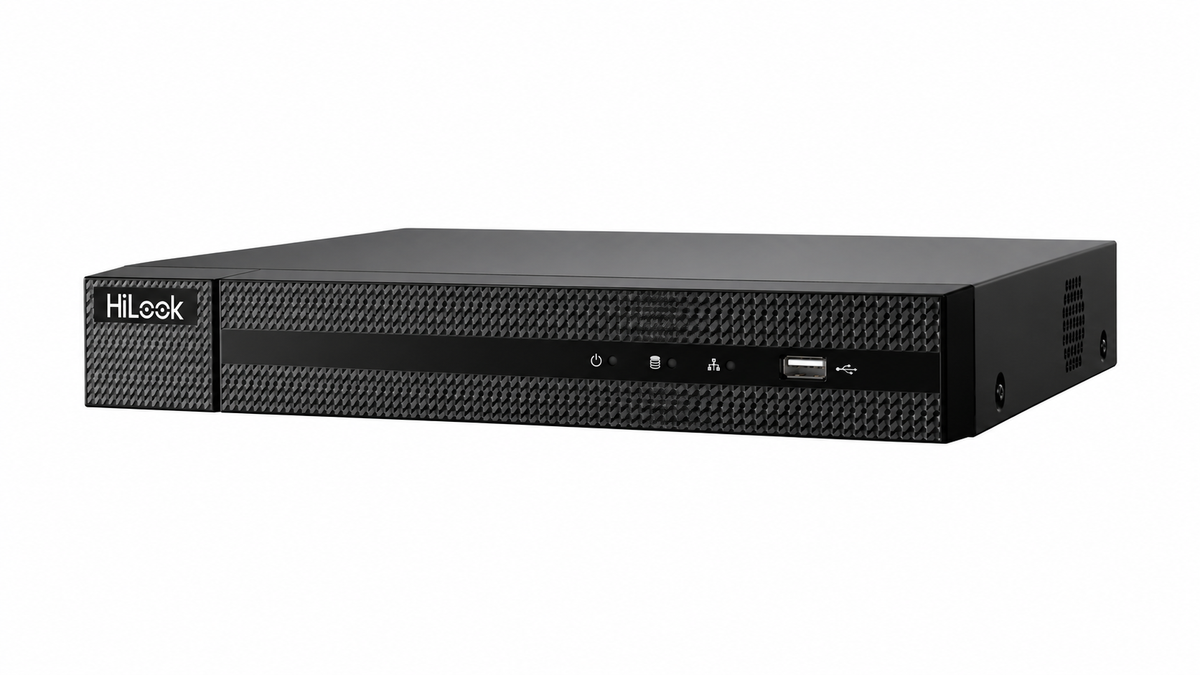

HiLook NVR-108MH-K/8P 8CH 4K AI PoE NVR — K-Series | Original Stock & 3-Year Warranty

The HiLook NVR-108MH-K/8P is an 8-channel K-Series 4K network video recorder designed for residential and commercial CCTV systems requiring reliable recording, built-in PoE connectivity and advanced AI security features. With 8 integrated PoE ports, compatible IP cameras can be connected directly to the NVR using a single network cable for both power and data, providing a clean and straightforward installation.

Supporting up to 12MP recording resolution, 80 Mbps incoming bandwidth and H.265+/H.265/H.264+/H.264 video compression, the NVR provides flexible high-resolution recording while helping optimise storage and network usage. It supports up to 2-ch @ 12MP, 4-ch @ 8MP, 8-ch @ 4MP or 16-ch @ 1080p decoding, depending on configuration and AI functions.

Advanced security features include Facial Recognition, Perimeter Protection and Motion Detection 2.0, while compatible cameras can provide additional analytics such as ANPR, VCA and Throwing Objects from Building detection. The recorder also provides 4K HDMI output, VGA output, two-way audio and up to 16TB HDD capacity through its single SATA interface.

Key Features

• 8-Channel 4K NVR — Supports up to 8 IP camera inputs.

• 8 Built-in PoE Ports — Plug-and-play connectivity with power and data delivered through a single Ethernet cable.

• Up to 12MP Recording — Supports recording resolutions up to 12MP.

• 80 Mbps Incoming Bandwidth — Provides high network bandwidth for multiple high-resolution IP cameras.

• Advanced AI Analytics — Includes Facial Recognition, Perimeter Protection and Motion Detection 2.0.

• Human & Vehicle Recognition — Device-side perimeter protection uses human and vehicle recognition to help reduce false alarms.

• Camera-Side AI — Supports Facial Recognition, Perimeter Protection, Throwing Objects from Building, Motion Detection 2.0, ANPR and VCA when supported by connected cameras.

• Efficient H.265+ Compression — Helps reduce storage and bandwidth requirements.

• 4K HDMI Output — Supports up to 3840 × 2160 at 30Hz.

• 8-Channel Synchronous Playback — Review footage from all connected channels simultaneously.

• Two-Way Audio — Supports one-channel two-way audio through the RCA interface.

• Up to 16TB HDD Support — Single SATA interface supports an HDD up to 16TB.

• Gigabit Network Interface — 10/100/1000 Mbps self-adaptive Ethernet connection.

• 75W PoE Budget — Supports IEEE 802.3af/at across the 8 PoE ports.

• Compact 1U-Style Chassis — Measures 320 × 240 × 48mm and weighs approximately 1kg without HDD.

Intelligent AI & Security Features

AI by Device

The NVR provides built-in intelligent analytics including:

• Facial Recognition

• Perimeter Protection

• Motion Detection 2.0

AI by Camera

Compatible cameras can provide additional AI functions, including:

• Facial Recognition

• Perimeter Protection

• Throwing Objects from Building

• Motion Detection 2.0

• ANPR

• VCA

Perimeter Protection

Device-side perimeter protection provides 1-channel, 4MP video analysis using human and vehicle recognition to help reduce false alarms. Camera-side perimeter protection is supported across all channels when compatible cameras are connected.

Throwing Objects from Building

Camera-side detection supports all channels when compatible cameras with this feature are connected.

Facial Recognition

The NVR supports:

• Face picture comparison

• Human face capture

• Face picture search

• Up to 16 face picture libraries

• Up to 20,000 face pictures in total

• Individual face picture size up to 4MB

• Total face picture library capacity up to 1GB

• Face picture comparison across 4 channels

• Facial detection and analytics performance of 1-ch @ 8MP

Motion Detection 2.0

Camera-side Motion Detection 2.0 is supported across all channels, providing intelligent motion analysis through compatible cameras.

Video & Audio

Recording & Decoding

Network & PoE

Storage & Interfaces

Operating Conditions

• Operating Temperature: -10°C to 55°C

• Operating Humidity: 10% to 90%

• Power Supply: 48 VDC, 1.875A

• PoE Standard: IEEE 802.3af/at

• PoE Budget: Up to 75W

Ideal For

The HiLook NVR-108MH-K/8P is suitable for homes, offices, retail stores, warehouses, schools and small-to-medium commercial properties requiring an 8-camera PoE CCTV system with 4K recording, intelligent AI analytics and flexible high-resolution decoding.

Note: Hard drive is not included.
