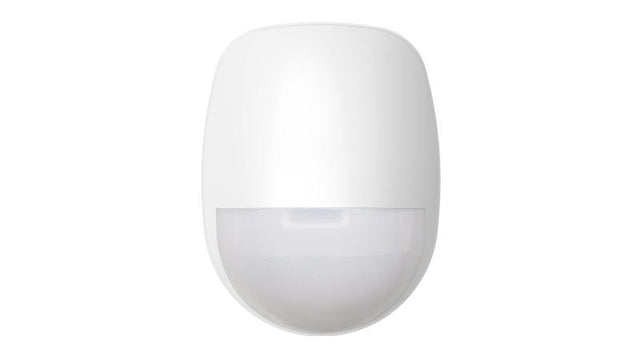

The Hikvision DS-PDP18-EG2 is a wired indoor 18m PIR motion detector designed to provide reliable volumetric intrusion detection for residential and commercial alarm systems. With a compact and modern design, the detector provides discreet installation while delivering dependable motion detection across small to large indoor spaces.
The DS-PDP18-EG2 features digital temperature compensation, automatic sensitivity adjustment, 3D optics and creep-zone protection to help maintain reliable detection performance in changing indoor environments. Its IFT technology also helps reduce false alarms caused by electromagnetic or electrical interference.
With flexible wall and ceiling mounting options, selectable EOL resistors, anti-insect interference protection and wide 9–16VDC voltage support, the DS-PDP18-EG2 is a practical choice for professional wired alarm installations.
Key Features
-
18m Detection Range — Provides up to 18m volumetric detection coverage for indoor areas.
-
85.9° Detection Angle — Provides wide-area motion detection coverage.
-
Digital Temperature Compensation — Adjusts sensitivity to maintain the specified detection range when background temperature is close to body temperature.
-
Automatic Sensitivity — Self-adapts to changing environmental conditions to maintain detection stability and intruder catch performance.
-
3D Optics — Improves moving-target detection by focusing infrared signals onto the pyro-electric sensor.
-
Creep-Zone Protection — Helps cover the blind spot directly below the detector.
-
Selectable EOL Resistors — Supports multiple alarm and tamper resistance values for compatibility with various control panels.
-
Wall & Ceiling Mounting — Can be installed at a height of 1.8m to 2.4m, with an optional ceiling mounting accessory.
-
Anti-Insect Interference — Helps protect the detector from insect infestation, air movement and adverse internal reflections.
-
Wide Voltage Support — Supports 9 to 16VDC with polarity reverse connection protection.
-
IFT Technology — Automatically adjusts upper and lower alarm trip thresholds when exposed to electromagnetic or electrical interference.
-
Front Tamper Protection — Includes front tamper-proof functionality.
-
Modern Compact Design — Small and unobtrusive housing suitable for indoor environments.
Detection Performance
| Specification | Details |
|---|---|
| Detection Range | 18m |
| Detection Angle | 85.9° |
| Velocity Range | 0.3 ~ 2 m/s |
| Sensitivity Adjustment | High, Auto, Low |
| Pet Immunity | 10Kg (With optional pet mask) |
| White Light Filter | 6500lux |
Software Features
-
Tamper-Proof: Front
Hardware Features
-
Indicator: Blue (alarm)
Electrical Characteristics
| Specification | Details |
|---|---|
| Power Supply | 9 to 16 VDC (standard: 12 VDC) |
| Power Consumption | 11mA (max) |
General Specifications
| Specification | Details |
|---|---|
| Dimensions (W × H × D) | 65.4mm × 86.8mm × 45.5mm |
| Weight | 68g |
| Application Scenario | Indoor |
| Installation Height | 1.8 to 2.4m |
| Operating Temperature | -10°C to 55°C (14°F to 131°F) |
| Certified Temperature | -10°C to 40°C (14°F to 104°F) Certified |
| Operating Humidity | 10% to 90% |
| Bracket | Optional wall & ceiling accessory |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
Reliable Indoor Motion Detection
The Hikvision DS-PDP18-EG2 wired PIR detector combines reliable 18m motion detection with advanced detection technologies designed for stable indoor alarm performance. Its 3D optics, automatic sensitivity, digital temperature compensation and IFT technology help provide dependable detection while reducing the impact of changing environmental conditions.
Ideal Applications
-
Homes and villas
-
Offices
-
Retail stores
-
Warehouses
-
Commercial properties
-
Indoor alarm systems
-
Hikvision AX Hybrid alarm systems
-
Professional wired security installations
