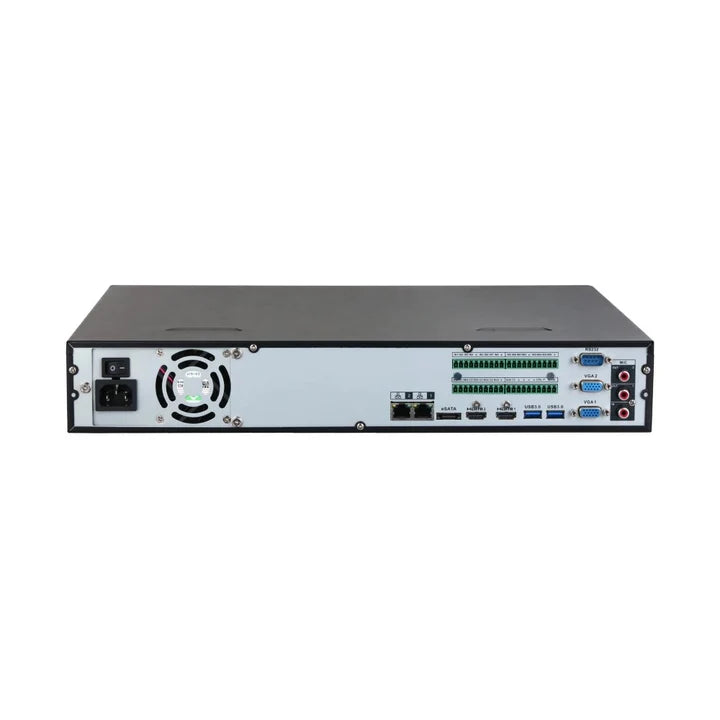

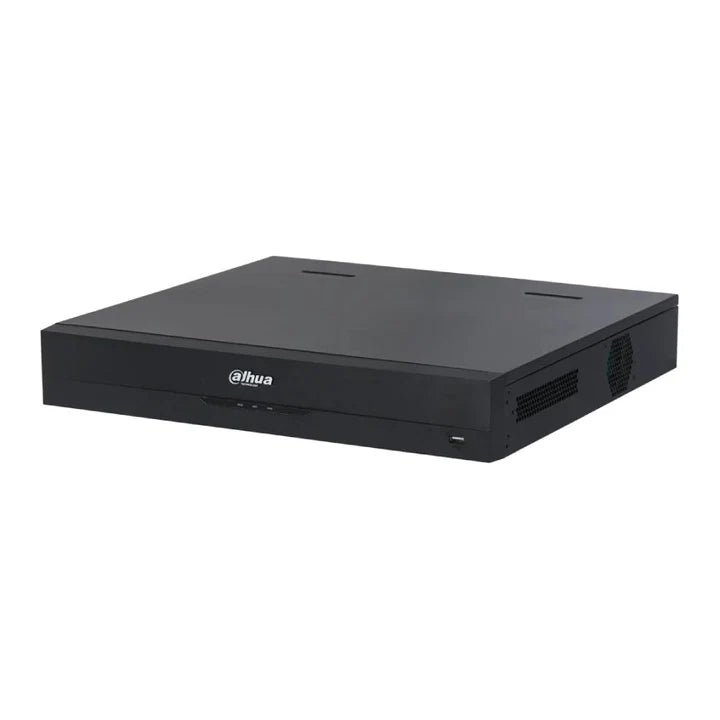

Dahua DHI-NVR5432-AI/ANZ 32-Channel 32MP WizSense AcuPick NVR | 4 HDD Bays | No PoE

The Dahua DHI-NVR5432-AI/ANZ is a professional 32-channel 5-Series WizSense AI Network Video Recorder designed for large commercial and enterprise CCTV installations. Supporting cameras up to 32MP per channel and AcuPick across all 32 channels, it provides powerful AI-driven video search, intelligent detection and centralised surveillance management.

With four SATA HDD bays, dual Gigabit network ports, dual HDMI and dual VGA outputs, this 1.5U NVR provides flexible storage and professional monitoring capabilities. Storage can be expanded to approximately 80TB using four compatible HDDs, with additional eSATA and iSCSI expansion available for larger surveillance environments.

Unlike PoE-equipped NVR models, the DHI-NVR5432-AI/ANZ has no built-in PoE ports. Cameras are connected through an external PoE switch or suitable PoE infrastructure, making this recorder ideal for installations where network architecture and camera power are managed separately.

Key Features

• 32-Channel Recording — Supports up to 32 compatible IP cameras with resolutions up to 32MP per channel.
• 32MP Ultra-High Resolution Support — Designed to record and manage high-resolution IP cameras for detailed surveillance footage.
• WizSense AI Technology — Industrial-grade deep-learning processing supports advanced intelligent video analytics.
• AcuPick on 32 Channels — Enables efficient event-based video searching across all 32 channels.
• Advanced AI Analytics — Supports face detection, face recognition, perimeter protection, SMD Plus, video metadata, ANPR, people counting, stereo analysis, crowd distribution, vehicle density and heat map functions.
• 4 HDD Bays — Four SATA interfaces support up to 20TB per drive, providing approximately 80TB maximum internal storage capacity.
• No Built-in PoE — Requires an external PoE switch or PoE infrastructure for powering connected IP cameras.
• High Network Bandwidth — Provides up to 384Mbps incoming, recording and outgoing bandwidth with AI disabled, and up to 200Mbps with AI enabled.
• Professional Video Output — Features dual HDMI outputs supporting 4K display and dual VGA outputs for flexible control-room monitoring.
• Multi-Screen Display — Main screen supports layouts of up to 36 channels, while the sub-screen supports up to 16 channels.
• Dual Gigabit Network Ports — Two 10/100/1000Mbps RJ-45 network interfaces support flexible network configurations including load balancing and fault tolerance.
• Enterprise Expansion — Supports N+M cluster, iSCSI and eSATA for enhanced reliability and storage expansion.
• ONVIF Support — Compatible with ONVIF Profile T, S and G, along with CGI and SDK integration.
• Mobile Monitoring — Access live view, playback and surveillance functions through the Dahua DMSS app on iOS and Android.
• Rack or Desktop Installation — Compact 1.5U chassis supports both rack-mounted and desktop deployment.

Full Specifications

Ideal for Professional CCTV Installations

The Dahua DHI-NVR5432-AI/ANZ is well suited to commercial buildings, warehouses, retail environments, industrial facilities, offices and other large-scale surveillance installations. Its combination of 32-channel recording, 32MP camera support, AcuPick, advanced WizSense AI, four HDD bays and enterprise connectivity provides a scalable platform for centralised CCTV management without requiring built-in PoE.
