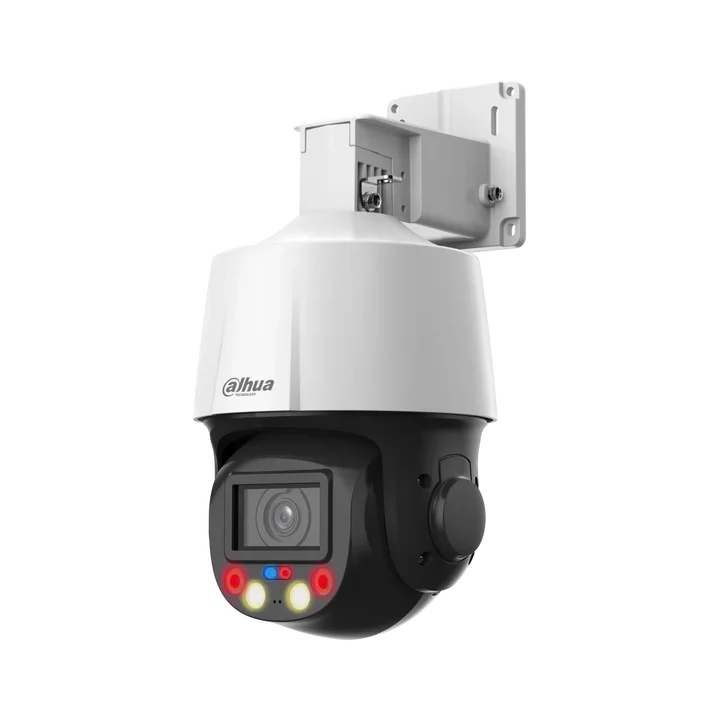

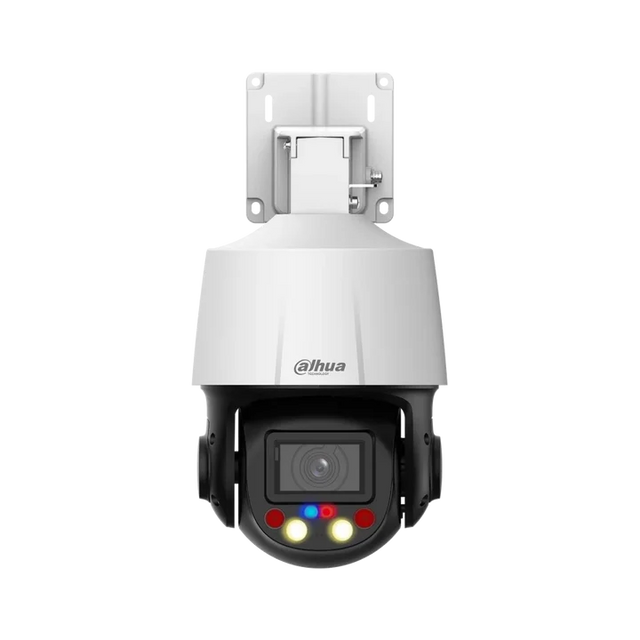

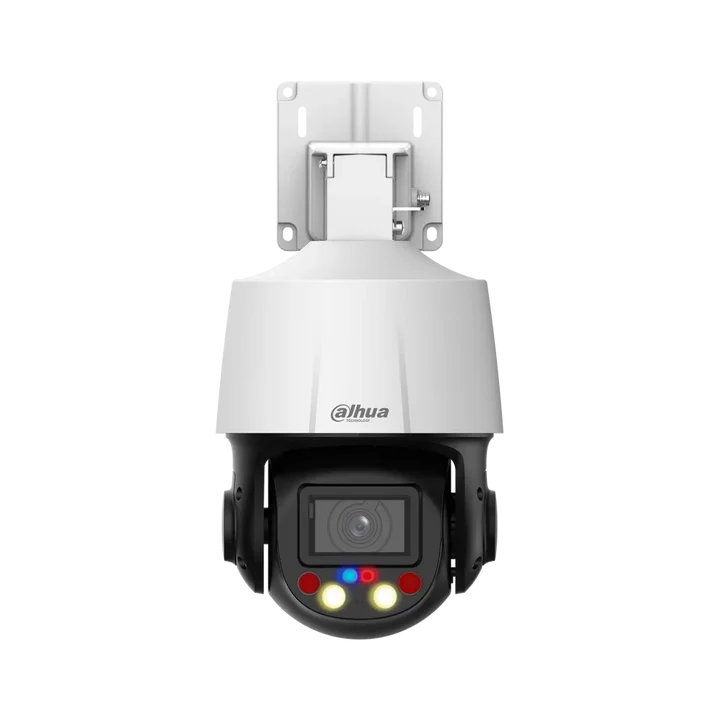

Dahua DH-SD3E405DB-GNY-A-PV1 — 4MP 5× TiOC WizSense Mini PTZ Camera with Active Deterrence
The Dahua DH-SD3E405DB-GNY-A-PV1 is a compact 4MP TiOC WizSense PTZ network camera designed for flexible surveillance and active perimeter protection in residential and commercial environments. It combines 5× optical zoom, intelligent human and vehicle detection, Smart Motion Detection 3.0, and active deterrence in a compact PTZ design.
The camera features a 1/2.8" CMOS sensor delivering up to 4MP (2560 × 1440) resolution at 25/30 fps. Its motorised 2.7–13.5 mm lens provides 5× optical zoom, allowing users to move from wide-area monitoring to closer views of subjects and activity.
For night surveillance, the camera combines 50 m IR illumination with 30 m warm-light illumination, helping maintain visibility in low-light environments. The Smart Dual Light system can use IR for discreet monitoring and activate warm light when additional colour detail is required.
The camera also provides TiOC active deterrence, including red and blue warning lights, customisable voice alerts and two-way audio through the built-in microphone and speaker. With SMD 3.0 and human/vehicle classification, it can help reduce unnecessary alarms caused by non-target movement.
Key Features
-
4MP High-Definition Imaging: Up to 2560 × 1440 resolution at 25/30 fps for detailed surveillance footage.
-
5× Optical Zoom: Motorised 2.7–13.5 mm lens provides flexible viewing from wide-area coverage to closer subject identification.
-
PTZ Functionality: 355° pan and –15° to +90° tilt provide broad-area monitoring from a single camera position.
-
Smart Motion Detection 3.0: Helps distinguish people and vehicles from common non-target movement to reduce false alarms.
-
TiOC Active Deterrence: Red and blue strobe lighting, customisable audio alerts and built-in speaker provide proactive visual and audible deterrence.
-
Two-Way Audio: Built-in microphone and speaker support real-time communication with people at the camera location.
-
Smart Dual Light: Combines 50 m IR and 30 m warm-light illumination for enhanced night-time monitoring.
-
Auto Tracking Lite: Helps follow detected targets within the camera's coverage area.
-
120 dB WDR: Helps maintain image detail in scenes containing both bright and dark areas.
-
Smart H.265+ Compression: Reduces bandwidth and storage requirements while maintaining video quality.
-
5× Optical Zoom: Provides a 94.9°–30.1° horizontal field of view for adaptable surveillance.
-
Presets and Tours: Supports up to 300 presets and 8 tours for automated PTZ monitoring.
-
IP66 Protection: Suitable for outdoor installations and protection against dust and water.
-
Environmental Protection: Designed to operate from –30°C to +60°C.
-
PoE+ Support: Supports 802.3at PoE+ as well as 12 VDC power.
-
Lightning and Surge Protection: Includes TVS 6000 V protection for improved resilience against electrical surges and transient conditions.
Intelligent Security & Monitoring
The DH-SD3E405DB-GNY-A-PV1 combines PTZ surveillance with Dahua's WizSense intelligent detection technology. Human and vehicle classification helps focus security events on relevant targets, while SMD 3.0 helps minimise false alarms.
The camera's Auto Tracking Lite capability can automatically follow suitable targets, while its PTZ controls, presets and tours allow installers to configure the camera for automated coverage of larger areas.
Active Deterrence & Night Vision
The integrated TiOC active deterrence system adds an additional layer of protection beyond video recording. When configured for security events, the camera can use its red and blue warning lights and audible alerts to discourage unwanted activity.
For night-time surveillance, 50 m IR illumination provides discreet infrared monitoring, while the 30 m warm light can provide additional colour illumination when required.
PTZ & Optical Zoom
With a 2.7–13.5 mm motorised lens and 5× optical zoom, the camera provides greater framing flexibility than a conventional fixed-lens security camera. The 355° pan and –15° to +90° tilt range allows one camera to monitor multiple areas from a single mounting location.
The camera supports 300 presets and 8 tours, making it suitable for programmed patrols and repeatable surveillance routes.
Ideal Applications
The Dahua DH-SD3E405DB-GNY-A-PV1 is well suited for:
-
Residential properties
-
Driveways and entrances
-
Small commercial premises
-
Shops and retail sites
-
Offices and warehouses
-
Building perimeters
-
Car parks and small outdoor areas
-
Gates and access points
-
General perimeter surveillance
Technical Specifications
Camera & Image Sensor
Specification Details Model DH-SD3E405DB-GNY-A-PV1 Camera Type Mini PTZ Image Sensor 1/2.8" CMOS Maximum Resolution 2560 × 1440 (4 MP) Minimum Illumination 0.005 lux @ F1.6 (Colour) WDR 120 dB Day/Night Auto (ICR) / Colour / B&W Smart Dual Light Yes Lens & Illumination
Specification Details Lens Type Motorized vari-focal Focal Length 2.7 mm – 13.5 mm Maximum Aperture F1.6 – F3.0 Optical Zoom 5× Field of View H: 94.9° – 30.1° IR Illumination Up to 50 m Warm Light Illumination Up to 30 m Illuminator 2 × warm-light LEDs with Smart Dual Light PTZ & Intelligent Features
Specification Details Pan Range 0° to 355° Tilt Range –15° to +90° Manual Speed Pan: 0.1° – 36°/s; Tilt: 0.1° – 25.8°/s Preset Speed Pan: 35.7°/s; Tilt: 27.1°/s Presets 300 Tours 8, with up to 32 presets per tour Idle Motion Preset / Tour Power-Off Memory Yes AI Platform WizSense IVS / Perimeter Protection Tripwire, intrusion, crossing-fence, loitering, abandoned/missing object, fast-moving, parking detection and people gathering Human & Vehicle Classification Yes Auto Tracking Auto Tracking Lite SMD SMD 3.0 Active Deterrence Light Red/blue light warning Active Deterrence Sound 11 built-in sound alarms + 10 importable custom sounds Video, Audio & Network
Specification Details Video Compression Smart H.265+, H.265, Smart H.264+, H.264, H.264H, MJPEG (sub stream) Supported Resolutions 4 MP, 3 MP, 1080p, 1.3 MP, 720p, D1, VGA, CIF Main Stream 2560 × 1440 @ 1–25/30 fps Audio Compression G.711a, G.711Mu, G.726, MPEG2-Layer2, G.722.1, PCM Audio Input 1 channel LINE IN / built-in microphone Audio Output 1 channel LINE OUT / built-in speaker Alarm I/O 1 input / 1 output Alarm Linkage Capture, recording, email, preset, alarm digital, audio and warning light Network Port RJ-45 (10/100 Base-T) Interoperability ONVIF Profile S, G & T; CGI; SDK Storage Micro SD card, FTP / SFTP, NAS Mobile Client DMSS for iOS / Android Management Software DMSS, DSS Pro Power, Environment & Construction
Specification Details Power Supply 12 VDC, 2 A ±10% / PoE+ (IEEE 802.3at) Basic Power Consumption 4.5 W Maximum Power Consumption 15 W Operating Temperature –30°C to +60°C Protection IP66 Surge Protection TVS 6000 V lightning, surge and voltage transient protection Dimensions 142.6 × 140 × 236.1 mm Net Weight 1.5 kg Certifications CE, RCM (AU) Warranty 3 Years Why Choose a Mini PTZ Instead of Multiple Fixed Cameras?
The DH-SD3E405DB-GNY-A-PV1 combines PTZ control, optical zoom, intelligent detection and active deterrence into a single camera. Depending on the site layout, this can provide a simpler installation than deploying multiple fixed cameras.
Factor DH-SD3E405DB-GNY-A-PV1 Multiple Fixed Cameras + Separate Deterrence Camera Deployment 1 motorised PTZ camera Multiple fixed cameras NVR Channels 1 channel Additional channels required for each camera PoE Connection 1 × PoE+ connection Multiple PoE connections Active Deterrence Built-in red/blue warning light and audio deterrence May require additional hardware Two-Way Audio Built-in microphone and speaker Depends on the cameras selected Remote Reframing Pan, tilt and optical zoom can be controlled remotely Fixed cameras generally require physical adjustment Auto Tracking Auto Tracking Lite Not available on conventional fixed cameras Optical Zoom 5× Depends on individual camera models Installation One PTZ camera and cable run Multiple cameras and cable runs Maintenance Single camera housing Multiple camera housings Best Suited For Sites requiring flexible coverage, zoom and active deterrence Sites requiring simultaneous fixed views from multiple angles
