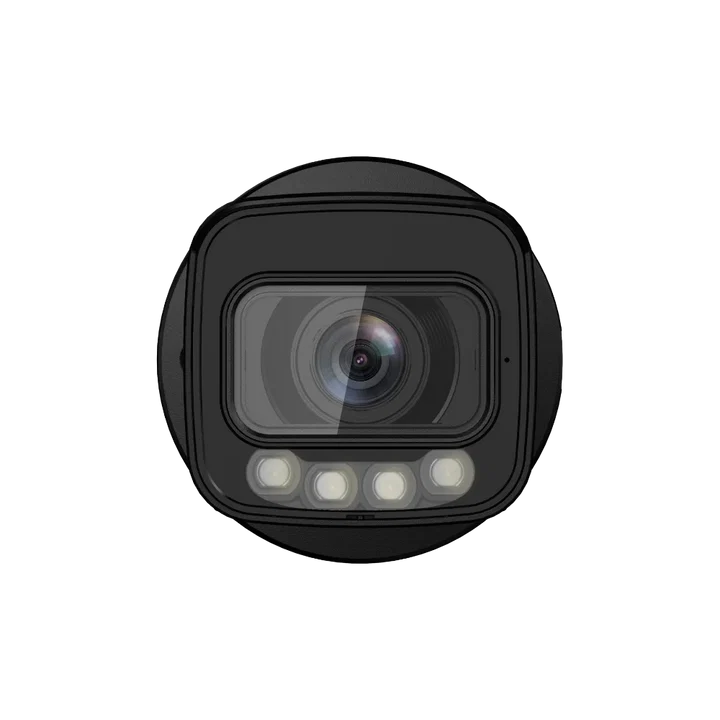

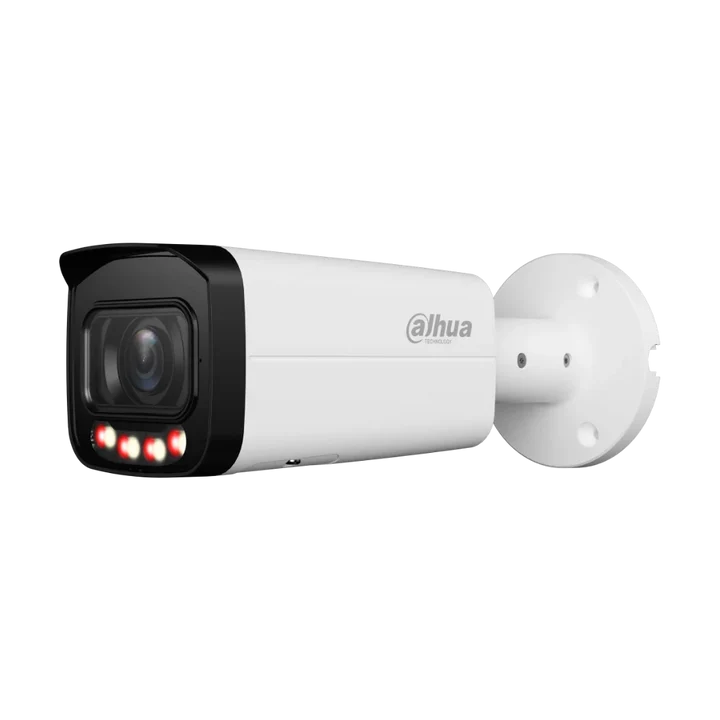

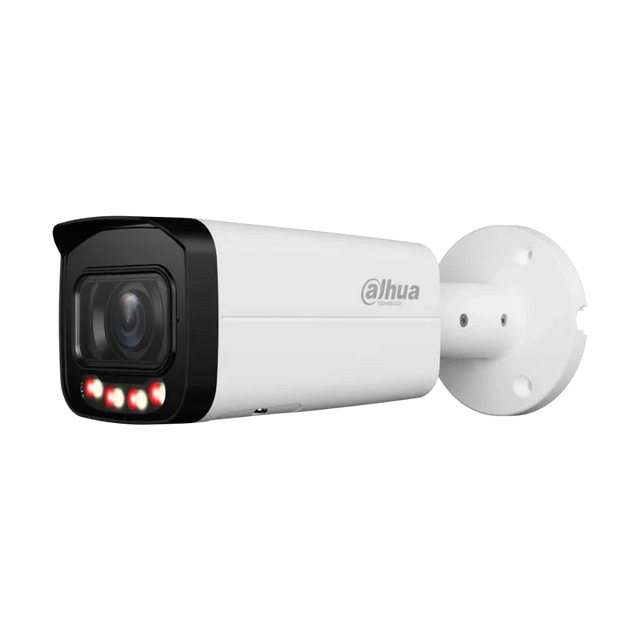

Dahua DH-IPC-HFW3667T-ZAS-IL-ANZ – 6MP Smart Dual Light Motorized Vari-Focal Bullet WizSense Network Camera

The Dahua DH-IPC-HFW3667T-ZAS-IL-ANZ is a professional 6MP outdoor IP security camera designed for reliable surveillance across residential, commercial and industrial environments. Featuring a 1/2.7" CMOS image sensor, 6MP resolution and a motorised 2.7 mm–13.5 mm vari-focal lens, the camera provides flexible viewing from wide-area monitoring through to detailed long-distance surveillance.

Dahua's Smart Dual Light technology combines infrared and warm-light illumination, providing up to 60 m IR illumination and 60 m warm-light illumination. This allows the camera to maintain discreet infrared monitoring while providing colour illumination when required for improved identification.

The camera incorporates 120 dB WDR, 3D noise reduction, HLC, BLC, electronic image stabilization and Scene Self-adaptation (SSA) to help maintain usable footage in challenging lighting and environmental conditions. The motorized vari-focal lens offers a 114°–32° horizontal field of view, allowing installers to adjust the camera's coverage without replacing the lens.

Powered by Dahua's WizSense intelligent video technology, the DH-IPC-HFW3667T-ZAS-IL-ANZ supports SMD 4.0, AcuPick, tripwire and intrusion detection with human and vehicle classification. These features help reduce unwanted alerts while making it easier to identify and search for relevant events.

With H.265/H.264 compression, three video streams, Micro SD storage up to 512 GB, ONVIF support, built-in microphone, alarm I/O and 12 VDC/PoE (802.3af) connectivity, the camera can integrate into a wide range of professional surveillance systems. Its IP67-rated metal housing and operating temperature range of –30 °C to +60 °C make it suitable for demanding outdoor installations.

Key Features

• 6MP high-resolution surveillance using a 1/2.7" CMOS image sensor.

• Motorized 2.7 mm–13.5 mm vari-focal lens for adjustable viewing and installation flexibility.

• Smart Dual Light technology with up to 60 m IR and 60 m warm-light illumination.

• 120 dB WDR helps retain image detail in scenes with strong contrast between bright and dark areas.

• WizSense intelligent detection with SMD 4.0 and AcuPick capabilities.

• Human and vehicle classification for tripwire and intrusion protection.

• H.265 and Smart H.265+ compression helps reduce bandwidth and storage requirements.

• AI H.264/H.265 coding for efficient video transmission and storage.

• Electronic Image Stabilization (EIS) helps improve footage affected by camera movement.

• Built-in microphone for audio monitoring.

• 1-channel alarm input and 1-channel alarm output for integration with compatible security devices.

• Micro SD storage up to 512 GB.

• ONVIF Profile S, Profile G, Profile T and Profile M support for system integration.

• 12 VDC or PoE (802.3af) power options.

• IP67 protection for outdoor installation.

• Suitable for homes, driveways, warehouses, commercial properties, retail sites, offices, industrial facilities and other outdoor surveillance applications.

---

Technical Specifications

Camera

Image Sensor
1/2.7" CMOS

Max. Resolution
3288 (H) × 1850 (V)

ROM
256 MB

RAM
1 GB

Scanning System
Progressive

Electronic Shutter Speed
Auto/Manual 1/3 s–1/100,000 s

Min. Illumination
0.005 lux@F1.4 (Color, 30 IRE)
0.0005 lux@F1.4 (B/W, 30 IRE)
0 lux (Illuminator on)

S/N Ratio

56 dB

Illumination Distance
Up to 60 m (196.85 ft) (IR)
Up to 60 m (196.85 ft) (Warm light)

Illuminator On/Off Control
Auto; Manual

Illuminator Number
4 (Multi-core (IR + warm) light)

Angle Adjustment
Pan: 0°–360°; Tilt: 0°–90°; Rotation: 0°–360°

Lens

Lens Type
Motorized vari-focal

Lens Mount
φ14

Focal Length
2.7 mm-13.5 mm

Max. Aperture
F1.4

Field of View
H: 114°–32°; V: 58°–17°; D: 138°–36°

Iris Control
Fixed

Close Focus Distance
0.1 m (0.33 ft)

DORI Distance

Lens	Detect	Observe	Recognize	Identify
W	85.3 m (279.86 ft)	34.0 m (111.55 ft)	17.1 m (56.10 ft)	8.5 m (27.89 ft)
T	280.0 m (918.64 ft)	112.0 m (367.45 ft)	56.0 m (183.73 ft)	28.0 m (91.86 ft)

DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.

Intelligence

IVS (Perimeter Protection)
Tripwire, intrusion (support the classification and accurate detection of vehicle and human)

SMD
SMD 4.0

AcuPick
Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets.

AI SSA
Adopt deep learning algorithms to adjust the parameters of the image to suit the conditions

Smart Search
Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

Video

Video Compression
H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)

AI Coding
AI H.264/H.265
*includes SmartCodec Technology, Smart H.264+/H.265+

Video Frame Rate
Main stream: 3288 × 1850@(1 fps–25/30 fps)
Sub stream: 1920 × 1080@(1 fps–25/30 fps)
Third stream: 1920 × 1080@(1 fps–25/30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Stream Capability
3 streams

Resolution
6M (3288 × 1850/3200 × 1800); 5M (2960 × 1688/2880 × 1620); 4M (2688 × 1520/2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Bit Rate Control
VBR;CBR;ABR

Video Bit Rate
H.264: 3 kbps–16384 kbps
H.265: 3 kbps–16384 kbps

Day/Night
Auto (ICR)/Color/B/W

BLC
Yes

HLC
Yes

WDR
120 dB

Scene Self-adaptation (SSA)
Yes

White Balance
Auto; natural; street lamp; outdoor; manual; regional custom

Gain Control
Auto

Noise Reduction
3D NR

Motion Detection
OFF/ON (4 areas, rectangular)

Image Stabilization
Electronic Image Stabilization (EIS)

Region of Interest (RoI)
Yes (4 areas)

Smart Illumination
Yes

Smart Dual Light
Yes

Defog
Yes

AFSA
Yes

Image Rotation
0°/90°/180°/270° (support 90°/270° with 2688 × 1520 resolution and lower)

Mirror
Yes

Privacy Masking
8 areas

Audio

Built-in Mic
Yes, built-in Mic

Audio Compression
G.711a; G.711Mu; PCM; G.726; G.723

Alarm

Alarm Event
No SD card; SD card full; SD card error; service life warning (only supported by Dahua card); network disconnection; IP conflict; illegal access; motion detection; video tampering; intrusion; tripwire; scene changing; audio detection; voltage detection; defocus detection; external alarm; SMD; safety exception

Network

Network Port
RJ-45 (10/100 Base-T)

SDK and API
Yes

Network Protocol
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P

Interoperability
ONVIF (Profile S & Profile G & Profile T & Profile M); CGI

User/Host
20 (Total bandwidth: 64 M)

Storage
FTP; SFTP; Micro SD card (support max. 512 G); NAS

Browser
IE: IE11
Chrome
Firefox

Management Software
SmartPSS Lite; DSS; DMSS

Mobile Client
IOS; Android

Security

Digest; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; Syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade; Session security; Security warning

Certification

Certifications
CE-LVD: EN62368-1;
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU

Port

Audio Input
1 channel (RCA port)

Audio Output
1 channel (RCA port)

Alarm Input
1 channel in: wet contact, 5 mA 3–5 VDC

Alarm Output
1 channel out: wet contact, 300 mA 12 VDC

Power

Power Supply
12 VDC/PoE (802.3af)

Dual Power Backup
When the power adapter and PoE provide power at the same time, disconnect one of them. The device will continue to work, but will not restart.

Power Consumption
Basic: 3.8 W (12 VDC); 5.3 W (PoE)
Max. :9.9 W (12 VDC); 12.5 W (PoE) (H.265 + WDR + warm light + intelligence on)

Environment

Operating Temperature
–30 °C to +60 °C (–22 °F to +140 °F)

Operating Humidity
≤95% (RH), non-condensing

Storage Temperature
–40 °C to +60 °C (–40 °F to +140 °F)

Storage Humidity
≤95% (RH), non-condensing

Protection

Protection
IP67

Structure

Casing
Metal

Product Dimensions
238.5 mm × 90.7 mm × 90.7 mm (9.39" × 3.57" × 3.57") (L × W × H)

Net Weight
835 g (1.84 lb)

Gross Weight
1090 g (2.40 lb)
