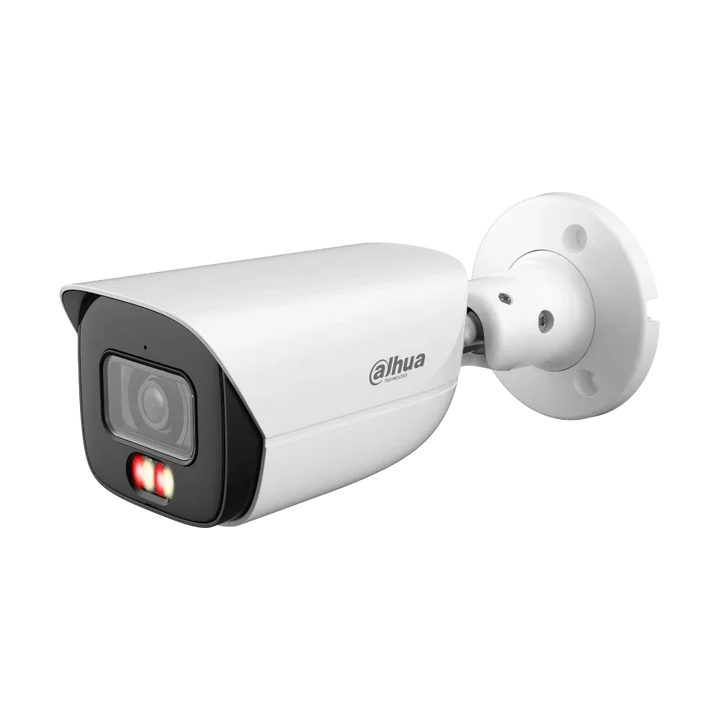

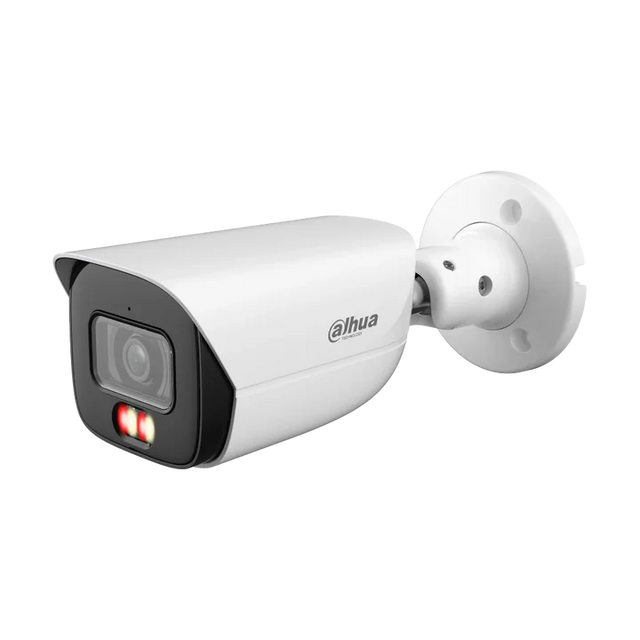

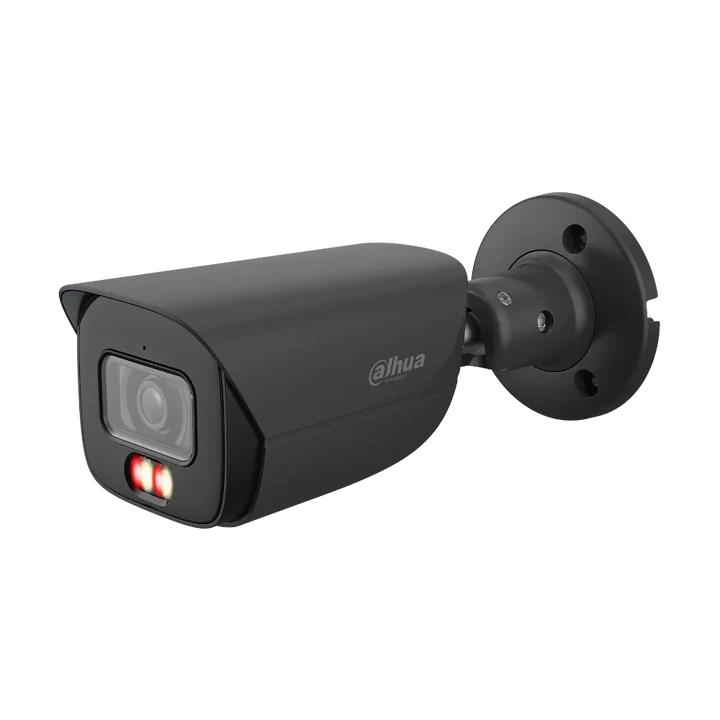

Dahua DH-IPC-HFW3667E-AS-IL-ANZ — 6MP Smart Dual Light Fixed-Focal Bullet WizSense Network Camera

The Dahua DH-IPC-HFW3667E-AS-IL-ANZ is a professional 6MP outdoor bullet IP camera designed for reliable surveillance across homes, retail premises, offices, warehouses, commercial properties and other demanding environments. It combines a high-definition 6MP image sensor with 120 dB WDR, Smart Dual Light illumination, intelligent human and vehicle detection, SMD 4.0 and AcuPick to provide clear and intelligent monitoring day and night.

The camera features a fixed-focal 2.8 mm or 3.6 mm lens, allowing you to select the viewing angle suited to your installation. Its Smart Dual Light system provides up to 30 m IR illumination and 30 m warm-light illumination, helping maintain visibility in low-light conditions while supporting colour imaging when required.

With H.265 and AI H.265/H.264 encoding, the camera can reduce bandwidth and storage requirements while maintaining high-quality video. Built-in audio, alarm I/O, Micro SD storage support, PoE connectivity and IP67 weather protection make the DH-IPC-HFW3667E-AS-IL-ANZ a versatile choice for both indoor and outdoor security installations.

Key Features

• 6MP High-Definition Video: Captures video at up to 3288 × 1850 @ 25/30 fps for detailed surveillance footage.

• Smart Dual Light: Combines IR and warm-light illumination, with up to 30 m IR and 30 m warm-light range.

• Fixed-Focal Lens: Available with 2.8 mm or 3.6 mm focal length options for different surveillance requirements.

• 120 dB WDR: Helps maintain image detail in scenes containing both bright and dark areas.

• WizSense AI Detection: Intelligent monitoring supports human and vehicle classification for intrusion and tripwire events.

• SMD 4.0: Helps distinguish people and vehicles from other motion activity to improve event detection.

• AcuPick: Uses deep-learning technology with compatible back-end devices to help locate people and vehicles in recorded footage.

• AI Coding: AI H.265 and AI H.264 help optimise video compression and storage usage.

• Built-In Microphone: Captures audio directly from the camera.

• Two-Way Audio & Alarm Connectivity: Supports 1-channel audio input/output and 1-channel alarm input/output.

• Micro SD Storage: Supports Micro SD cards up to 512 GB.

• PoE Support: Power and network connectivity can be provided through a single Ethernet cable using 802.3af PoE.

• IP67 Protection: Designed for outdoor installations with protection against dust and water ingress.

• Wide Operating Temperature: Suitable for demanding environments from –40 °C to +60 °C.

• Smart Image Processing: Includes 3D NR, BLC, HLC, Defog, EIS, ROI and Scene Self-Adaptation.

Smart Dual Light for Day and Night Surveillance

The DH-IPC-HFW3667E-AS-IL-ANZ uses a combination of IR and warm-light illumination to improve visibility after dark. IR illumination can reach up to 30 m, while warm-light illumination also reaches up to 30 m.

The Smart Dual Light system can intelligently manage illumination according to the surveillance scene, helping deliver clearer night-time footage while providing flexible lighting options for different applications.

Intelligent Human & Vehicle Detection

The camera supports intelligent perimeter protection through intrusion and tripwire detection, with classification of people and vehicles. This helps make security alerts more relevant and reduces unnecessary notifications caused by general movement.

SMD 4.0 provides additional intelligent filtering, while AcuPick can work with compatible Dahua back-end devices to help locate people and motor vehicles in live or recorded video.

6MP Image Quality with 120 dB WDR

The 1/2.7" CMOS sensor provides a maximum resolution of 3288 × 1850, delivering detailed surveillance footage at up to 25/30 fps.

With 120 dB WDR, the camera is designed to handle challenging lighting conditions such as entrances, windows, driveways and areas where strong sunlight and shadows appear within the same scene.

Additional image functions include:

• 3D Noise Reduction

• Backlight Compensation (BLC)

• Highlight Compensation (HLC)

• Defog

• Electronic Image Stabilisation (EIS)

• Region of Interest (ROI)

• Scene Self-Adaptation (SSA)

• Smart Illumination

• Smart Dual Light

• Image Rotation

• Privacy Masking

Flexible Lens Options

The camera uses a fixed-focal lens and is available with either a 2.8 mm or 3.6 mm focal length.

The 2.8 mm option provides a wider 110° horizontal field of view, making it suitable for broader coverage. The 3.6 mm option provides a narrower 86° horizontal field of view, which can be useful where a more focused viewing area is required.

Video Compression & Storage

The camera supports H.265, H.264, H.264H, H.264B and MJPEG video compression, with AI H.265 and AI H.264 coding available.

Three video streams are supported, allowing the camera to provide different resolutions and bitrates for recording, remote viewing and other applications.

Local recording is supported through Micro SD storage up to 512 GB, while FTP, SFTP and NAS storage options are also available.

Built-In Audio & Alarm Connections

A built-in microphone allows the camera to capture audio alongside video. The camera also provides 1-channel RCA audio input and 1-channel RCA audio output, together with alarm input and output connections.

Supported alarm events include:

• No SD card

• SD card full

• SD card error

• Network disconnection

• IP conflict

• Illegal access

• Motion detection

• Video tampering

• Tripwire

• Intrusion

• Scene changing

• Audio detection

• Voltage detection

• External alarm

• SMD

• Security exception

PoE Installation & Outdoor Protection

The DH-IPC-HFW3667E-AS-IL-ANZ supports 12 VDC and 802.3af PoE, allowing compatible network installations to carry power and data through a single Ethernet cable.

Its IP67-rated metal housing provides protection for outdoor applications, while the operating temperature range of –40 °C to +60 °C makes it suitable for demanding environmental conditions.

Technical Specifications

Camera

Lens

DORI Distance

DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.

Intelligence

Video

Audio

Alarm

Alarm Event:
No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; voltage detection; external alarm; SMD; security exception

Network

Security

Digest;WSSE;Account lockout;Security logs;IP/MAC filtering;Generation and importing of X.509 certification;syslog;HTTPS;802.1x;Trusted boot;Trusted execution;Trusted upgrade;Session security;Security warning

Certification

Certifications:
CE-LVD: EN62368-1;
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU

Ports

Power

Environment

Physical Specifications

Why Choose the Dahua DH-IPC-HFW3667E-AS-IL-ANZ?

The DH-IPC-HFW3667E-AS-IL-ANZ is a strong choice when you need a 6MP outdoor bullet security camera with intelligent detection, Smart Dual Light, PoE, local storage and weather protection. Its combination of 120 dB WDR, SMD 4.0, AcuPick, human and vehicle classification, built-in audio and flexible lens options makes it suitable for a wide range of residential and commercial CCTV installations.
