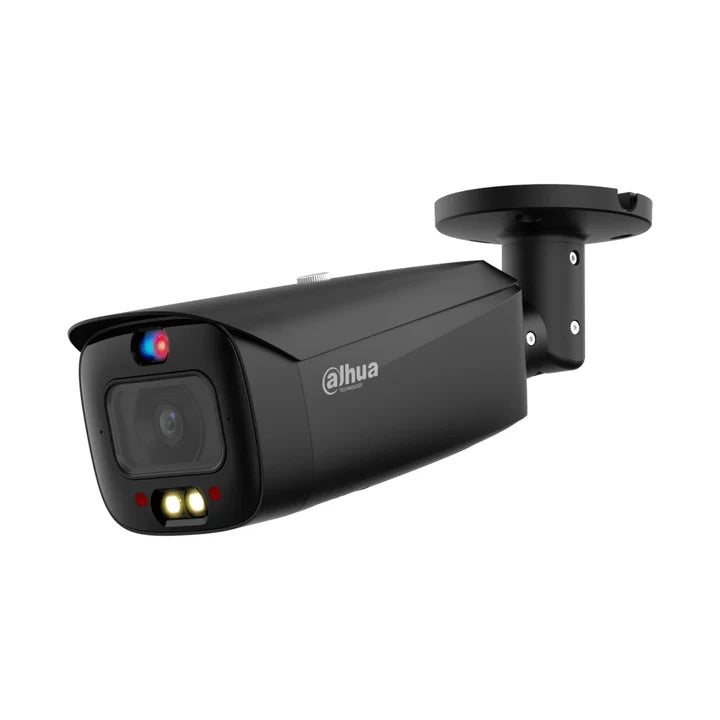

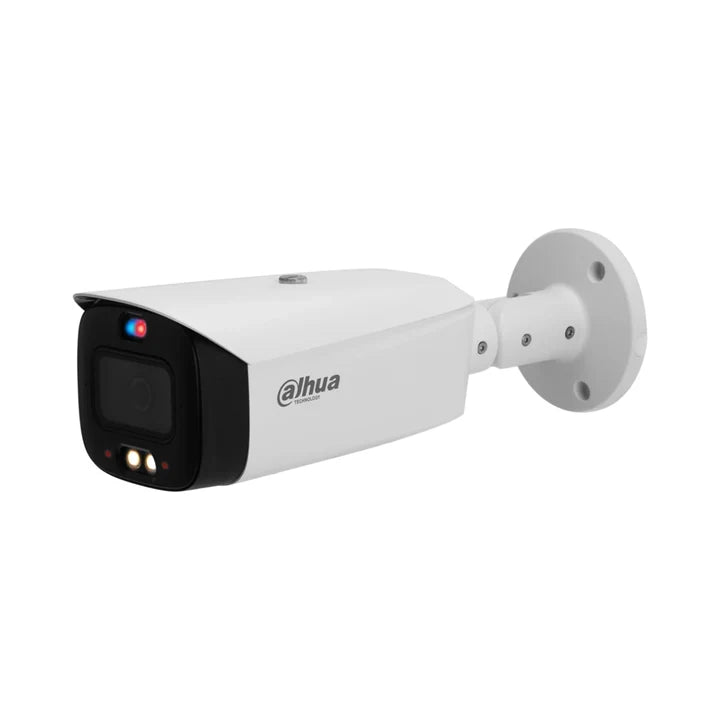

Dahua DH-IPC-HFW3649T1-AS-PV-ANZ-S2 6MP TiOC 3.0 Smart Dual Light WizSense Active Deterrence Bullet Camera | 2.8mm F1.0

Dahua DH-IPC-HFW3649T1-AS-PV-ANZ-S2  6MP TiOC 3.0 AcuPick Active Deterrence Bullet Camera

The Dahua DH-IPC-HFW3649T1-AS-PV-ANZ-S2 is a 6MP Smart Dual Light TiOC 3.0 WizSense bullet network camera designed for reliable perimeter security, active deterrence and intelligent event detection. Featuring a 1/2.7" CMOS sensor, 6MP resolution up to 3072 × 2048 @ 25/30 fps, and an ultra-wide F1.0 aperture, the camera delivers high-quality images in challenging lighting conditions.

Its Smart Dual Light system combines IR and warm-light illumination, providing up to 30 m IR and 30 m warm-light illumination. The camera can automatically activate the appropriate illuminator when required, supporting clear monitoring in low-light and zero-light environments.

Powered by Dahua's WizSense AI, the camera features SMD 4.0, AcuPick, AI SSA and intelligent perimeter protection with human and vehicle classification. Intrusion and tripwire detection help focus alerts on relevant events while reducing unwanted alarms. AcuPick uses deep-learning algorithms with compatible back-end devices to quickly locate and match people and motor vehicles across live and recorded footage.

For active security, the camera combines red and blue warning lights, a built-in speaker and dual microphones, providing audible and visual deterrence as well as two-way audio communication. It supports up to 512 GB Micro SD storage, 12 VDC or PoE (802.3af) power and is protected by an IP67-rated housing, making it suitable for demanding outdoor installations.

Key Features

• 6MP High-Definition Imaging: 1/2.7" CMOS sensor with maximum resolution of 3072 × 2048 @ 25/30 fps.

• F1.0 Large Aperture: Improves low-light performance and helps maintain detailed colour images in challenging conditions.

• Smart Dual Light: Built-in IR and warm-light illumination with a maximum range of 30 m each.

• TiOC 3.0 Active Deterrence: Red and blue warning lights combined with a built-in speaker for visual and audible deterrence.

• Two-Way Audio: Built-in dual microphones and speaker support two-way communication.

• WizSense AI: Includes SMD 4.0, AcuPick, AI SSA and human/vehicle classification.

• Intelligent Perimeter Protection: Intrusion and tripwire detection with accurate human and vehicle classification.

• 120 dB WDR: Helps maintain image detail in scenes with strong differences between bright and dark areas.

• AI Coding: Supports AI H.265 and AI H.264 with a compression rate of ≥25%.

• AcuPick: Enables accurate target matching and faster search through live and recorded video when used with compatible Dahua back-end devices.

• Flexible Lens Options: Available with 2.8 mm or 3.6 mm fixed-focal lens options.

• Local Storage: Supports Micro SD cards up to 512 GB, as well as FTP, SFTP and NAS storage.

• PoE Support: Supports 12 VDC or PoE (802.3af) for flexible installation.

• Outdoor Protection: IP67-rated protection for outdoor surveillance applications.

• Wide Operating Temperature: Designed to operate from –40 °C to +60 °C.

• 3-Stream Support: Provides flexible streaming options for different monitoring and bandwidth requirements.

Ideal Applications

The Dahua DH-IPC-HFW3649T1-AS-PV-ANZ-S2 is well suited to residential driveways, commercial properties, warehouses, retail premises, business yards, car parks, rural properties and perimeter security applications where high-resolution imaging, intelligent detection and active deterrence are required. Its bullet design is particularly suitable for pole, eaves and gable mounting where a visible security camera can provide an additional deterrent.
