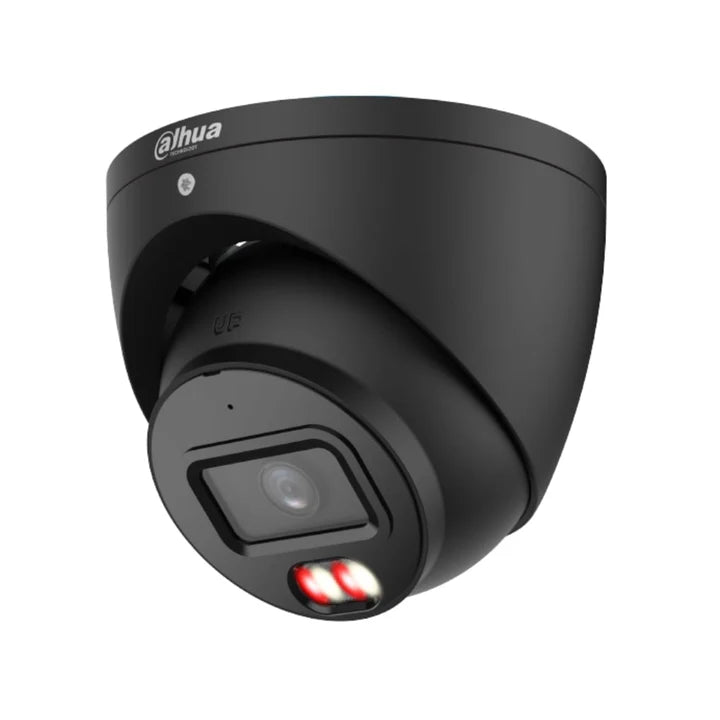

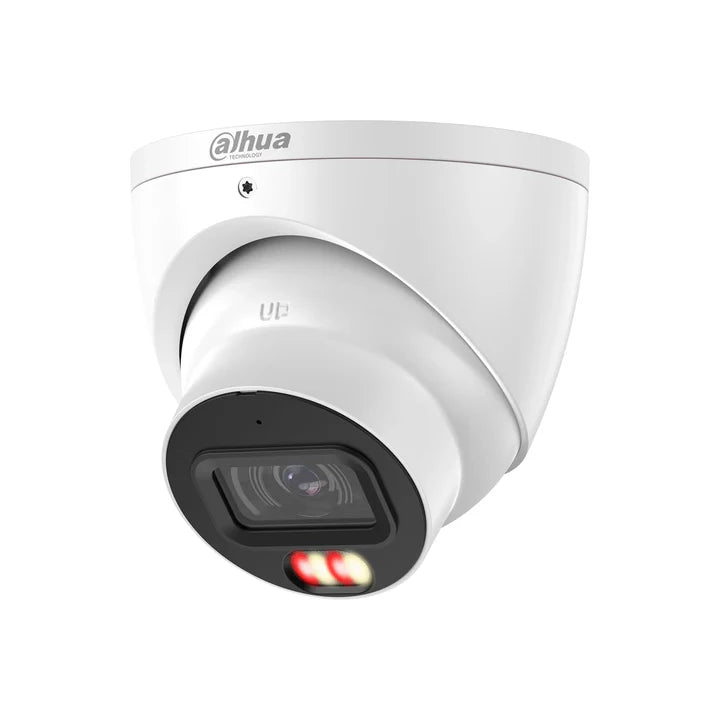

Dahua DH-IPC-HDW3867EM-S-IL-ANZ 8MP WizSense Dual Light Turret CCTV Camera

The Dahua DH-IPC-HDW3867EM-S-IL-ANZ is an 8MP 4K WizSense fixed-focal turret network camera designed for high-quality security monitoring in residential, commercial and outdoor environments. Featuring an 8MP 1/2.7-inch CMOS image sensor, fixed-focal lens and advanced image processing, the camera delivers detailed video with a maximum resolution of 3840 × 2160 at 25/30 fps.

The camera features Smart Dual Light technology, combining infrared and warm light illumination with a range of up to 30 meters. This provides flexible night-time monitoring, allowing the camera to use IR for discreet surveillance or warm light for color video and visual deterrence when required.

Advanced SMD 4.0 technology provides intelligent human and vehicle classification, while AI SSA, AcuPick and Smart Search support more efficient monitoring and event investigation. The camera also includes a built-in microphone, microSD storage support up to 512GB, H.265 compression technology and PoE (802.3af) for convenient installation.

With a robust IP67-rated metal housing and an operating temperature range of –40°C to +60°C, the Dahua DH-IPC-HDW3867EM-S-IL-ANZ is designed for reliable operation in demanding Australian environments.

Key Features

• 8MP 4K High-Resolution Video — Provides up to 3840 × 2160 resolution at 25/30 fps for detailed surveillance footage.

• 1/2.7-inch CMOS Sensor — Delivers high-definition imaging with low-luminance performance.

• Smart Dual Light Technology — Combines up to 30m IR and 30m warm light illumination for flexible night-time monitoring.

• SMD 4.0 AI Detection — Supports human and vehicle classification for more accurate detection and reduced irrelevant alerts.

• AcuPick — Uses deep learning algorithms with compatible back-end devices to help match and locate people and motor vehicles in live and recorded video.

• AI SSA — Uses deep learning algorithms to adjust image parameters according to scene conditions.

• Built-in Microphone — Captures on-site audio alongside video for more comprehensive monitoring.

• H.265 & AI Coding — Supports advanced compression technologies to help reduce bandwidth and storage requirements.

• Up to 512GB MicroSD Storage — Supports local recording with MicroSD cards up to 512GB, along with FTP, SFTP and NAS storage.

• 120dB WDR — Helps balance challenging lighting conditions and improve image visibility in scenes with bright and dark areas.

• IP67 Protection — Metal housing provides protection against dust and water for demanding outdoor installations.

• PoE Support — Supports 12 VDC or PoE (802.3af) power for flexible installation options.

Smart Dual Light Night Vision

The DH-IPC-HDW3867EM-S-IL-ANZ combines IR and warm light illumination, with both providing up to 30 meters of illumination distance.

Smart Dual Light technology allows the camera to adapt its illumination according to the monitoring environment. IR illumination can provide discreet night-time monitoring, while warm light can provide color video and additional visual deterrence when activated.

8MP 4K Image Quality

The 8MP 1/2.7-inch CMOS sensor provides a maximum resolution of 3840 × 2160, delivering detailed 4K video for security monitoring.

The camera supports:

• 8MP (3840 × 2160)

• 6MP (3200 × 1800)

• 5MP (3072 × 1728)

• 4MP (2688 × 1520 / 2560 × 1440)

• 3MP (2304 × 1296)

• 1080p

• 720p

• D1

• VGA

• CIF

The main stream supports 3840 × 2160 at 1–25/30 fps, subject to the total encoding capacity when multiple streams are used.

2.8mm Fixed-Focal Lens

The camera supports fixed-focal lens options of 2.8mm and 3.6mm, with a maximum aperture of F1.4.

The 2.8mm lens provides a wide field of view:

• Horizontal: 110°

• Vertical: 58°

• Diagonal: 132°

The 3.6mm option provides:

• Horizontal: 86°

• Vertical: 49°

• Diagonal: 100°

The camera also supports pan adjustment from 0°–360°, tilt adjustment from 0°–80° and rotation from 0°–360°.

SMD 4.0 AI Detection

The camera features SMD 4.0, providing intelligent detection and classification capabilities.

Its intelligent monitoring functions include:

• Intrusion detection

• Tripwire detection

• Human classification

• Vehicle classification

These functions are designed to provide more accurate detection of people and vehicles within monitored areas.

AcuPick and Smart Search

AcuPick uses deep learning algorithms and compatible Dahua back-end devices to help accurately match people and motor vehicles across live and recorded video.

Smart Search works with compatible Smart NVR systems to support refined intelligent searches, event extraction and event video merging, helping make security investigations more efficient.

Advanced Image Processing

The camera includes a range of image enhancement technologies designed for different monitoring environments, including:

• 120dB WDR

• BLC

• HLC

• 3D NR

• Defog

• Scene Self-adaptation (SSA)

• Smart Illumination

• Smart Dual Light

• Region of Interest (RoI)

• Image Rotation

• Privacy Masking

• LDC

• Mirror

The camera supports Auto, Color and B/W day/night modes and provides multiple white balance and gain control options.

Efficient Video Compression

The camera supports H.265, H.264, H.264H, H.264B and MJPEG video compression, with MJPEG supported on the sub stream.

It also supports:

• AI H.265

• AI H.264

• Smart H.264+

• Smart H.265+

• ROI

• VBR

• CBR

• ABR

These technologies help provide flexible video encoding for different network bandwidth and storage environments.

Audio & Recording

The DH-IPC-HDW3867EM-S-IL-ANZ features a built-in microphone for audio capture.

Supported audio compression formats include:

• PCM

• G.711a

• G.711Mu

• G.726

• G.723

For storage, the camera supports MicroSD cards up to 512GB, as well as:

• FTP

• SFTP

• NAS

Network & Compatibility

The camera features an RJ-45 10/100 Base-T network port and supports a wide range of network protocols and interoperability standards.

It supports ONVIF Profile S, Profile G, Profile T and Profile M, as well as CGI.

Compatible Dahua software and platforms include:

• SmartPSS Lite

• DSS

• DMSS

• DoLynk Care

Mobile viewing is supported through iOS and Android devices.

Power & PoE

The camera supports:

12 VDC / PoE (802.3af)

Power consumption:

• Basic: 3.7W (12 VDC) / 5.3W (PoE)

• Maximum: 7.4W (12 VDC) / 9.5W (PoE)

Maximum consumption applies with H.265 + WDR + warm light + intelligence enabled.

The camera also supports Dual Power Backup. When both the power adapter and PoE provide power simultaneously and one is disconnected, the device can continue operating without restarting.

IP67 Outdoor Protection

Built with a metal housing and IP67 protection, the camera is designed for demanding outdoor surveillance environments.

Operating conditions:

• Operating Temperature: –40°C to +60°C

• Operating Humidity: ≤95% RH, non-condensing

• Storage Temperature: –40°C to +60°C

• Storage Humidity: ≤95% RH, non-condensing

This makes the camera suitable for a wide range of residential, commercial and outdoor CCTV installations.

Technical Specifications

Camera

Lens

DORI Distance

DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) used to define the ability of a person viewing video to distinguish people or objects within a covered area. These distances do not represent intelligent function distances.

Intelligence

Video

Audio

Network & Storage

Power

Environment & Physical

Ideal Applications

The Dahua 8MP WizSense Dual Light Turret Camera is suitable for:

• Residential CCTV systems

• Homes and driveways

• Retail stores

• Offices

• Warehouses

• Commercial properties

• Building entrances

• Outdoor areas

• General site surveillance
