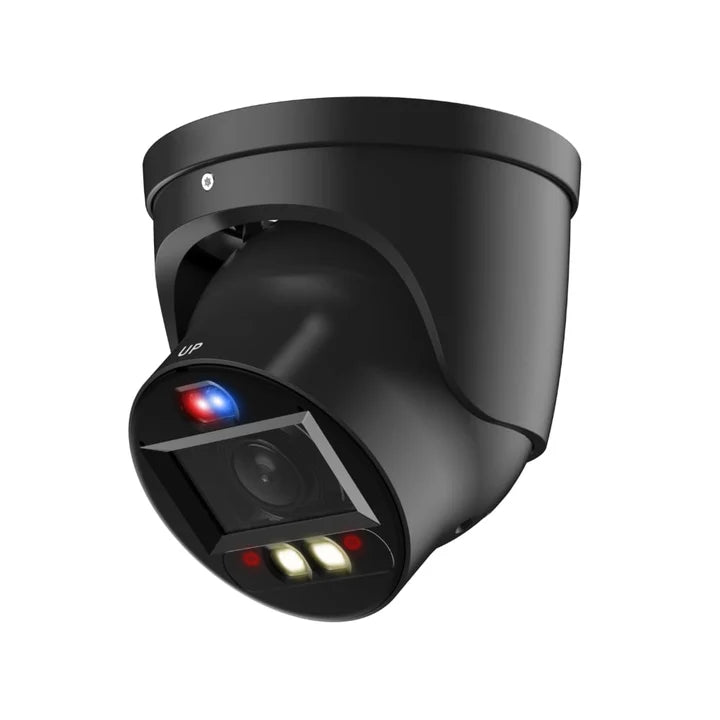

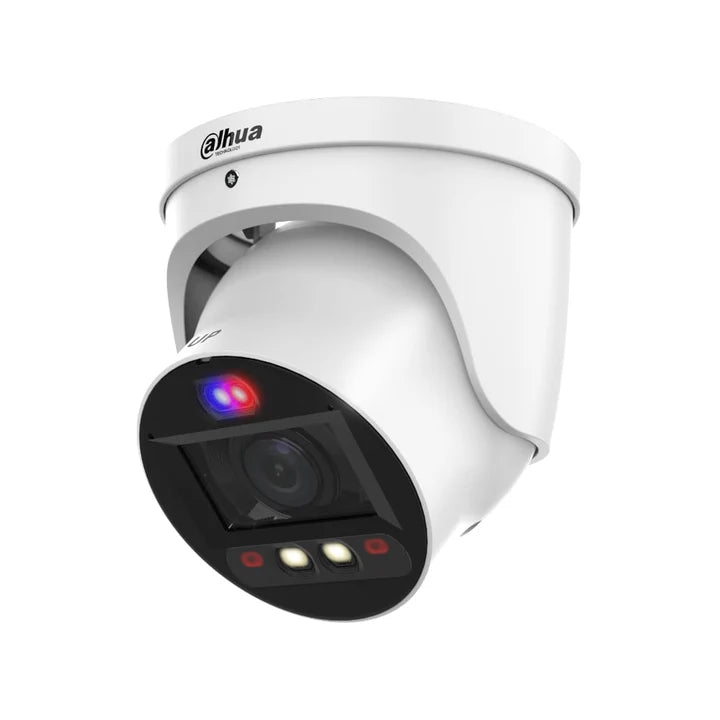

Dahua DH-IPC-HDW3849H-ZAS-PV-ANZ-S2 — 8MP 4K TiOC 3.0 Motorised Vari-Focal AcuPick Active Deterrence Turret

The Dahua DH-IPC-HDW3849H-ZAS-PV-ANZ-S2 is an 8MP 4K TiOC 3.0 network camera designed for applications requiring high-resolution surveillance, intelligent detection and proactive security deterrence. It combines an 8MP 1/2.8" CMOS sensor, motorized vari-focal optics, Smart Dual Illumination, AcuPick and SMD 4.0 in a robust IP67-rated turret design.

With a maximum resolution of 3840 × 2160, the camera provides detailed 4K video suitable for residential, commercial, retail, warehouse and perimeter security applications. The 2.7 mm–13.5 mm motorized vari-focal lens allows the viewing angle to be adjusted according to the installation requirements, providing a wide field of view at the shorter focal length and a more focused view at the telephoto end.

The camera features a F1.0 maximum aperture and combines IR and warm-light illumination. IR illumination reaches up to 50 m, while warm-light illumination reaches up to 40 m, providing flexible monitoring in low-light and night-time conditions.

For intelligent security monitoring, the DH-IPC-HDW3849H-ZAS-PV-ANZ-S2 supports AcuPick, SMD 4.0 and IVS perimeter protection. Tripwire and intrusion functions support human and vehicle classification, helping security systems focus on relevant events rather than general movement.

As part of the TiOC 3.0 active deterrence platform, the camera incorporates red and blue warning lights, a built-in speaker and dual microphones. It supports two-way audio, allowing users to communicate with people at the monitored location or provide an audible warning when required.

The camera also provides 120 dB WDR, 3D noise reduction, BLC, HLC, Smart Illumination, electronic image stabilization and AI SSA to help maintain useful video across varying environmental and lighting conditions.

With H.265, Smart H.265+, Smart H.264+, AI H.265 and AI H.264 support, the camera provides flexible video compression options for different network bandwidth and storage requirements. Local recording is also supported through a MicroSD card up to 512 GB.

Key Features

• 8MP 4K Resolution: Captures video at up to 3840 × 2160 for detailed surveillance.
• 1/2.8" CMOS Sensor: Designed for high-definition imaging and low-light monitoring.
• Motorized Vari-Focal Lens: Adjustable 2.7 mm–13.5 mm focal length for flexible coverage.
• F1.0 Aperture: Supports image capture in low-light conditions.
• Smart Dual Illumination: Combines IR and warm-light LEDs for adaptable night surveillance.
• 50 m IR Illumination: IR illumination reaches up to 50 m.
• 40 m Warm-Light Illumination: Warm-light coverage reaches up to 40 m.
• TiOC 3.0 Active Deterrence: Red and blue warning lights, speaker and audio functions provide proactive deterrence.
• AcuPick: Supports intelligent searching of people and vehicles when used with compatible back-end devices.
• SMD 4.0: Intelligent detection helps distinguish relevant human and vehicle activity.
• Perimeter Protection: Supports intrusion and tripwire detection with human and vehicle classification.
• 120 dB WDR: Helps balance bright and dark areas within the same scene.
• Two-Way Audio: Built-in dual microphones and speaker support communication.
• EIS: Electronic Image Stabilisation helps improve image stability.
• MicroSD Storage: Supports MicroSD cards up to 512 GB.
• PoE: Supports 12 VDC / PoE (802.3af).
• IP67 Protection: Suitable for outdoor installations where protection from dust and water is required.
• Metal Construction: Robust metal casing for security camera installations.

Intelligent Security & AI Features

The DH-IPC-HDW3849H-ZAS-PV-ANZ-S2 combines several intelligent monitoring technologies to assist with security event detection and investigation.

AcuPick

AcuPick uses deep-learning algorithms with compatible back-end devices to help locate and match people and motor vehicles across live or recorded video.

SMD 4.0

SMD 4.0 helps identify human and vehicle targets, providing more targeted motion detection for surveillance applications.

Perimeter Protection

The camera supports:

• Intrusion detection
• Tripwire detection
• Human classification
• Vehicle classification

AI SSA

AI Scene Self-Adaptation (SSA) uses intelligent algorithms to adjust image parameters according to changing scene conditions.

Smart Search

When used with compatible Smart NVR equipment, Smart Search can assist with refined intelligent searches, event extraction and event-video management.

Smart Dual Illumination

The camera uses two types of illumination:

• IR illumination: Up to 50 m
• Warm-light illumination: Up to 40 m

The system provides flexible lighting options for night surveillance, helping maintain visibility when ambient light levels are low.

Motorised Vari-Focal Lens

The 2.7 mm–13.5 mm motorised vari-focal lens provides adjustable coverage for different installation environments.

DORI Distance

DORI (Detect, Observe, Recognize, Identify) is based on the EN-62676-4 standard. These figures describe the ability to distinguish people or objects under defined viewing conditions and do not represent intelligent-function detection distances.

Video & Image Performance

The camera supports multiple image and compression technologies for different surveillance requirements.

• Maximum resolution: 3840 × 2160
• Main stream: 3840 × 2160 @ 1–25/30 fps
• Sub stream: 704 × 576 @ 1–25 fps / 704 × 480 @ 1–30 fps
• Third stream: 1920 × 1080 @ 1–25/30 fps
• H.265
• H.264
• H.264H
• H.264B
• MJPEG (sub stream only)
• Smart H.265+
• Smart H.264+
• AI H.265
• AI H.264
• CBR / VBR / ABR
• ROI
• 120 dB WDR
• 3D NR
• BLC
• HLC
• Defog
• EIS
• Smart Illumination
• Image rotation
• Mirror
• Privacy masking

Audio & Active Deterrence

The camera includes integrated audio and deterrence hardware for interactive security applications.

• Built-in dual microphone
• Built-in speaker
• Two-way talk
• 1-channel audio input
• 1-channel audio output
• 1-channel alarm input
• 1-channel alarm output
• Red and blue sound-and-light alarm
• Audio compression: G.711a; G.711Mu; PCM; G.726; G.723

Storage & Network

The camera supports local and network-based storage options, together with a range of network protocols and management platforms.

• MicroSD card up to 512 GB
• FTP
• SFTP
• NAS
• RJ-45 10/100 Base-T network port
• ONVIF Profile S, Profile G and Profile T
• SDK and API support
• SmartPSS Lite
• DSS
• DMSS
• iOS and Android support

Cyber Security

Security features include:

• Video encryption
• Firmware encryption
• Configuration encryption
• Digest
• WSSE
• Account lockout
• Security logs
• IP/MAC filtering
• X.509 certificate generation and import
• Syslog
• HTTPS
• 802.1x
• Trusted boot
• Trusted execution
• Trusted upgrade

Technical Specifications

Camera

Illumination

Intelligence

Power & Environment
