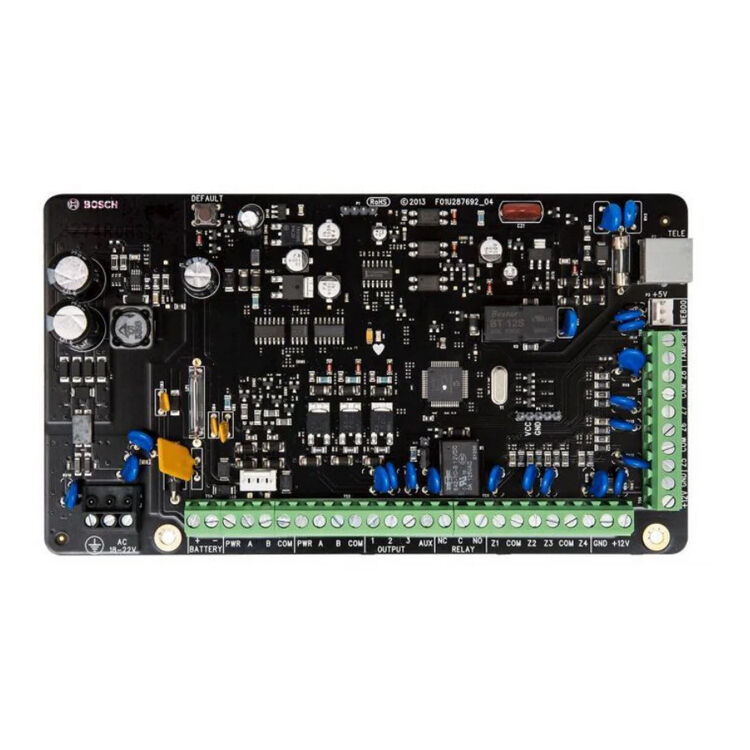

Bosch ICP‑SOL2‑P – Solution 2000 Intrusion Alarm Control PCB (8-Zone)
The ICP‑SOL2‑P is the core printed circuit board for the Bosch Solution 2000 panel—a compact yet powerful control system for residential and light commercial security applications. It supports up to eight fully programmable zones, flexible user access, and a range of communications options (via add-on modules) to facilitate modern alarm reporting and control.
Key Features
- 8 Fully Programmable Zones: Configure security for doors, windows, motion sensors, and more.
- Large User Capacity: Supports a total of 41 user credentials—1 installer code, up to 20 user PIN codes, and up to 20 RF keyfobs.
- Dual Area Partitioning: Split the system into two independently armed areas—ideal for shared spaces like homes and garages.
- Stay / Away Arming Modes: Choose between full system arming or partial-zone arming (Stay mode) as needed.
- Expandable Outputs: Four onboard programmable outputs (AUX + bell), expandable via B308 module to support up to 12 external outputs.
- Multi‑Keypad Support: Accommodates up to four compatible keypads—icon LCD, text LCD, or touchscreen.
- Remote & IP Reporting Compatible: Supports CID, SIA, domestic dial reporting, plus CSV-IP and push notifications when paired with B426‑M or B450‑M communication modules.
- Mobile Control via Bosch RSC+ App: Users can arm/disarm, view event history, trigger outputs, and receive notifications on Android or iOS devices.
Specifications
- Zones: 8 fully programmable (wired)
- User Capacity: 41 total users (1 installer + 20 PIN codes + 20 keyfobs)
- Partitions (Areas): Supports 2 independent areas
- On-board Outputs: 4 programmable outputs (aux and bell), expandable via B308 module up to 12
- Power Input: Primary 240 VAC → 18 VAC at 1.3 A (via TF008 plug pack); secondary backup: 12 V DC / 6.5 Ah SLA battery
- Communications Protocols: Supports CID, SIA, Email, Domestic Dial, and CSV‑IP (with optional communicator modules)
- Operating Conditions: 0 °C to +45 °C; 10–95% relative humidity (non‑condensing)
- Event Log Capacity: Stores up to 256 events
- Enclosure Dimensions (packed): 306 × 262 × 84 mm; Weight: ~2.5 kg
- Warranty: 3-year manufacturer warranty (Australia/New Zealand region)
Applications
- Ideal for single-home or small business security adoption with up to 8 zones.
- Suitable for installations needing separate areas (e.g., home/garage or dual-occupancy spaces).
- Compatible with wireless key fob control via the WE800EV2 receiver.
- Easily upgradeable to IP or cellular communications using optional modules for modern remote reporting.
The Bosch ICP‑SOL2‑P Solution 2000 Control PCB provides a compact yet powerful intrusion system foundation—offering robust zone capacity, flexible user settings, partitioning support, and clear upgrade paths for communications expansion. Backed by a long-term warranty and built to Australian/New Zealand specifications, it's an excellent choice for installers and resellers specifying reliable and scalable security systems.
Warranty: Three years manufactured warranty by Bosch
