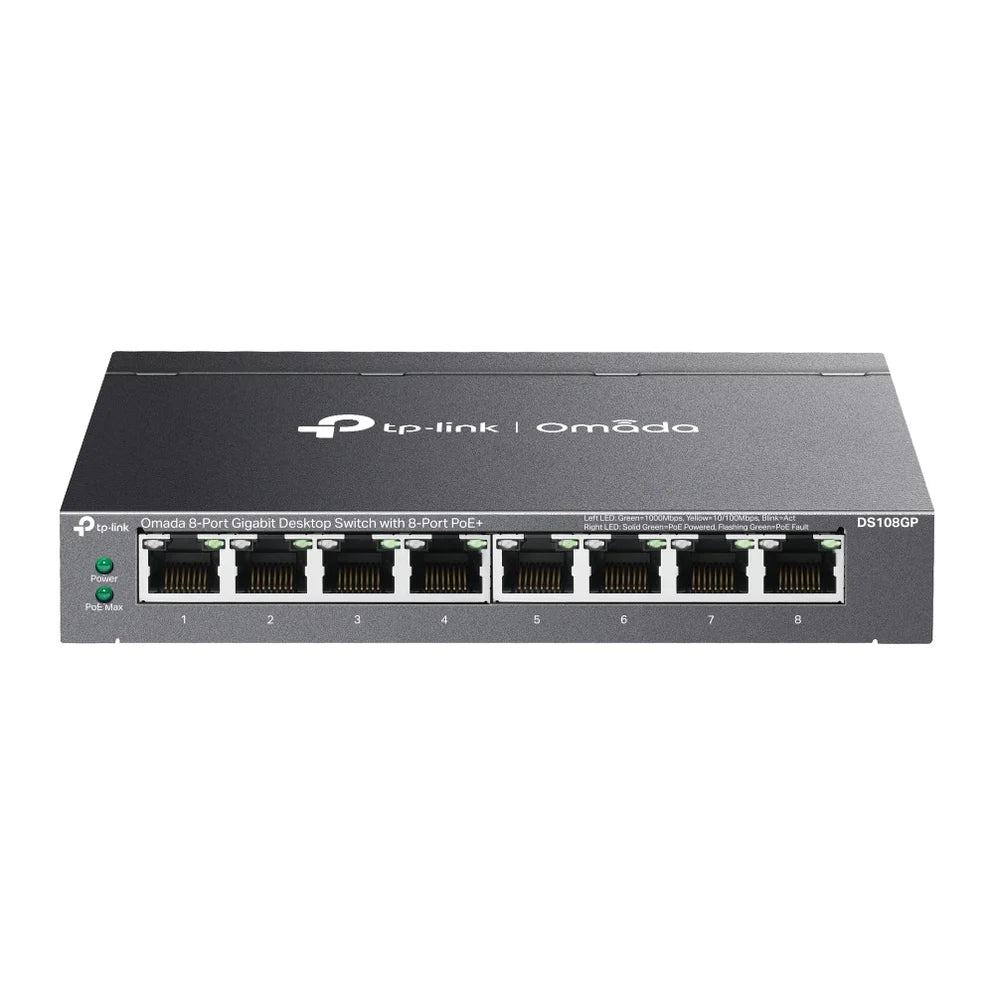

TP-Link Omada DS108GP 8-Port Gigabit PoE Switch | 8 × PoE Ports | Desktop

TP-Link Omada DS108GP 8-Port Gigabit PoE+ Switch | 8 × PoE+ Ports | 65W PoE Budget

The TP-Link Omada DS108GP is an 8-port Gigabit PoE+ switch designed for CCTV systems, wireless access points, VoIP phones and other PoE-powered network devices. All eight Gigabit RJ45 ports support PoE+, allowing compatible devices to receive both network data and power through a single Ethernet cable.

With support for IEEE 802.3af/at, the DS108GP can provide up to 30W per PoE port, with a 65W total PoE power budget across all PoE ports. Its Extend Mode can provide data and power transmission over distances of up to 250 metres, making it particularly useful for IP camera installations where cameras are located further from the network switch.

The switch also features PoE Auto Recovery, which can automatically detect and restart unresponsive or disconnected PoE-powered devices. With a plug-and-play design and no configuration required for basic operation, the DS108GP provides a straightforward networking solution for small business and security installations.

Key Features

• 8 × Gigabit RJ45 Ports — Provides 10/100/1000 Mbps wired network connectivity for compatible devices.

• 8 × PoE+ Ports — All eight ports can deliver network data and power over a single Ethernet cable.

• IEEE 802.3af/at Support — Compatible with standard PoE and PoE+ powered devices.

• Up to 30W Per PoE Port — Provides sufficient power for a wide range of IP cameras, access points and other PoE equipment.

• 65W Total PoE Budget — Shared across all eight PoE ports according to connected device requirements.

• Up to 250m Transmission — Extend Mode supports data and power transmission up to 250m under suitable conditions.

• PoE Auto Recovery — Automatically reboots compatible PoE devices when they become unresponsive or disconnected.

• 802.1p/DSCP QoS — Helps prioritise latency-sensitive network traffic for smoother performance.

• Plug-and-Play — Basic operation requires no complicated configuration or central management.

• Compact Desktop Design — Suitable for offices, CCTV installations, network cabinets and other space-conscious environments.

8-Port Gigabit PoE+ Connectivity

The DS108GP features eight 10/100/1000 Mbps RJ45 ports, all equipped with PoE+ functionality. This allows compatible devices to receive both power and network connectivity using a single Ethernet cable, helping simplify cabling and installation.

The switch can be used with a range of PoE-enabled equipment, including:

• IP security cameras

• Wireless access points

• VoIP phones

• Networked security devices

• Other IEEE 802.3af/at-compatible equipment

65W PoE Power Budget

The DS108GP supports up to 30W of PoE power per individual port, with a 65W total PoE budget shared across all eight ports.

When planning an installation, the combined power requirements of connected devices should be considered to ensure they remain within the switch's available PoE capacity.

250m Extend Mode

For suitable installations, Extend Mode can increase the supported data and power transmission distance to up to 250 metres (820 feet). This can be especially useful for CCTV systems where cameras need to be positioned further away from the central networking equipment.

Actual transmission performance can vary depending on cable quality, connected devices and installation conditions.

PoE Auto Recovery

The DS108GP includes PoE Auto Recovery, which monitors connected PoE devices and can automatically reboot a device if it becomes unresponsive or drops from the network.

This feature can help improve reliability for installations such as CCTV systems where maintaining continuous operation of connected cameras is important.

Quality of Service

Support for 802.1p and DSCP QoS allows network traffic to be prioritised according to application requirements. This can help improve the handling of latency-sensitive traffic such as voice and video data when the network is under load.

Technical Specifications

Ideal For

The TP-Link Omada DS108GP is suitable for:

• IP CCTV camera systems

• Small business networks

• Wireless access point deployments

• VoIP phone installations

• Retail and hospitality environments

• Offices and commercial premises

• Security and surveillance networks

• Installations requiring extended PoE transmission

Important Notes

• The 65W PoE budget is shared across all eight PoE ports.

• Maximum power delivery is 30W per individual PoE port, subject to the switch's overall available PoE budget.

• The 250m transmission distance requires Extend Mode and suitable network cabling and compatible devices.

• Basic operation is plug and play and does not require central management.
