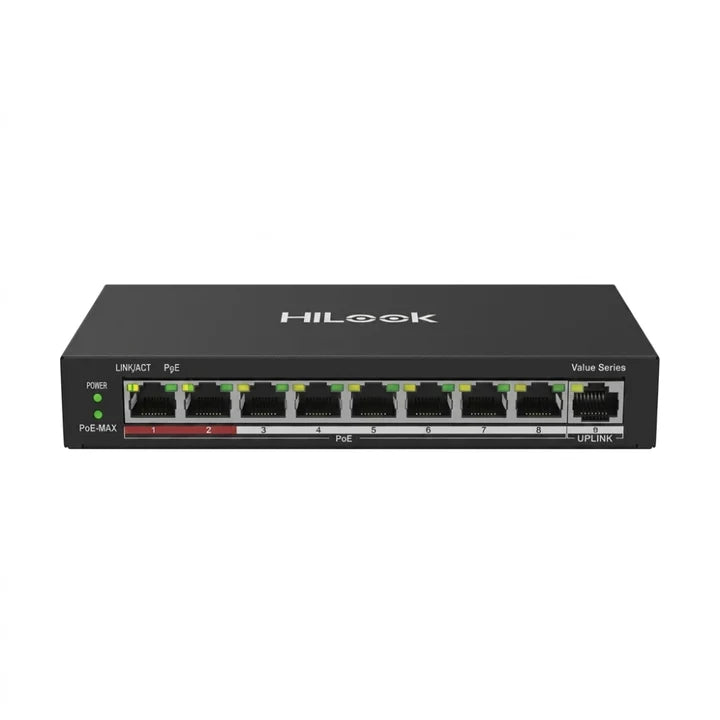

HiLook NS-0109P-60 (B) 9-Port Unmanaged PoE Switch | 8 × PoE Ports | 60W PoE

HiLook NS-0109P-60 9-Port Fast Ethernet Unmanaged PoE Switch | 8 × PoE Ports | 60W PoE Budget

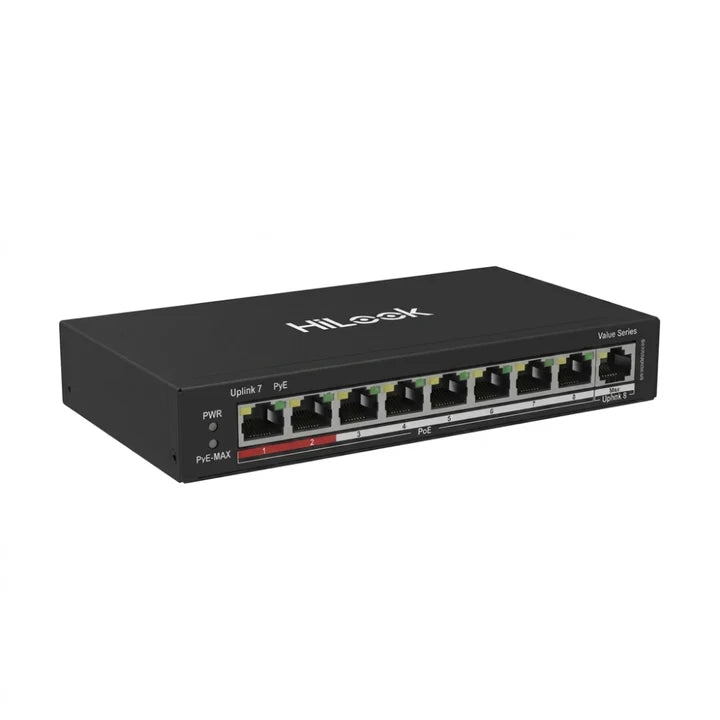

The HiLook NS-0109P-60(B) is a reliable 9-port unmanaged PoE switch designed for CCTV surveillance systems, small networks and other PoE applications. It provides eight 10/100Mbps PoE ports for connecting and powering compatible devices, together with a dedicated 10/100Mbps uplink port for connecting to an NVR, router or wider network.

Supporting IEEE 802.3af and IEEE 802.3at, the switch can deliver up to 30W per PoE port, with a total shared 60W PoE budget. This makes it well suited to powering multiple IP cameras from a single network switch while keeping installation simple and organised.

For installations where cameras are located beyond the standard Ethernet distance, Extend Mode supports transmission distances of up to 250 metres on Ports 1–8. The switch also features 6kV surge protection, a durable metal housing and a fan-free design for quiet, dependable operation.

Key Features

• 9-Port Fast Ethernet Switch — Includes 8 × 10/100Mbps PoE ports plus 1 × 10/100Mbps uplink port.
• 8 PoE Ports — Connect and power up to eight compatible PoE devices using a single network cable per device.
• IEEE 802.3af/at Support — Compatible with standard PoE and PoE+ devices.
• 60W Total PoE Budget — Provides up to 60W of shared PoE power across all eight PoE ports.
• Up to 30W Per Port — Each PoE port supports up to 30W, subject to the overall 60W power budget.
• 250m Long-Range Transmission — Extend Mode enables network and PoE transmission up to 250m on Ports 1–8 when used with suitable equipment and cabling.
• 6kV PoE Surge Protection — Helps protect connected PoE equipment from electrical surges.
• Unmanaged Plug-and-Play Design — No complex configuration is required; simply connect compatible devices and the network.
• Dedicated Uplink Port — The 10/100Mbps uplink provides connectivity to an NVR, router or network switch.
• Fan-Free Operation — Silent cooling design reduces noise and moving parts.
• Durable Metal Housing — Provides a robust enclosure for CCTV and network installations.
• Store-and-Forward Switching — Provides reliable packet processing and forwarding.

Technical Specifications

Ports & Switching

PoE Power

Power & Construction

Ideal For

The HiLook NS-0109P-60 is suitable for:

• 8-camera CCTV surveillance systems
• IP security camera installations
• Small offices and commercial properties
• Retail and hospitality environments
• Long-distance CCTV deployments
• PoE access points and compatible network devices
• NVR-based security systems

Important PoE Note

The 60W PoE budget is shared across all eight PoE ports. Although each port can support up to 30W, the switch cannot supply 30W simultaneously to all eight ports. Actual available power depends on the combined requirements of the connected PoE devices.

The 250m transmission distance is available when using the switch's Extend Mode and depends on compatible equipment, network configuration, cable quality and installation conditions.
