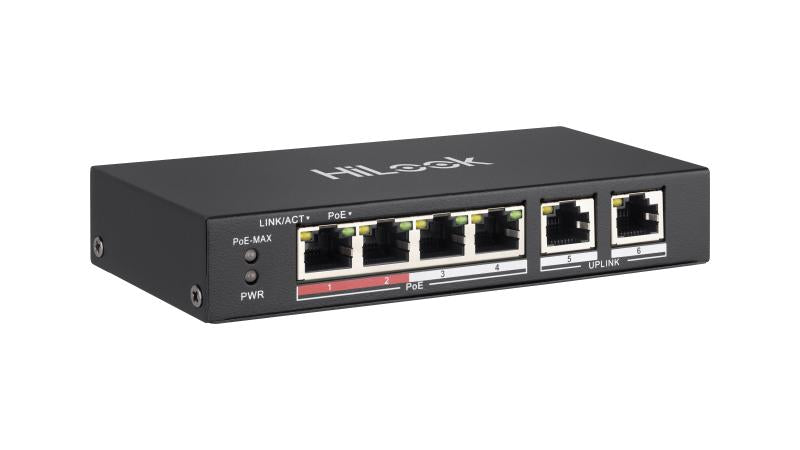

HiLook NS-0106P-35 6-Port Unmanaged PoE Switch | 4 × PoE+ Ports | 35W PoE Budget

HiLook NS-0106P-35 6-Port Fast Ethernet Unmanaged PoE Switch | 4 × PoE Ports | 35W PoE Budget

The HiLook NS-0106P-35 is a compact 6-port unmanaged PoE switch designed to provide both network connectivity and power for compatible IP cameras, access points and other PoE devices. It features four 10/100Mbps PoE ports plus two additional 10/100Mbps RJ45 uplink ports, making it a practical solution for small CCTV and network installations.

Supporting IEEE 802.3af and IEEE 802.3at PoE standards, the switch provides up to 30W per PoE port, with a total shared 35W PoE power budget. Its long-range transmission function can extend network and PoE transmission up to 250 metres on supported ports, making it particularly useful for CCTV installations where cameras are located further from the network equipment.

The NS-0106P-35 features a durable metal housing, fan-free design and 6kV surge protection on the PoE ports, providing reliable operation in a range of installation environments.

Key Features

• 6-Port Fast Ethernet — Includes 4 × 10/100Mbps PoE ports and 2 × 10/100Mbps RJ45 ports for connecting PoE devices and network equipment.

• IEEE 802.3af/at PoE — Supports standard PoE and PoE+ devices for convenient power and data transmission over Ethernet cabling.

• 35W Total PoE Budget — Provides up to 35W of shared PoE power across the four PoE ports.

• Up to 30W Per PoE Port — Each PoE port can deliver up to 30W when sufficient power is available within the total PoE budget.

• Up to 250m Long-Range Transmission — Supports extended data and power transmission on Ports 1–4 for compatible long-distance CCTV deployments.

• 6kV Surge Protection — Helps protect connected PoE equipment against electrical surges on the PoE ports.

• High-Priority Ports — Ports 1 and 2 are configured as high-priority ports for suitable applications.

• Plug-and-Play Operation — Unmanaged design provides straightforward installation without requiring complex network configuration.

• Fan-Free Design — Silent operation with no cooling fan, making it suitable for offices, homes and other noise-sensitive environments.

• Durable Metal Housing — High-strength metal enclosure provides a robust solution for everyday network installations.

• Store-and-Forward Switching — Provides reliable packet handling and forwarding across the network.

Technical Specifications

PoE Power Distribution

The switch provides a 35W shared PoE budget across its four PoE ports. While each individual PoE port can support up to 30W, the total power supplied to all connected PoE devices cannot exceed the available 35W budget.

Ideal For

The HiLook NS-0106P-35 is suitable for:

• IP CCTV camera installations

• Small surveillance systems

• Network cameras requiring PoE

• Wireless access points

• VoIP and other compatible PoE devices

• Long-distance CCTV deployments

• Home, office and small commercial networks

Important Note

The 250m long-range transmission capability depends on compatible devices, network configuration, cabling quality and installation conditions. The 35W PoE budget is shared across all four PoE ports and is not 35W per port.
