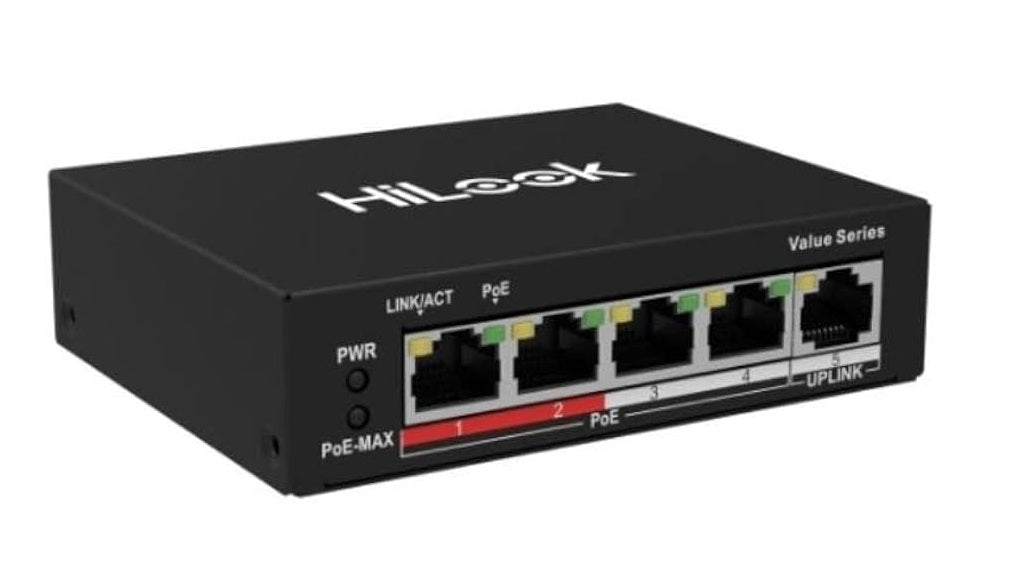

HiLook NS-0105P-35(B) 5-Port PoE Network Switch | 4 × PoE Ports | 35W Budget | Desktop

HiLook NS-0105P-35(B) 5-Port Fast Ethernet Unmanaged PoE Switch | 4 × PoE Ports | 35W Budget

The HiLook NS-0105P-35(B) is a compact 5-port unmanaged PoE switch designed for small CCTV, intercom and network installations. It provides four 10/100Mbps PoE ports for connecting and powering compatible devices, along with one 10/100Mbps Ethernet uplink port for connection to an NVR, router or other network equipment.

With support for IEEE 802.3af and IEEE 802.3at, the switch provides up to 30W per PoE port with a combined 35W PoE power budget. Its Extend Mode supports long-distance transmission of up to 250 metres on Ports 1–4, making it suitable for installations where cameras or other PoE devices are located further from the network equipment.

The NS-0105P-35(B) features a durable metal housing and fan-free design for quiet operation. 6kV surge protection helps protect connected equipment, while automatic MAC address learning and ageing provide straightforward plug-and-play network operation.

Key Features

• 5-Port Fast Ethernet — 4 × 10/100Mbps PoE ports plus 1 × 10/100Mbps Ethernet uplink port.

• 4 PoE Ports — Supplies both network data and power to compatible cameras, intercoms and other PoE devices.

• 35W Total PoE Budget — Provides up to 35W of shared PoE power across the four PoE ports.

• Up to 30W Per Port — Each PoE port supports up to 30W, subject to the overall 35W power budget.

• IEEE 802.3af/at Support — Compatible with standard PoE and PoE+ devices.

• 250m Long-Range Transmission — Extend Mode supports transmission distances of up to 250m on Ports 1–4 with suitable equipment and cabling.

• 6kV Surge Protection — All ports feature protection against electrical surges to help safeguard connected network equipment.

• Unmanaged Plug-and-Play Design — Requires no complicated network configuration.

• Automatic MAC Learning & Ageing — Automatically manages MAC address information for efficient network operation.

• High-Priority Ports — Ports 1 and 2 are configured as high-priority ports.

• Fan-Free Metal Housing — Provides quiet operation and a durable enclosure for CCTV and network installations.

• Store-and-Forward Switching — Provides reliable packet processing and forwarding.

Technical Specifications

Network Parameters

PoE Power

General Specifications

35W PoE Power Budget

The NS-0105P-35(B) has a 35W shared PoE budget across its four PoE ports. While an individual port can provide up to 30W, the combined power consumption of all connected PoE devices must remain within the total 35W available budget.

250m Extend Mode

When Extend Mode is enabled, Ports 1–4 support network and PoE transmission distances of up to 250 metres. Actual performance depends on cable quality, connected devices, network configuration and installation conditions.

Ideal For

The HiLook NS-0105P-35(B) is suitable for:

• Small IP CCTV systems

• Security cameras requiring PoE

• Video intercom installations

• Residential security systems

• Small offices and commercial premises

• Long-distance CCTV connections

• Other compatible PoE network devices
