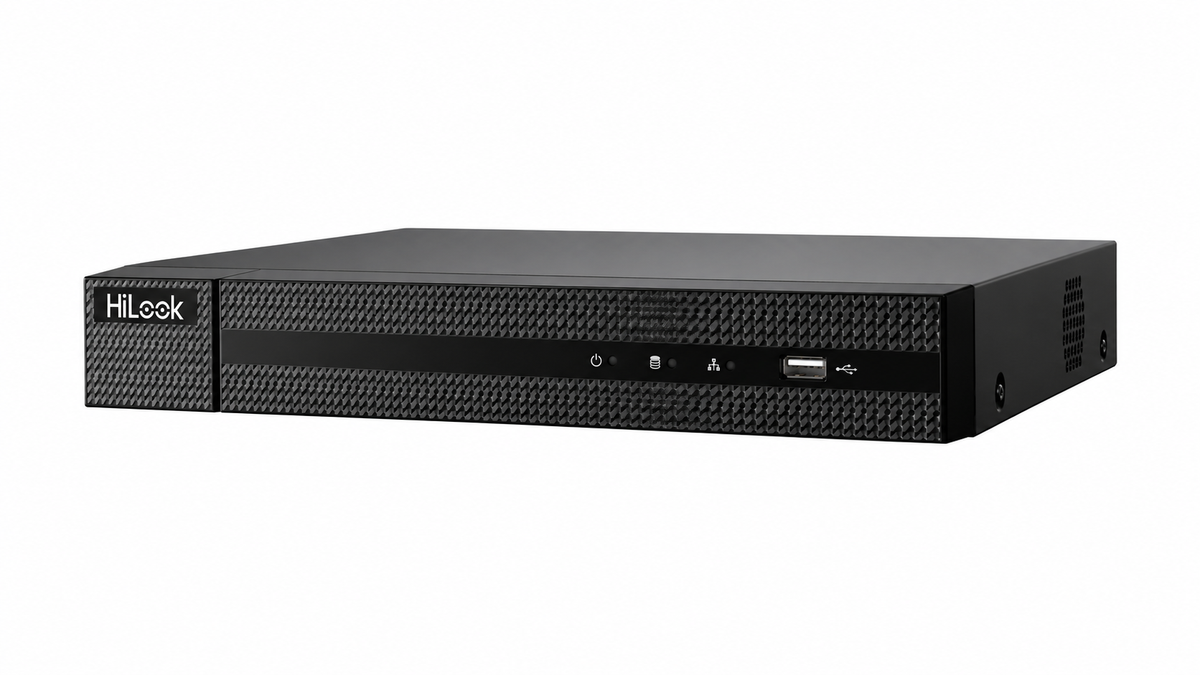

HiLook NVR-104MH-K-4P Pro Series 4CH 4K PoE NVR — Australian Stock & 3-Year Warranty

The HiLook NVR-104MH-K-4P is a compact 4-channel Pro Series network video recorder designed for small residential and commercial CCTV installations. With 4 built-in PoE ports, it provides plug-and-play connection for compatible IP cameras while supplying both network connectivity and power through a single Ethernet cable.

Supporting up to 12MP recording resolution, 40 Mbps incoming bandwidth and advanced H.265+/H.265/H.264+/H.264 compression, this NVR provides flexible recording and efficient storage management. It also delivers 4K HDMI output, up to 80 Mbps outgoing bandwidth and powerful decoding capabilities for high-resolution camera systems.

Built-in Facial Recognition, Perimeter Protection and Motion Detection 2.0 provide intelligent security monitoring, while supported camera-side analytics include ANPR, VCA, human and vehicle recognition and throwing-object detection. With a SATA interface supporting up to 16TB, Gigabit networking and 4 × PoE ports with a 50W total PoE budget, it is well suited to homes, offices, retail stores and small commercial properties.

Key Features

• 4-Channel IP NVR — Supports up to 4 IP camera inputs with plug-and-play PoE connectivity.

• 12MP Recording Support — Supports recording resolutions up to 12MP for high-detail surveillance.

• 4 PoE Ports — Four RJ-45 PoE interfaces provide both network connectivity and power to compatible cameras.

• 50W PoE Budget — Supports IEEE 802.3af/at with a total PoE power output of up to 50W.

• 4K HDMI Output — Supports HDMI output up to 3840 × 2160 at 30Hz.

• Advanced AI Analytics — Includes Facial Recognition, Perimeter Protection and Motion Detection 2.0.

• Camera-Side AI — Supports Facial Recognition, Perimeter Protection, ANPR, VCA, throwing-object detection and Motion Detection 2.0 when supported by connected cameras.

• Human & Vehicle Recognition — Intelligent video analysis helps reduce false alarms by distinguishing people and vehicles.

• Efficient H.265+ Compression — Helps reduce bandwidth and storage requirements while maintaining video quality.

• High Decoding Capacity — Supports up to 2-ch @ 12MP, 4-ch @ 8MP, 8-ch @ 4MP or 16-ch @ 1080p when AI is disabled.

• Up to 16TB Storage — One SATA interface supports an HDD with capacity up to 16TB.

• Gigabit Network Interface — Includes a 10/100/1000 Mbps self-adaptive Ethernet interface.

• Two-Way Audio — Supports one-channel two-way audio through the RCA audio interface.

• Compact Pro Series Design — 320 × 240 × 48mm chassis with a weight of approximately 1kg without HDD.

Intelligent Security Features

The NVR-104MH-K-4P-B provides advanced AI functions both directly through the recorder and through connected cameras.

AI by Device

• Facial Recognition

• Perimeter Protection

• Motion Detection 2.0

AI by Camera

• Facial Recognition

• Perimeter Protection

• Throwing Objects from Building

• Motion Detection 2.0

• ANPR

• VCA

Facial Recognition

The recorder supports face picture comparison, human face capture and face picture search. It supports up to 16 face picture libraries with up to 20,000 face pictures in total, with each image up to 4MB and total library capacity up to 1GB.

Facial detection and analytics performance supports 1-ch @ 8MP.

Perimeter Protection

Device-side perimeter protection provides 1-channel, 4MP video analysis for human and vehicle recognition to help reduce false alarms. Camera-side perimeter protection is supported across all channels when compatible cameras are connected.

Motion Detection 2.0

Motion Detection 2.0 is supported across all channels by camera, providing intelligent motion analysis for supported surveillance cameras.

Video & Audio

Recording & Decoding

PoE & Network

Storage & Interfaces

Operating Conditions

• Operating Temperature: -10°C to 55°C

• Operating Humidity: 10% to 90%

• Power Supply: 48 VDC, 1.35A

• PoE Standard: IEEE 802.3af/at

• PoE Budget: Up to 50W

Ideal for: Homes, offices, retail stores, small commercial premises, warehouses and other CCTV installations requiring a compact 4-channel PoE NVR with 4K output and advanced AI security features.

Note: Hard drive is not included unless specifically selected in the cart.
