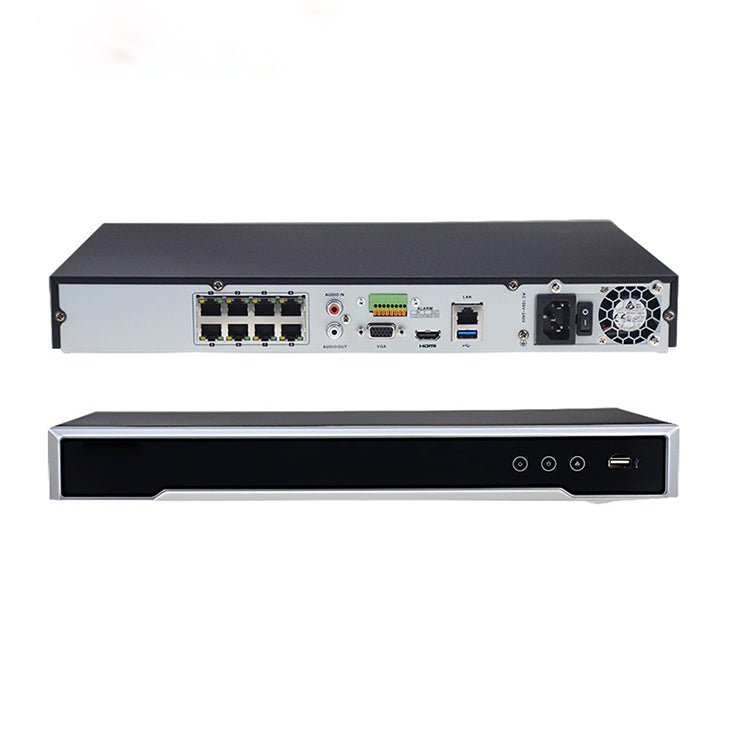

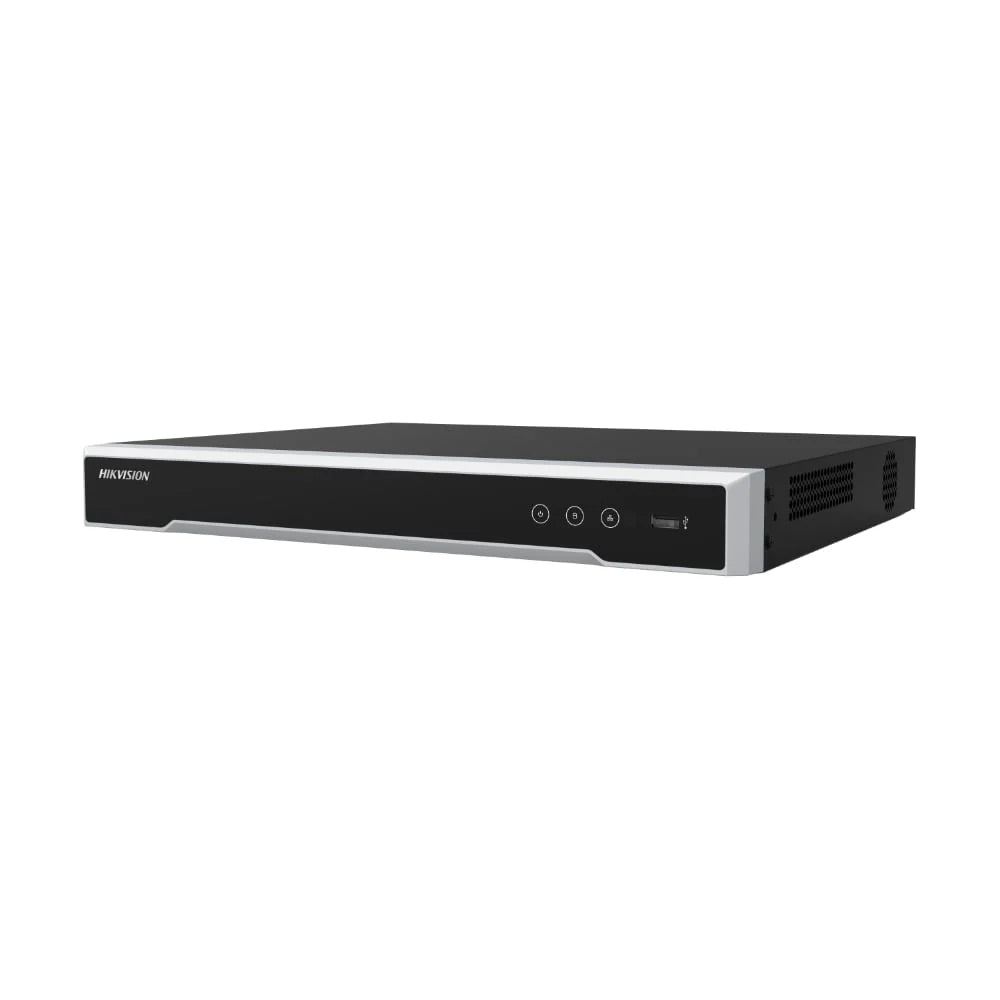

Hikvision DS-7608NI-M2/8P 8 Channel 8 PoE 8K NVR | 32MP Support & Up to 32TB Storage

The Hikvision DS-7608NI-M2/8P is a high-performance 8-channel Network Video Recorder (NVR) designed for advanced IP CCTV systems in homes, businesses, retail stores, warehouses and commercial properties. With 8 built-in PoE ports, support for IP cameras up to 32MP, high incoming bandwidth and 8K HDMI output, this M Series NVR provides a powerful platform for high-resolution surveillance systems.

Supporting up to 8 IP cameras, the DS-7608NI-M2/8P can handle up to 128 Mbps incoming bandwidth and up to 256 Mbps outgoing bandwidth. It supports advanced Hikvision IP cameras and third-party ONVIF-compatible cameras, providing flexibility when building or expanding a CCTV system.

The NVR delivers impressive decoding performance, supporting up to 2 channels at 32MP, 3 channels at 24MP, 4 channels at 16MP, 6 channels at 12MP or 8 channels at 8MP, all at up to 30fps. Its 8K HDMI output allows compatible displays to showcase high-resolution surveillance footage with exceptional clarity.

Two built-in SATA bays support up to 16TB per HDD, providing a maximum storage capacity of 32TB. This makes the recorder suitable for systems requiring extended recording retention, whether using continuous or motion-based recording.

With 8 integrated PoE ports, the NVR can supply power and network connectivity to compatible cameras through Ethernet cabling, simplifying installation and reducing the need for separate power supplies.

Key Features

• 8-Channel IP NVR — Supports up to 8 network cameras for medium-sized CCTV installations.

• 8 Built-in PoE Ports — Connect and power compatible IP cameras directly through the NVR.

• Up to 32MP IP Camera Support — Supports high-resolution IP video inputs up to 32MP.

• 8K HDMI Output — Supports 7680 × 4320 at 30Hz for ultra-high-definition monitoring.

• 128 Mbps Incoming Bandwidth — Designed to handle multiple high-resolution IP camera streams.

• 256 Mbps Outgoing Bandwidth — Provides high-capacity video forwarding for network applications.

• Advanced Decoding — Up to 2CH @ 32MP, 3CH @ 24MP, 4CH @ 16MP, 6CH @ 12MP or 8CH @ 8MP at 30fps.

• H.265+ Compression — Helps reduce storage and bandwidth requirements while maintaining video quality.

• 32TB Maximum Storage — Two SATA interfaces support up to 16TB per HDD.

• 8-Channel Synchronous Playback — Review footage from multiple cameras simultaneously.

• ONVIF Support — Supports integration with compatible third-party IP cameras.

• 4 Alarm Inputs / 1 Alarm Output — Supports compatible external alarm devices.

• Two-Way Audio — Supports one-channel two-way audio through RCA.

• Cybersecurity Protection — Includes secure boot, signed firmware, HTTPS encryption, IP/MAC filtering, user access logs and brute-force protection.

• Compact 1U Design — Suitable for professional CCTV installations where space efficiency is important.

Technical Specifications

Cybersecurity Features

The DS-7608NI-M2/8P includes multiple security features designed to help protect the CCTV system and recorded data, including:

• Secure Boot

• Secure Component Verification (SCV)

• Signed Firmware

• HTTPS Encryption

• AES128 live view and playback stream encryption

• IEEE 802.1X network access control

• IP and MAC address filtering

• Password protection

• Brute-force delay protection

• User access logging

• Centralised certificate management

• Digest authentication

Ideal Applications

The Hikvision DS-7608NI-M2/8P is ideal for home security, retail stores, offices, warehouses, factories, commercial buildings, car parks and medium-sized CCTV installations. With 8 PoE ports, 32MP camera support, 8K output and up to 32TB of storage, it provides a scalable foundation for a high-resolution Hikvision IP surveillance system.
