Description
Description
Hikvision DS-PK1-LRT-HWB Wired LCD Keypad with Card Reader | Hardwired Alarm Controller

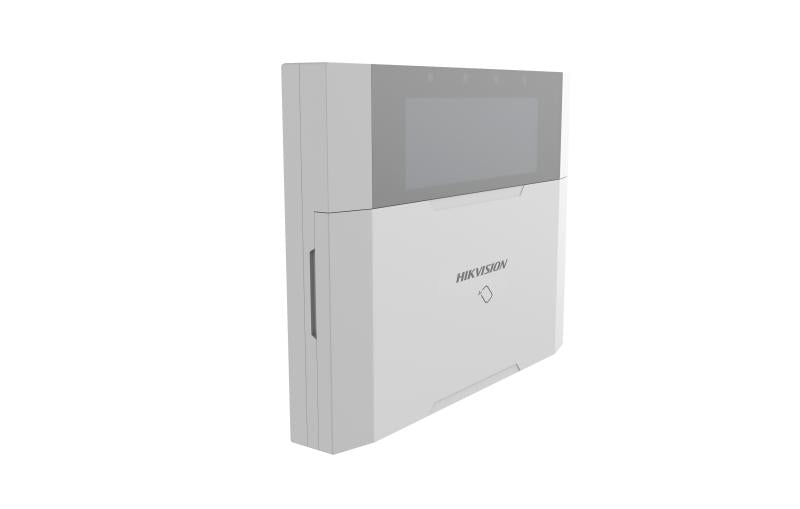

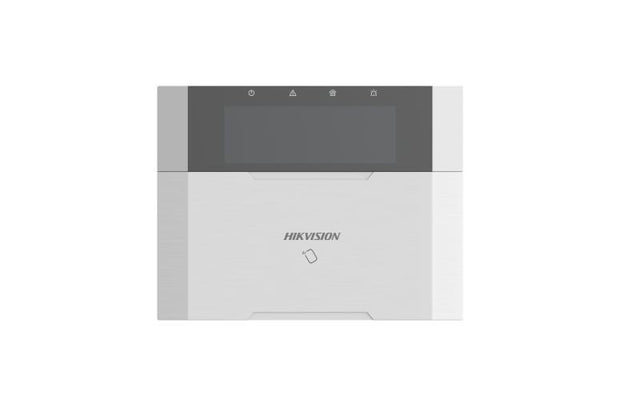

The Hikvision DS-PK1-LRT-HWB is a wired LCD keypad with a built-in tag/card reader, designed for use with compatible Hikvision AX Hybrid Pro hardwired alarm controllers. It provides convenient local access to the alarm system, allowing users to arm, disarm and manage security functions directly from the keypad.
Featuring an LCD screen, built-in tag reader, Speed-X bus, alarm inputs and alarm output, the DS-PK1-LRT-HWB provides flexible functionality for professional alarm installations. Dedicated function keys and one-touch arming make everyday operation simple, while the built-in buzzer and visual indicators provide clear system status information.
Key Features
-
LCD Screen Display — Provides clear system information and status display.
-
Built-in Tag Reader — Includes 1 built-in tag reader for compatible access and alarm control.
-
One-Touch Arming — Supports arming without entering a password.
-
Fire, Panic & Medical Alarm Keys — Dedicated keys provide convenient emergency alarm activation.
-
Alarm Inputs & Output — Includes 2 on-board alarm inputs and 1 on-board alarm output.
-
Speed-X Bus — Includes 1 RS-485 Speed-X bus connection.
-
433MHz RF Frequency — Features 433MHz wireless transmission.
-
64 Keyfob Support — Supports up to 64 keyfobs.
-
Built-in Buzzer — Provides audible keypad notifications.
-
Tamper Protection — Includes a back-cover tamper switch.
-
Multiple Status Indicators — Power, faults, armed and alarm indicators provide clear system status.
-
White Backlight — Keypad buttons feature white backlighting.
-
One-Touch Functionality — Dedicated function keys provide quick access to common alarm operations.
Hardware Features
| Specification | Details |
|---|---|
| Tag Reader Built-in | 1 Built-in Tag Reader |
| Serial Port | 1 TTL Serial Port |
| Tamper-Proof | 1 Back-cover Tamper-switch (Will be damaged when tamper triggered) |
| Buzzer | 1 On-board Buzzer |
| Function Keys | 8 Function keys: Query, Away Arm, Stay Arm, Disarm, Alarm Output, Project, Left, Right |
| RS-485 | 1 Speed-X bus |
| Alarm Input | 2 On-board Alarm inputs |
| Alarm Output | 1 On-board Alarm output |
Electrical Characteristics
| Specification | Details |
|---|---|
| Power Supply | 10.2 to 14.4 VDC |
| Typical Voltage | 12 VDC |
| Maximum Current | 150mA @12VDC |
| Quiescent Current | 72mA @12VDC |
Wireless Transmission
| Specification | Details |
|---|---|
| RF Frequency | 433MHz |
Display & Indicators

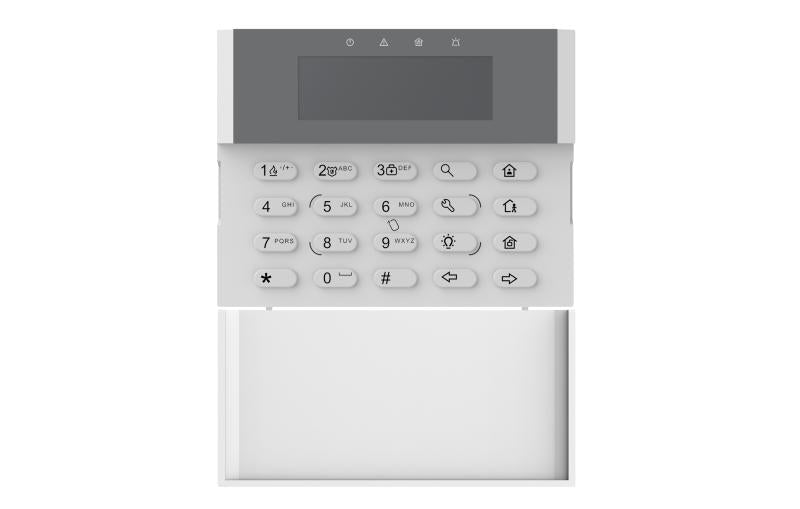

The DS-PK1-LRT-HWB features an LCD display with numeric keys from 0 to 9, *, #, along with multiple visual status indicators.
| Indicator | Status |
|---|---|
| Power | Green |
| Faults | Fault-Orange / Alert-Flashing orange / Find me mode-flashing green |
| Armed | Blue |
| Alarm | Red |
| Keypad Button Backlight | White |
| Display Screen | LCD Screen |
General Specifications
| Specification | Details |
|---|---|
| Dimensions (W × H × D) | 150mm × 115mm × 28mm |
| Colour | White |
| Operating Temperature | -10°C to +55°C (14°F to 131°F) |
| Operating Humidity | 10%–90% |
Device Management
-
Keyfob: Supports up to 64 keyfobs
Convenient Alarm System Control
The Hikvision DS-PK1-LRT-HWB LCD Keypad with Card Reader is designed to provide convenient local control for compatible hardwired alarm systems. With its LCD display, tag reader, dedicated alarm keys, Speed-X bus, alarm inputs and output, it is well suited to professional residential and commercial security installations.
Ideal Applications
-
Residential alarm systems
-
Homes and villas
-
Offices
-
Retail stores
-
Warehouses
-
Commercial properties
-
Hikvision AX Hybrid Pro alarm systems
-
Hardwired alarm controller installations
