Dahua DHI-NVR5864-AI/ANZ 64-Channel 32MP WizSense AcuPick AI NVR | 8 HDD Bays | RAID

Dahua 64 Channel WizSense AI NVR | DHI-NVR5864-AI/ANZ | AcuPick | 8 HDD Bays | RAID 0/1/5/6/10 | No PoE

The Dahua DHI-NVR5864-AI/ANZ is a high-performance 64-channel 5-Series WizSense AI Network Video Recorder designed for large-scale commercial, industrial and enterprise CCTV installations. With support for cameras up to 32 MP, advanced AcuPick search, intelligent AI analytics and 384 Mbps network bandwidth, it provides a powerful platform for managing high-resolution IP surveillance systems.

Featuring eight SATA HDD bays with support for RAID 0/1/5/6/10, the NVR is designed for high-capacity and reliable video storage. Dual Gigabit network ports, dual HDMI and dual VGA outputs, and support for up to 64-channel multi-screen display make it well suited to security control rooms and large surveillance environments.

The NVR provides AI processing for face detection, face recognition, perimeter protection and SMD Plus, while compatible cameras can provide additional analytics including ANPR, video metadata, people counting, stereo analysis, crowd distribution, vehicle density and heat map. With no built-in PoE ports, cameras can be connected through external PoE switches for flexible network deployment.

Key Features

• 64-Channel Network Video Recorder — Supports up to 64 IP camera channels for large-scale surveillance installations.
• 32MP Ultra-High-Resolution Support — Supports IP cameras with resolutions up to 32 MP for highly detailed video surveillance.
• WizSense AI Technology — Provides intelligent video analytics including face detection, face recognition, perimeter protection and SMD Plus.
• AcuPick Technology — Enables intelligent video search across up to 32 channels for faster event investigation and evidence retrieval.
• Advanced AI by Camera — Supports face detection, face recognition, video metadata, perimeter protection, SMD Plus, ANPR, people counting, stereo analysis, heat map and vehicle density through compatible cameras.
• 8 HDD Bays — Provides eight SATA interfaces for high-capacity video storage, with support for drives up to 16 TB each.
• RAID 0/1/5/6/10 Support — Provides flexible storage configurations for performance, capacity and data redundancy.
• 384 Mbps Bandwidth — Supports up to 384 Mbps incoming, recording and outgoing bandwidth with AI disabled.

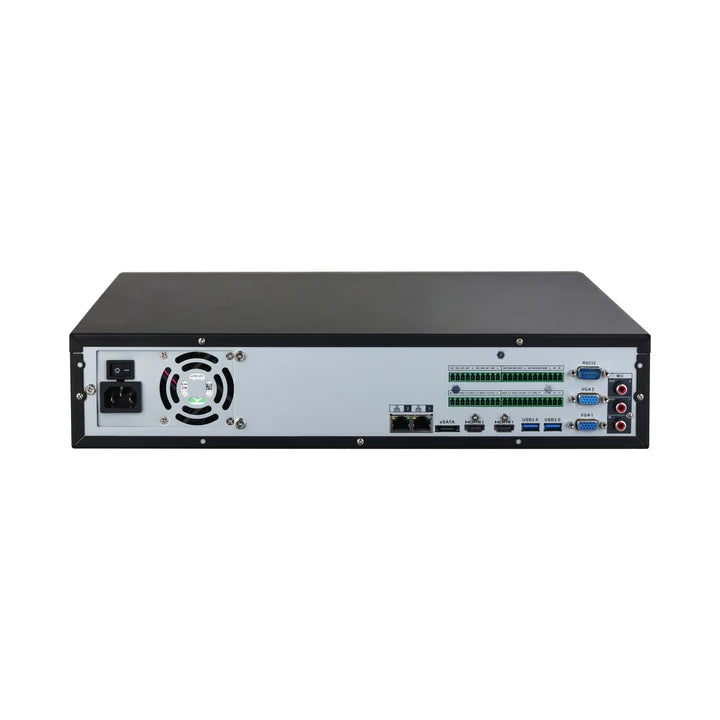

• Dual Gigabit Network Ports — Two 10/100/1000 Mbps RJ-45 Ethernet interfaces support flexible network configurations including load balancing and fault tolerance.
• Professional Display Outputs — Includes two HDMI and two VGA outputs with support for 4K display and multi-screen monitoring.
• 64-Channel Display — Main screen supports 1/4/8/9/16/25/36/64-channel viewing configurations.
• Enterprise Alarm Connectivity — Provides 16 alarm inputs and 8 alarm outputs, including a 12 V 1 A power output.
• Multiple Connectivity Options — Includes USB 2.0/3.0, eSATA, RS-232 and dual RS-485 interfaces.
• Flexible Installation — Designed for both rack-mounted and desktop installation.
• Embedded Linux Platform — Provides a dedicated operating environment with Web and Local GUI management.
• Mobile Monitoring — Supports iOS and Android mobile access through compatible Dahua applications.
• Security Baseline 2.3 — Incorporates Dahua's security baseline for enhanced system protection.

Technical Specifications

Ideal for Large-Scale CCTV Systems

The Dahua DHI-NVR5864-AI/ANZ is suited to commercial buildings, warehouses, industrial facilities, retail sites, campuses, security control rooms and enterprise surveillance systems requiring high-resolution recording, intelligent analytics and reliable long-term storage. Its combination of 64-channel capacity, 32MP camera support, AcuPick, eight HDD bays and RAID protection makes it a scalable solution for demanding IP CCTV deployments.

Note: This model does not include built-in PoE ports. Cameras should be connected through suitable external network switches or PoE equipment.
