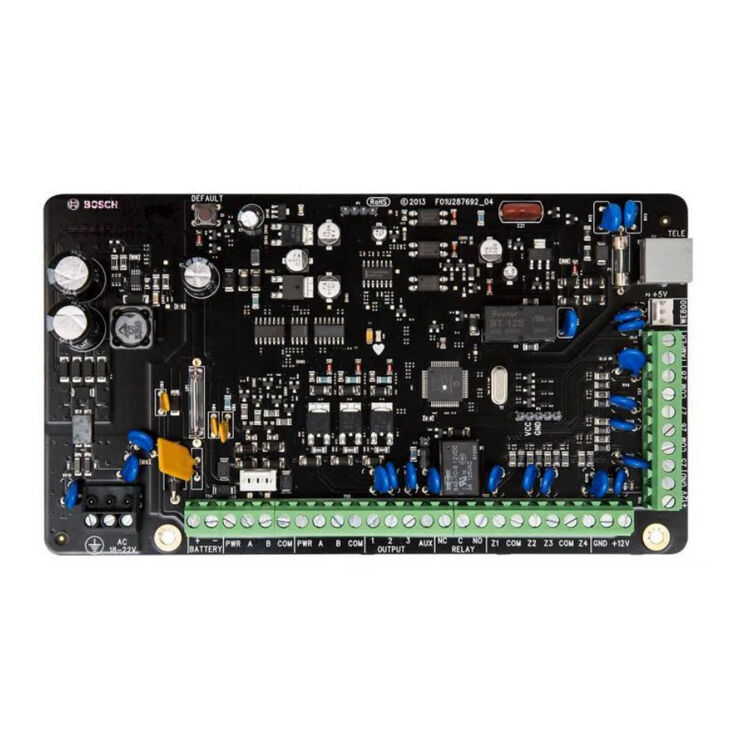

Bosch Solution 3000 Alarm Control Panel PCB | 16-Zone | ICP-SOL3-P
Bosch Solution 3000 Alarm Control Panel PCB | 16-Zone | ICP-SOL3-P is backordered and will ship as soon as it is back in stock.
Pickup available at 13/59 Paraweena Drive
Usually ready in 2 hours
Care information
Care information
To keep your CCTV, security and electrical equipment performing reliably, we recommend:
- Clean gently: Wipe lenses, sensors and housings with a soft, dry microfibre cloth. Avoid harsh chemicals and abrasive cleaners.
- Keep ventilated: Install recorders, switches and power supplies in a cool, dry, well-ventilated spot, and don’t block the vents.
- Protect from power surges: Use a surge protector or UPS where possible to safeguard your security system.
- Check connections regularly: Inspect cables, seals, mounting screws and connectors once or twice a year, especially after storms or extreme heat.
- Test your system: Check alarms, sensors and camera views regularly to make sure everything is working as it should.
Delivery and Shipping
Delivery and Shipping
Orders are processed within 1 business day. Free standard shipping applies to orders of $300 or more within the metropolitan area (2-5 business days). Express shipping is available at checkout. For full delivery, shipping and returns details, see our Shipping Policy.
Bosch Solution 3000 Alarm Control Panel PCB | 16-Zone | ICP-SOL3-P
Bosch Solution 3000 Alarm Control Panel PCB | 16-Zone | ICP-SOL3-P is backordered and will ship as soon as it is back in stock.
Description
Description
Bosch Solution 3000 Alarm Control Panel PCB | 16-Zone | ICP-SOL3-P
The Bosch ICP-SOL3-P Solution 3000 Alarm Control PCB is a reliable and flexible intrusion alarm control panel designed for residential and light commercial security applications. Supporting up to 16 programmable zones and two independently controlled partitions, it provides a versatile foundation for building a customised security alarm system.
The Solution 3000 supports wired and wireless security devices, multiple user credentials and up to four keypads. With compatible communication modules, the system can also provide remote alarm reporting and mobile control, making it suitable for both new installations and system upgrades.
Key Features
- 16 Programmable Zones — Supports up to 16 alarm zones for flexible sensor configuration.
- 2 Independent Partitions — Allows the system to be divided into two separately controlled security areas.
- Up to 32 User Codes / RF Credentials — Supports multiple users and remote credentials.
- Wireless Device Support — Compatible with Bosch wireless solutions including RADION and WE800EV2.
- Up to 4 Keypads — Supports compatible Icon, text and touchscreen keypads via the SDI-2 bus.
- 4 Onboard Relay Outputs — Expandable to up to 12 outputs using compatible B308 modules.
- STAY / AWAY Arming — Provides flexible arming options for full or perimeter protection.
- Remote Management — Compatible with the Bosch RSC+ app for supported remote alarm control and monitoring.
- Flexible Communication — Supports communication options including CID, SIA, Email and CSV-IP when used with compatible Bosch communication modules.
- NBN / Fibre Ready — Ethernet communication can be provided using a compatible B426-M Ethernet module.
- Event History — Stores up to 256 events for system monitoring and review.
- 3-Year Warranty — Includes three years of Bosch support.
Technical Specifications
| Specification | Details |
|---|---|
| Model | ICP-SOL3-P |
| SKU | BOSICP-SOL3-P |
| System | Bosch Solution 3000 |
| Product Type | Intrusion Alarm Control PCB |
| Maximum Zones / Inputs | Up to 16 |
| Partitions | 2 independently controlled areas |
| User Capacity | 1 installer code + up to 32 active codes / RF devices |
| Wireless Interface | WE800EV2 or B810 RADION receiver |
| Keypad Support | Up to 4 keypads |
| Onboard Outputs | 4 relay outputs |
| Expandable Outputs | Up to 12 with B308 modules |
| Backup Power | 12V DC; supports up to 6.5Ah sealed lead-acid battery |
| Primary Power | TF008 plug pack |
| Event History | 256 events |
| Operating Temperature | 0°C to +45°C |
| Operating Humidity | 10%–95%, non-condensing |
| Certifications | RCM Australia, Telepermit NZ, AS/CA S002:2010 |
| Barcode | 8717332932672 |
| Warranty | 3 Years |
Wireless & Remote Control
The Solution 3000 ICP-SOL3-P can integrate with compatible Bosch wireless devices through supported receivers, providing additional flexibility for installations where running new cabling may not be practical.
For remote system management, compatible communication modules can enable features such as alarm event reporting, remote diagnostics and RSC+ mobile control, depending on the system configuration.
Flexible Alarm Partitioning
With support for two independently controlled partitions, the Solution 3000 can be configured to protect different areas of a property separately. This makes it suitable for homes with separate living areas, offices with restricted zones, or small commercial premises requiring different security settings.
Ideal Applications
The Bosch Solution 3000 Alarm Control PCB is suitable for:
- Residential homes
- Apartments
- Offices
- Retail stores
- Small businesses
- Light commercial properties
- Rental and shared properties
- Alarm system upgrades
- New wired and wireless security installations
Reliable Bosch Solution 3000 Control Panel
The Bosch ICP-SOL3-P combines 16 programmable zones, two partitions, wireless support, four onboard relay outputs and flexible communication options in a scalable alarm control platform.
Available from UR Data and Electrical with a 3-year warranty.
