TP-Link Omada EAP725-Outdoor BE3600 Wi-Fi 7 Indoor/Outdoor Access Point
TP-Link Omada EAP725-Outdoor BE3600 Wi-Fi 7 Indoor/Outdoor Access Point is backordered and will ship as soon as it is back in stock.
Pickup available at 13/59 Paraweena Drive
Usually ready in 2 hours
Care information
Care information
To keep your CCTV, security and electrical equipment performing reliably, we recommend:
- Clean gently: Wipe lenses, sensors and housings with a soft, dry microfibre cloth. Avoid harsh chemicals and abrasive cleaners.
- Keep ventilated: Install recorders, switches and power supplies in a cool, dry, well-ventilated spot, and don’t block the vents.
- Protect from power surges: Use a surge protector or UPS where possible to safeguard your security system.
- Check connections regularly: Inspect cables, seals, mounting screws and connectors once or twice a year, especially after storms or extreme heat.
- Test your system: Check alarms, sensors and camera views regularly to make sure everything is working as it should.
Delivery and Shipping
Delivery and Shipping
Orders are processed within 1 business day. Free standard shipping applies to orders of $300 or more within the metropolitan area (2-5 business days). Express shipping is available at checkout. For full delivery, shipping and returns details, see our Shipping Policy.
TP-Link Omada EAP725-Outdoor BE3600 Wi-Fi 7 Indoor/Outdoor Access P...
TP-Link Omada EAP725-Outdoor BE3600 Wi-Fi 7 Indoor/Outdoor Access Point is backordered and will ship as soon as it is back in stock.
Description
Description
TP-Link Omada EAP725-Outdoor BE3600 Wi-Fi 7 Indoor/Outdoor Access Point
The TP-Link Omada EAP725-Outdoor is a high-performance BE3600 Wi-Fi 7 access point designed for reliable wireless connectivity in both indoor and outdoor environments. With dual-band Wi-Fi 7, switchable directional and omnidirectional antenna modes, and a 2.5Gbps Ethernet port, it provides flexible coverage for homes, businesses, hospitality venues, warehouses, campuses and outdoor areas.

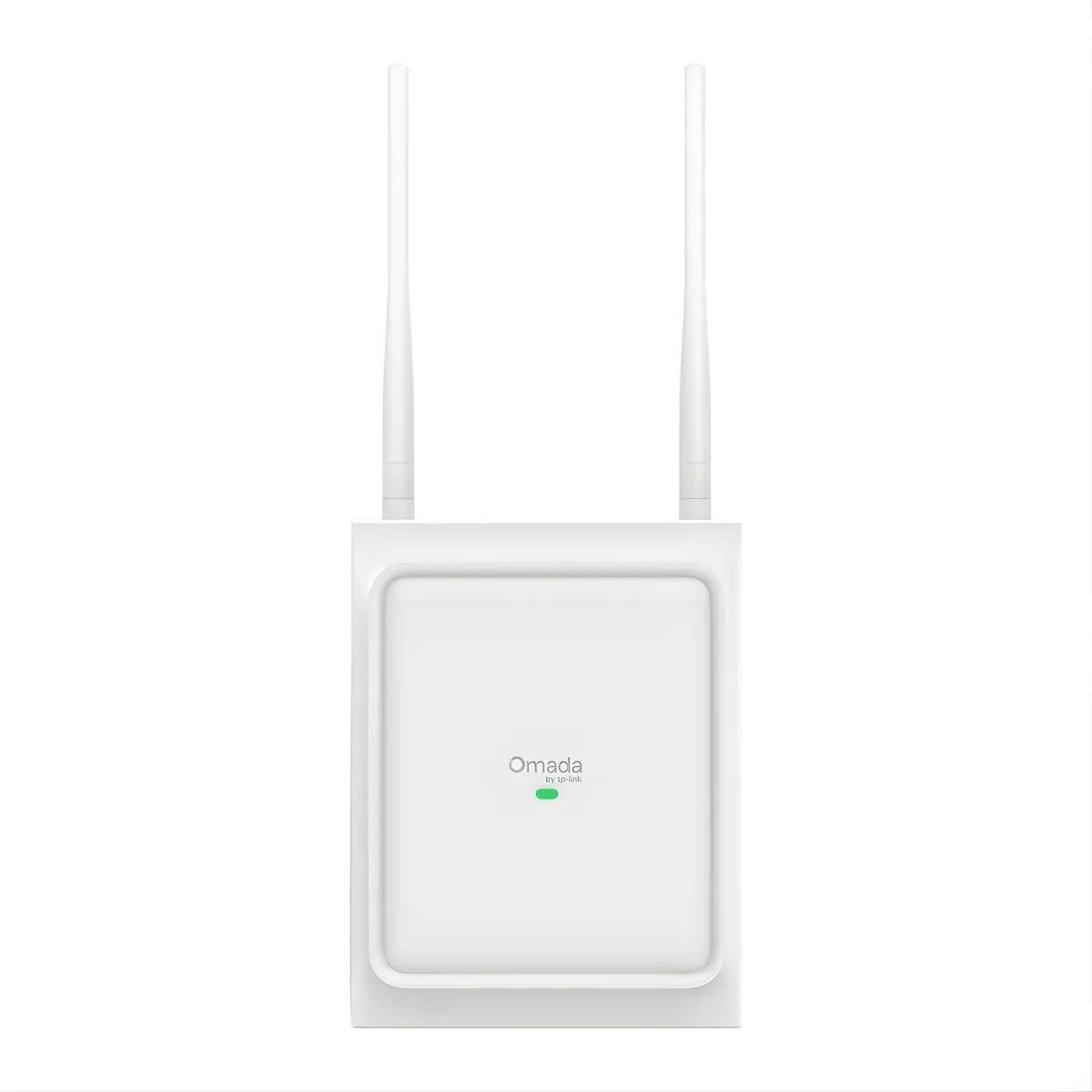

The EAP725-Outdoor features built-in directional antennas for focused coverage as well as detachable external omnidirectional antennas for wider-area coverage. It can automatically detect connected external antennas and adjust the coverage configuration, making deployment more flexible for different environments.
Powered via 802.3at PoE+, the access point carries both power and network data through a single Ethernet cable. Its IP66 weatherproof enclosure, 6kV lightning protection and wide operating temperature range make it suitable for demanding outdoor installations.
Key Features
- BE3600 Wi-Fi 7 Performance — Delivers combined wireless speeds of up to 3.6Gbps across the 2.4GHz and 5GHz bands.
- Switchable Antenna Modes — Use directional antennas for focused coverage or omnidirectional antennas for wider-area wireless coverage.
- Automatic Antenna Detection — Detects external omnidirectional antennas and automatically adjusts the coverage configuration.
- 4-Stream Wi-Fi 7 — Supports advanced Wi-Fi 7 technologies including 4K-QAM, OFDMA and Multi-Link Operation (MLO).
- 2.5Gbps Ethernet Port — Provides a high-speed wired connection for demanding wireless deployments.
- 802.3at PoE+ Powered — Simplifies installation by delivering network connectivity and power through one Ethernet cable.
- IP66 Weatherproof Design — Protects the access point against dust and water for reliable outdoor operation.
- Outdoor Protection — Includes 6kV lightning protection and a rugged design suitable for challenging environments.
- Omada Mesh & Seamless Roaming — Supports mesh networking and 802.11k/v/r roaming when used with a compatible Omada controller.
- Centralised Management — Manage and monitor the access point through Omada Cloud-Based, Hardware or Software Controllers.
- Flexible Mounting — Wall and pole mounting kits are included for convenient installation.
- Advanced Wireless Management — Includes band steering, load balancing, airtime fairness, beamforming, QoS, rate limiting and wireless scheduling.
- Secure Wireless Access — Supports WPA, WPA2 and WPA3 Personal/Enterprise, OWE, captive portal, client isolation, VLAN mapping and 802.1X.
Technical Specifications
| Specification | Details |
|---|---|
| Model | EAP725-Outdoor |
| Wi-Fi Standard | IEEE 802.11a/g/b/n/ac/ax/be |
| Wi-Fi Generation | Wi-Fi 7 |
| Wireless Class | BE3600 |
| Frequency Bands | 2.4GHz + 5GHz |
| Wireless Speed | 688Mbps (2.4GHz) + 2882Mbps (5GHz) |
| Ethernet | 1 × 10/100/1000/2500Mbps RJ45 |
| Power Supply | 802.3at PoE+ |
| Maximum Power Consumption | 18.4W |
| Antennas | Built-in directional + external omnidirectional antennas |
| 2.4GHz Antennas | 2 × 4.5dBi external omni + 2 × 8.3dBi internal directional |
| 5GHz Antennas | 2 × 5.3dBi external omni + 2 × 13.2dBi internal directional |
| Directional Beamwidth | 90° (2.4GHz) / 45° (5GHz) |
| Bluetooth | BLE 5.2 |
| Wireless Features | 4K-QAM, OFDMA, MLO, Omada Mesh, Seamless Roaming, Band Steering, Load Balance, Airtime Fairness, Beamforming |
| SSIDs | Up to 16 (8 per band) |
| Wireless Security | WPA/WPA2/WPA3 Personal & Enterprise, OWE, Captive Portal, 802.1X |
| Management | Omada App, Cloud, Hardware & Software Controllers |
| Management Features | SNMP, SSH, Syslog, Web Management, L3 Management, Multi-site Management, Management VLAN, ZTP |
| Weather Protection | IP66 |
| Mounting | Wall / Pole Mount |
| Dimensions | 208 × 160 × 55mm |
| Operating Temperature | -30°C to 70°C |
| Operating Humidity | 10%–90% RH, non-condensing |
| Weight | 1.33kg |
Coverage
The EAP725-Outdoor supports flexible wireless coverage using its selectable antenna configuration. Recommended coverage is approximately 300m² in omnidirectional mode and 510m² in directional mode, depending on the environment, installation position, interference and connected client devices.
Ideal For
- Outdoor Wi-Fi coverage
- Homes and large residential properties
- Commercial buildings
- Warehouses and industrial sites
- Hospitality and outdoor venues
- Schools and campuses
- Parks and recreational areas
- CCTV and IoT network deployments
- Point-focused or wide-area wireless coverage
Management & Networking
The EAP725-Outdoor can be centrally managed using the Omada Cloud-Based Controller, Omada Hardware Controller or Omada Software Controller. Advanced features include multi-site management, management VLAN, SNMP, SSH, Syslog, zero-touch provisioning and web-based management. Omada Mesh, seamless roaming and captive portal functions require a compatible Omada controller.
Package Contents
- 1 × TP-Link Omada EAP725-Outdoor Access Point
- Waterproof Kit
- Mounting Kit
- Installation Guide
Important: Actual wireless performance, coverage and client capacity can vary depending on building materials, interference, installation height, antenna configuration and client devices. The EAP725-Outdoor operates on 2.4GHz and 5GHz bands only; it does not provide a 6GHz radio.
