Ruijie Reyee RG-RAP72Pro BE5000 Wi-Fi 7 Dual-Band Ceiling Access Point | 5GbE

Ruijie Reyee RG-RAP72Pro BE5000 Wi-Fi 7 Dual-Band Ceiling Access Point | 5Gbps | 2.5G Ethernet

The Ruijie Reyee RG-RAP72Pro is a high-performance BE5000 Wi-Fi 7 dual-band ceiling access point designed for modern indoor networks that require fast wireless connectivity, high client capacity and efficient network management. With a combined theoretical wireless data rate of up to 5011 Mbps, it provides high-speed connectivity across the 2.4GHz and 5GHz bands.

Built around the latest Wi-Fi 7 technology, the RG-RAP72Pro supports advanced features such as Multi-Link Operation (MLO) and 4K-QAM to improve wireless efficiency and throughput with compatible client devices. Its 2.5GbE port provides a high-speed wired uplink, while an additional Gigabit Ethernet port offers flexible network connectivity.

The access point supports DC power and PoE/PoE+ input, making installation easier where Ethernet-based power delivery is preferred. With Ruijie Cloud management, the RG-RAP72Pro can be integrated into centrally managed wireless networks for simplified configuration, monitoring and maintenance.

Key Features

• BE5000 Wi-Fi 7 Performance — Delivers combined theoretical wireless speeds of up to 5011 Mbps across the 2.4GHz and 5GHz bands.

• Dual-Band Wi-Fi 7 — Provides 688 Mbps on 2.4GHz and up to 4323 Mbps on 5GHz.

• Multi-Link Operation (MLO) — Wi-Fi 7 MLO technology helps compatible devices use multiple wireless links for improved efficiency and connection performance.

• 4K-QAM — Supports higher modulation efficiency for increased data throughput with compatible Wi-Fi 7 devices.

• 2.5GbE Uplink — Includes a 10/100/1000/2500BASE-T port for high-speed wired backhaul.

• Additional Gigabit Port — Provides a second 10/100/1000BASE-T network connection.

• 5 Spatial Streams — Uses 2×2 MU-MIMO on 2.4GHz and 3×3 MU-MIMO on 5GHz for efficient multi-device connectivity.

• PoE/PoE+ Power Support — Can receive power through a compatible PoE/PoE+ network connection or a DC power adapter.

• Ruijie Cloud Management — Supports centralised cloud-based network management for compatible deployments.

• High Client Capacity — Supports up to 64 clients on 2.4GHz, 511 on 5GHz and up to 511 clients with both bands enabled, according to the supplied specifications.

• Ceiling or Wall Mounting — Compact design suitable for discreet indoor installation.

• Compact White Housing — Designed to blend into modern office, retail, education and hospitality environments.

Technical Specifications

Wireless Performance

The RG-RAP72Pro provides dual-band Wi-Fi 7 connectivity with a combined theoretical data rate of up to 5011 Mbps:

• 2.4GHz: Up to 688 Mbps

• 5GHz: Up to 4323 Mbps

• Combined: Up to 5011 Mbps

Actual wireless speeds depend on client device capabilities, network configuration, interference, distance, building materials and other environmental conditions.

Wi-Fi 7 with MLO

Multi-Link Operation (MLO) is one of the key Wi-Fi 7 technologies supported by the RG-RAP72Pro. With compatible client devices, MLO can utilise multiple wireless links to improve connectivity efficiency, responsiveness and overall network performance.

The access point also supports 4K-QAM, which can increase data transmission efficiency when used with compatible Wi-Fi 7 devices.

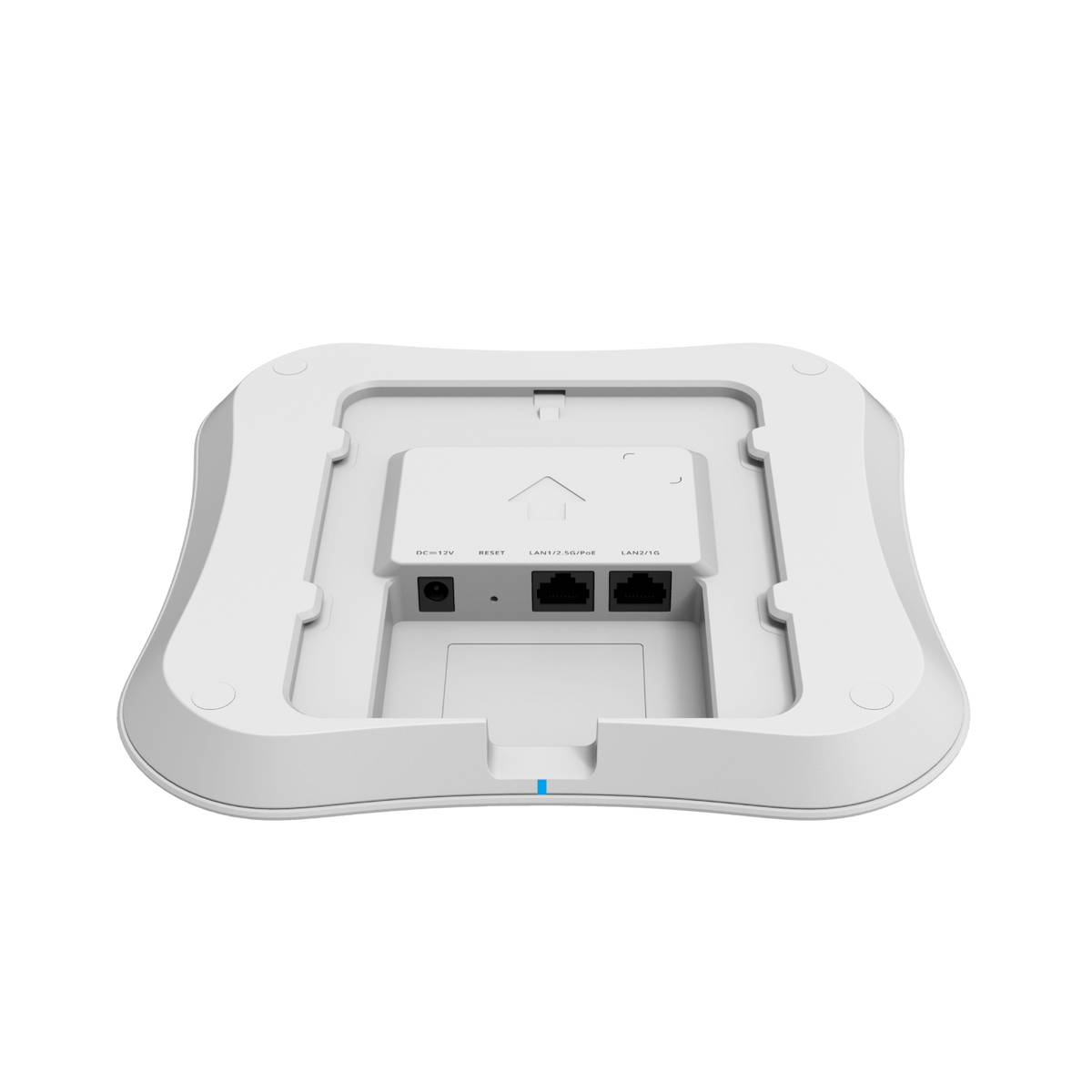

High-Speed Wired Connectivity

The RG-RAP72Pro includes both a 2.5GbE port and a Gigabit Ethernet port, providing greater flexibility when connecting the access point to network infrastructure.

The 2.5GbE connection is particularly useful for high-performance wireless deployments where a standard Gigabit uplink could become a throughput limitation.

Power Options

The RG-RAP72Pro can be powered using:

• PoE/PoE+

• 12V DC power adapter

The device does not have a 30W PoE output budget. The 30W figure refers to its maximum power consumption, while PoE/PoE+ is used to supply power to the access point.

Ruijie Cloud Management

The RG-RAP72Pro can be integrated into compatible Ruijie Cloud-managed networks, allowing administrators to simplify deployment, monitor network performance and manage supported access points remotely.

Ideal For

The RG-RAP72Pro is suitable for:

• Business and office Wi-Fi networks

• Schools and education facilities

• Retail stores

• Hotels and hospitality venues

• High-density indoor wireless environments

• Modern homes requiring high-speed Wi-Fi

• Cloud-managed wireless networks

• Networks requiring a 2.5GbE wireless uplink

• Wi-Fi 7 deployments with compatible client devices

Important Notes

The quoted 5011 Mbps BE5000 speed is a theoretical combined wireless data rate, not the actual internet speed a single device will receive. Real-world performance depends on connected client devices, network infrastructure, interference and environmental conditions.

The 2.5GbE port requires compatible 2.5GbE network equipment and cabling to operate above standard Gigabit Ethernet speeds.
